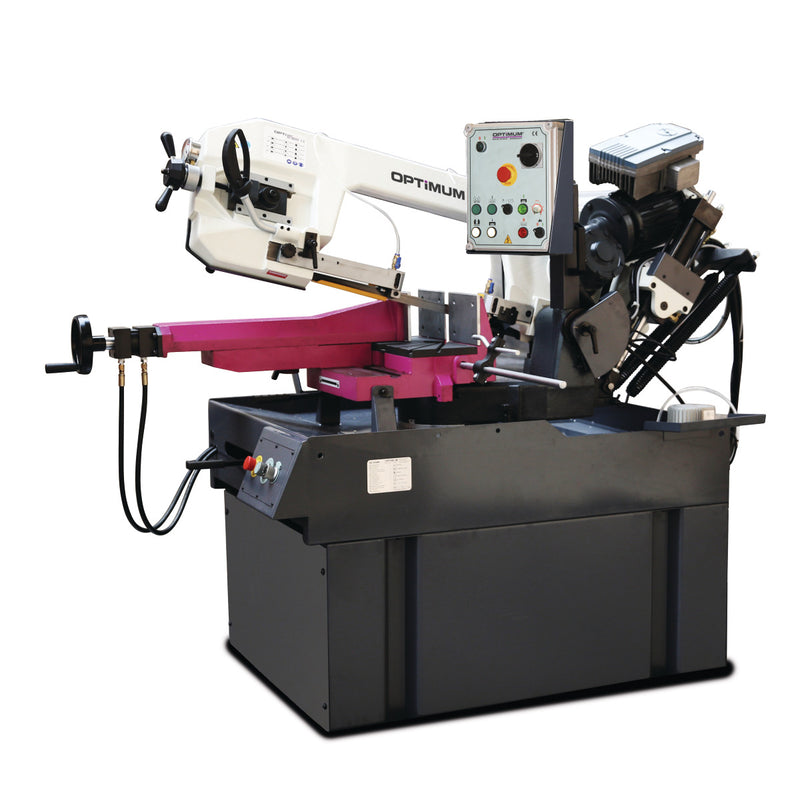

Optimum (3290360) Double mitre metal band saw OPTIsaw SD 351AV

Description

• Heavy industrial version
• Quiet running
• Manual or semi-automatic operation
• Steplessly adjustable saw blade speed from 0-80 m/min.
• High cutting accuracy due to vibration-free running
• Mitration adjustment up to 60° by swivelling the entire saw bow
• Serially equipped with high-quality bi-metalSaw band
• End stops adjustable down to the degree
• Swarf brush
• Microswitch for automatic limit switch
• Roller support adjustable for long and heavy workpieces
• Coolant pump
• Ball bearing mounted Saw blade guide with carbide plates for optimum cutting results
• Easy adjustment of the lowering speed by means of feed control valve in the control panel
• Large dimensioned, hydraulic quick-clamping vice, self-closing, adjustable for large cross-sections
• Completely equipped machine; The user can work productively immediately after commissioning
• EMV class C2
• 2-channel safety chain with quick stop in case of emergency

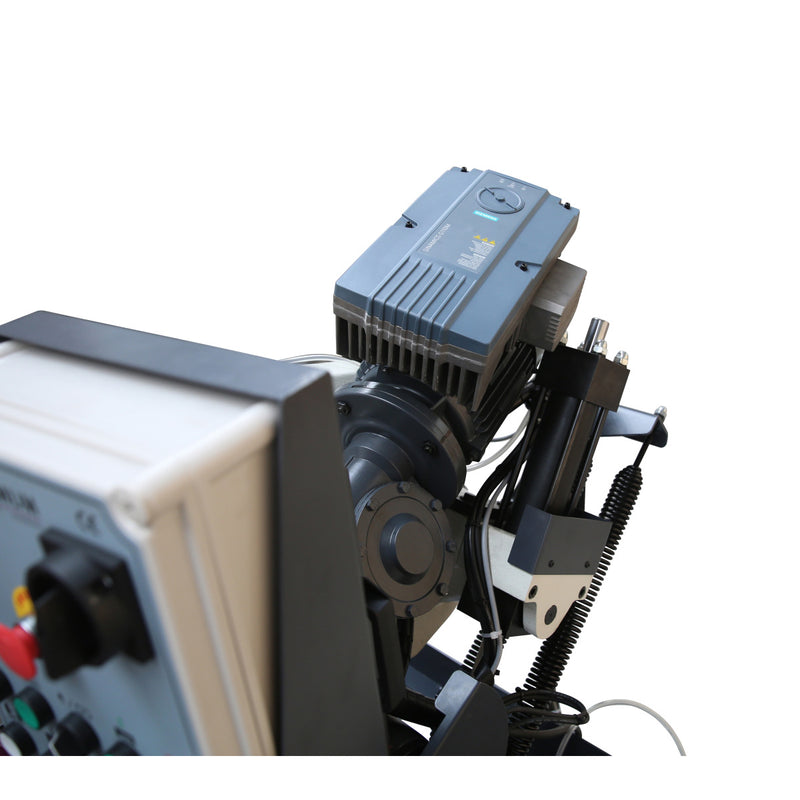

• Converter Siemens Sinamics G110M

Technical data

Dimensions and weights

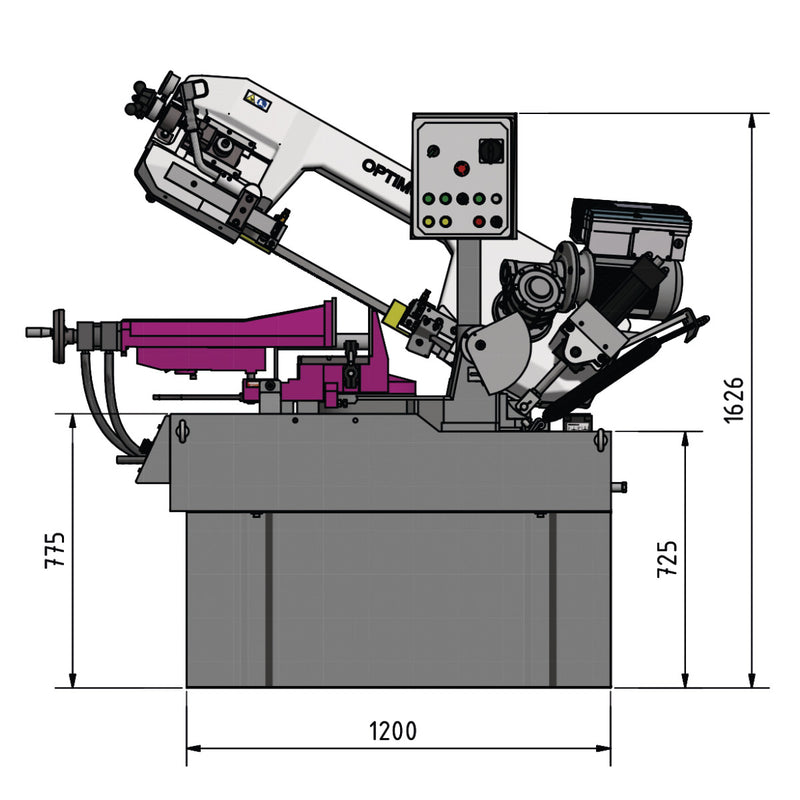

• Length (product) approx.: 1935 mm
• Width/depth (product) approx.: 1425 mm
• Height (product) approx.: 1626 mm
• Net weight approx.: 600 kg

Electrical Data

• Drive motor output: 2.2 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz
• Engine power hydraulic pump: 1,4 kW
• Engine power coolant pump: 50 W
• Total connected load: 3,8 kW

Machine data

• Saw band speed(s): 15 - 100 m/min
• Speed levels: infinitely variable
• Saw band length: 2925 mm
• Saw band width: 27 mm
• Saw band thickness: 0,9 mm
• Cutting angle from to: -45 - 60 °
• Manual operation: hydraulic via push button
• Semi-automatic operation: automatic

Cutting ranges

• Cutting range 0° round (solid material): 270 mm
• Cutting range 0° square (solid material): 230 mm
• Cutting range 0° rectangular upright (solid material): 230x350 mm
• Cutting range -45° round (solid material): 230 mm
• Cutting range -45° square (solid material): 170 mm
• Cutting range -45° rectangular upright (solid material): 140x200 mm
• Cutting range +45° round (full material): 230 mm
• Cutting range +45° square (solid material): 200 mm
• Cutting range +45° rectangular upright (solid material): 210x220 mm
• Cutting range +60° round (solid material): 140 mm
• Cutting range +60° square (solid material): 140 mm
• Cutting range +60° rectangular upright (solid material): 140x220 mm
• Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).

Delivery content

• Material stop
• Bi-metal saw band 4-6 ZpZ M42
• Machine substructure
• Coolant pump

Transport info

• EAN: 4030635041334
• Customs number: 84615019
• Length: 950 mm
• Height: 1130 mm
• Width: 1960 mm
• Gross weight: 650 kg
• Net weight: 600 kg

Optional accessories

• Height-adjustable material stand MSR 10H
• Height-adjustable material stand MSR 4H
• Height-adjustable material stand MSR 7H
• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Carrying rollers for material stands PVC rollers
• Connection plate
• Cutting and drilling emulsion OPTIlub 3.9
• Cutting and length measuring system LMS 1M (1,300 mm)
• Cutting and length measuring system LMS 2M (2,300 mm)
• Length measuring system LMS 10
• Length measuring system LMS 20
• Length measuring system LMS 30
• Length measuring system LMS 40
• Leveling plate SE 2
• Saw band HSS Bi-Metal M 42, 2925x27x0.9 mm, 10 - 14 ZpZ, 0°
• Saw band HSS Bi-Metal M 42, 2925x27x0.9 mm, 4 - 6 ZpZ, 6 °
• Saw band HSS Bi-Metal M 42, 2925x27x0.9 mm, 5 - 8 ZpZ, 0 °
• Saw band HSS Bi-Metal M 42, 2925x27x0.9 mm, 6 - 10 ZpZ, 0 °
• Sawband set for metal band saws HSS 2,925x27x0.9 mm
• Table extension with alternating role MSR 1
