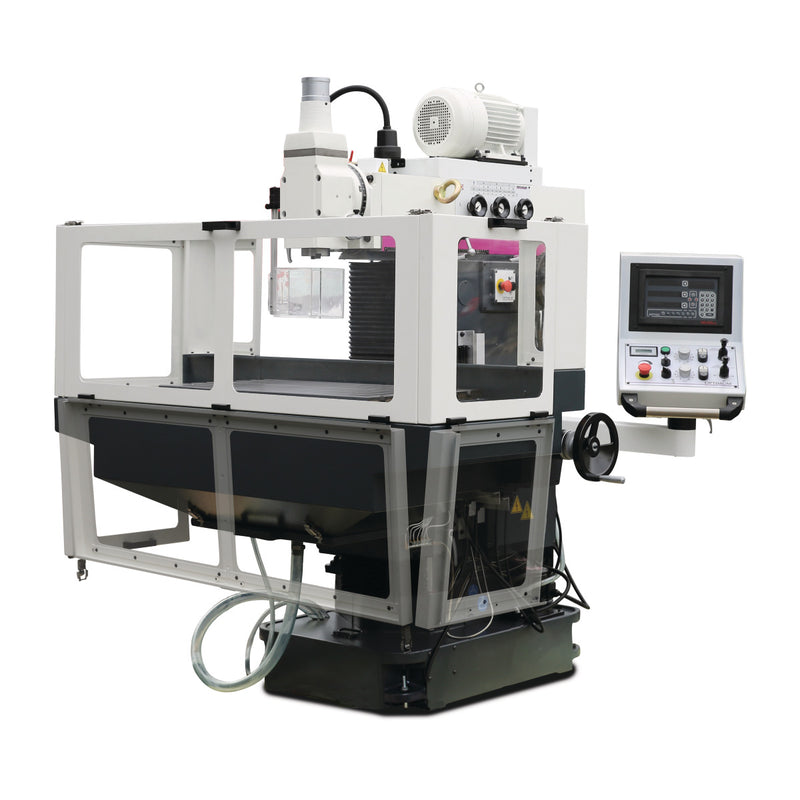

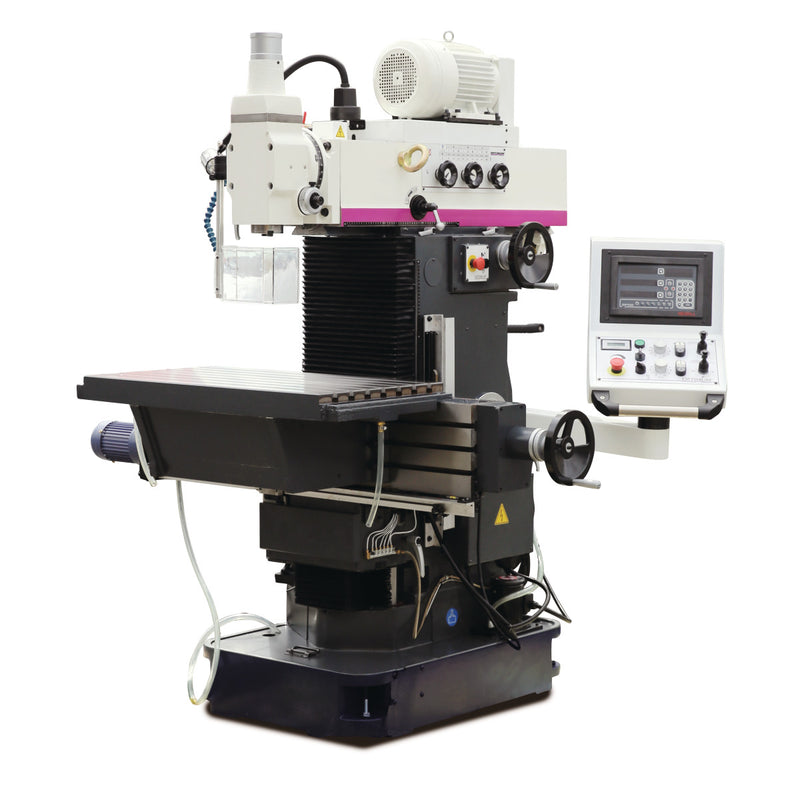

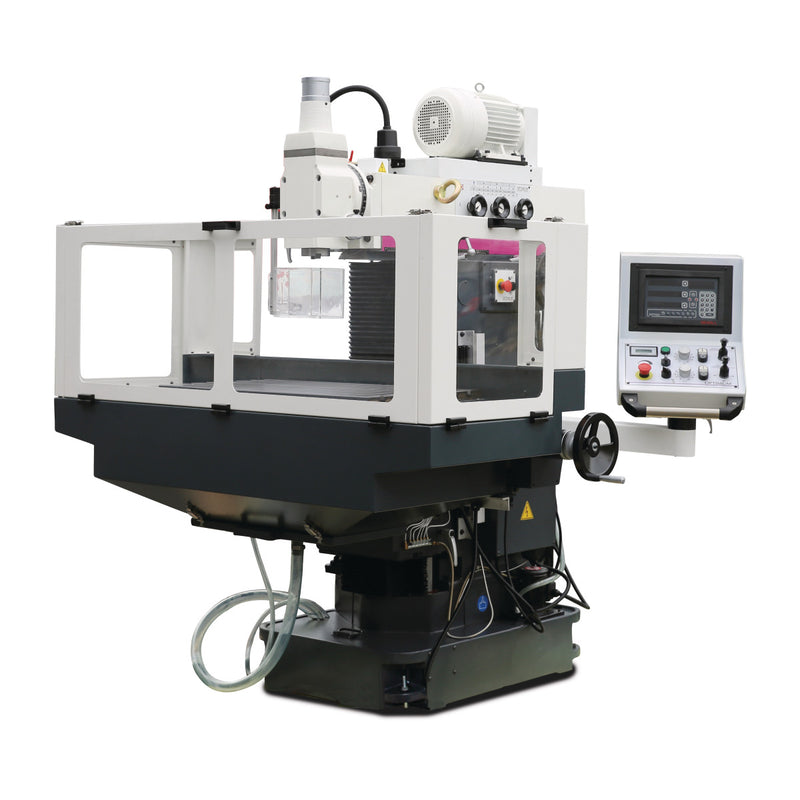

Optimum (3346245) Tool Milling Machine OPTImill MZ 4S

Description

• Many applications
• Excellent damping characteristics and stability of the machine frame
• All guideways hardened and precision ground and adjustable by wedge strips
• Automatic feed in X-, Y- and Z-axis, infinitely variable via an electronic joystick on the control panel
• Electrical feed end switch-off
• Ball screw in all axes

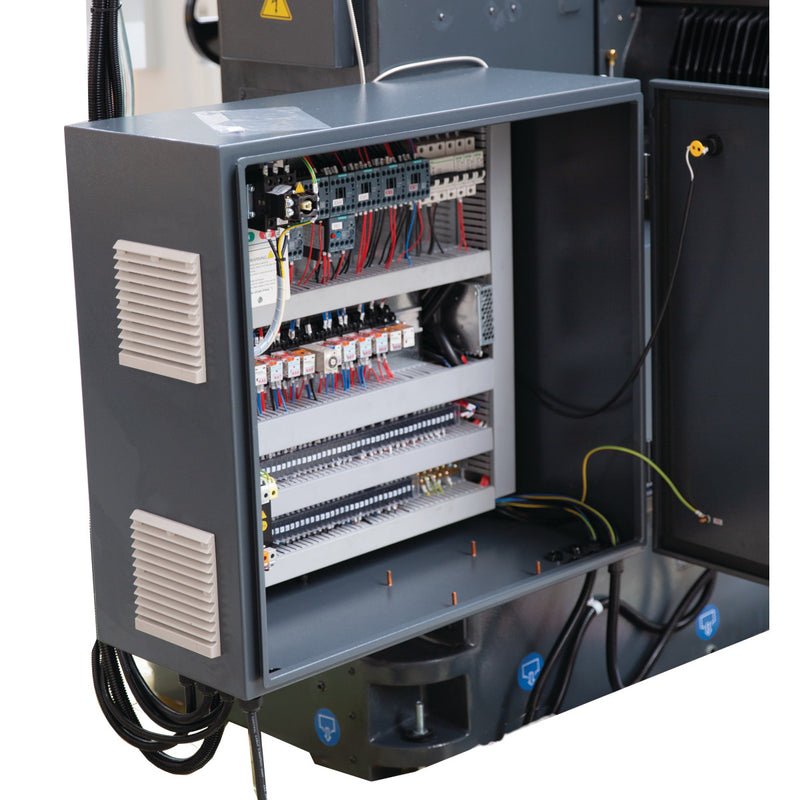

• Central and clearly arranged control panel with integrated digital position and speed display
• Massively cross table, Largely dimensioned and precisely surface-treated with 5 T-slots
• Coolant unit
• Largely dimensioned handwheels with scale
• Machine lamp
• Smooth running
• Automatic central lubrication

Technical data

Dimensions and weights

• Length (product) approx.: 1610 mm
• Width/depth (product) approx.: 1825 mm
• Height (product) approx.: 1885 mm
• Net weight approx.: 1890 kg

Equipment

• Digital position indicator: DP 700

Drilling/milling output

• Max. size of milling head: 100 mm
• Max. size of shaft cutter: 25 mm
• Drilling performance steel (S235JR): 32 mm
• Continuous drilling performance steel (S235JR): 28 mm

Electrical data

• Total rated value: 5,4 kW
• Drive motor power: 3,75 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Horizontal milling table

• Horizontal milling table length: 900 mm
• Horizontal milling table width: 500 mm
• Min. distance vertical spindle - horizontal milling table: 75 mm
• Max. clearance vertical spindle - horizontal milling table: 400 mm
• Horizontal milling table T-slot size: 14 mm
• Number of T-slots in horizontal milling table: 7
• Horizontal milling table T-slot spacing: 63 mm
• Min. distance horizontal spindle - horizontal milling table: 130 mm
• Max. distance horizontal spindle - horizontal milling table: 390 mm
• Max. load capacity of horizontal milling table: 360 kg

Vertical milling table

• Vertical milling table length: 1200 mm
• Vertical milling table width: 250 mm
• Vertical milling table T-slot size: 14 mm
• Number of T-slots in vertical milling table: 3
• Vertical milling table T-slot spacing: 63 mm

Coolant lubrication system

• Coolant pump(s) drive power: 95 W

Travel

• Manual X-axis travel: 600 mm
• Manual Y-axis travel: 480 mm
• Manual Z-axis travel: 390 mm
• Automatic X-axis travel: 510 mm
• Automatic Y-axis travel: 440 mm
• Automatic Z-axis travel: 345 mm

Vertical axis

• Vertical spindle reach: 185 mm
• Vertical spindle chuck: ISO 40 DIN 2080
• Vertical spindle speed range: 30 - 2550 min¯¹
• Rotation range of milling head vertical shaft Z-X: ± 90 °
• Number of vertical spindle gears: 18 passos
• Vertical spindle clamping bar: M 16
• Vertical spindle milling head travel: 120 mm

Feed speed

• X-axis feed rate: 10 - 600 mm/min
• Y-axis feed rate: 10 - 600 mm/min
• Z-axis feed rate: 10 - 600 mm/min

Motor(s)

• X-axis rapid traverse drive motor power: 0,75 kW
• Y-axis rapid traverse drive motor power: 0,75 kW
• Z-axis rapid traverse drive motor power: 0,75 kW

Delivery content

• Adapter ISO 40/MK3
• Adapter MK1 and MK 2
• Milling spindle horizontal milling Ø 27 mm
• Operating tool

Transport info

• EAN: 4030635041488
• Customs number: 84593900
• Length: 1730 mm
• Height: 2150 mm
• Width: 1940 mm
• Gross weight: 1580 kg
• Net weight: 1450 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Angle table 375x660 mm
• Boring Drill Bit Set Boring Drill Bit Set ISO 40
• Clamping tool kit SPW 12
• CNC hydraulic vice HCV 105
• CNC hydraulic vice HCV 125
• Collet chuck set ISO 40 / ER32 - M16 / BT40
• Collet set ER 32, Ø 3 - 20 mm
• Compressed air tool changer ISO 40 incl. mounting adapter and assembly costs
• Copy and face milling cutter Shaft ISO 40
• Cutting oil spray 400 ml
• Edge finder Diameter 10 mm
• End mill set HSS, 12-piece
• End mill set HSS, 20-piece
• Horizontal-vertical rotary indexing table RT 150
• Horizontal-vertical rotary indexing table RT 200
• Horizontal-vertical rotary indexing table with 3-jaw chuck RTE 165
• Horizontal-vertical rotary indexing table with 3-jaw chuck RTU 165
• Hydraulic machine vice HMS 125
• Hydraulic machine vice HMS 150
• Hydraulic machine vice HMS 200
• Hydraulic tensioning device DIN 69871
• Keyless drill chuck DKC13 0-13 mm
• Keyless drill chuck DKC16 0-16 mm
• Mandrel for drill chuck cone outside ISO 40 / M16 / B16
• Milling machine vise VMQ 100
• Milling machine vise VMQ 125
• Milling machine vise VMQ 150
• Milling set carbide, 18-piece
• Modular machine vice MVSP 150x200
• Modular machine vice MVSP 150x300
• Parallel spacer kit 20 parts
• Precision machine vice FMS 125
• Precision machine vice FMS 150
• Precision machine vice FMSN 125
• Precision machine vice FMSN 150
• Precision quick-action drill chuck 1-10 mm, B16
