Optimum (3462070) Guide and traction spindle Lathes OPTIturn TH 4215D

Description

• Hardened and ground Z-axis guideway
• Guaranteed concentricity of the spindle nose better than 0.015 mm
• Spindle holder Camlock DIN ISO 702-2 No. 6
• Lead screw cover
• Precisely machined slide
• All guides can be adjusted using wedge strips
• Right/left rotation on bed slide switchable via switching spindle

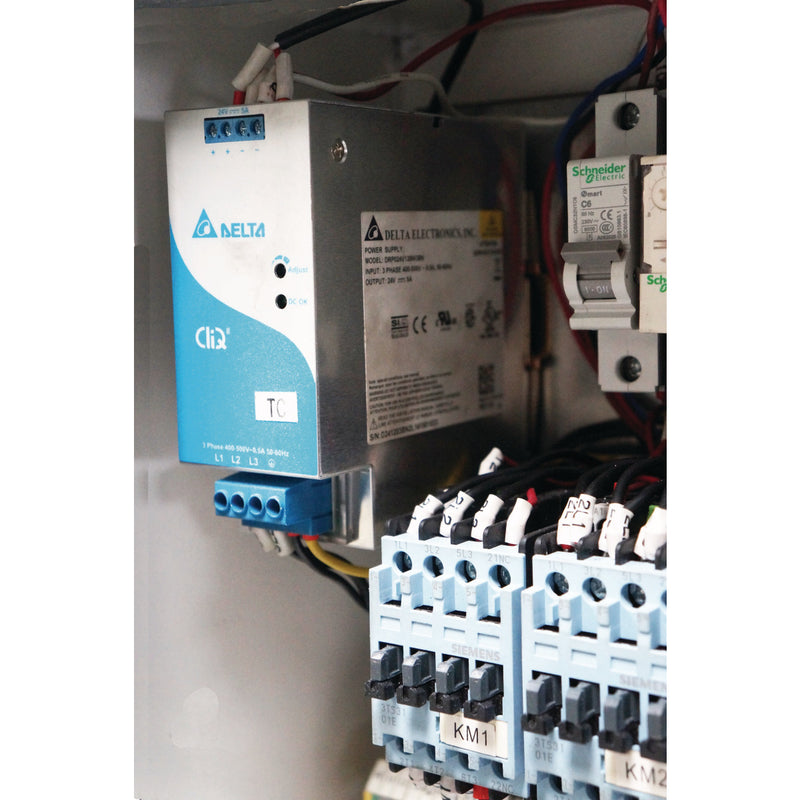

• Two-channel safety electronics
• Central lubrication in the bed slide
• Upper slide adjustment range ± 90
• Main spindle runs in oil bath
• Smooth-running gear wheels, hardened and ground with 2 adjustable precision tapered roller bearings
• Switch with life cycle calculation, tested in accordance with EN ISO 13849
• All metric pitches in the range from 0.2 to 14 mm/rev and all inch threads in the range from 72 - 2 threads per inch can be adjusted without replacing the change gears using the switch lever in the control panel
• Handwheels with adjustable fine scaling 0.04 / 0.02 mm
• Safety handwheels with disengagement function according to EN23125 in the X- and Z-axis
• Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
• Coolant system with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
• Substructure and machine bed cast in one piece from Meehanite cast iron
• Emergency stop device with foot actuation
• Quadruple steel holder

Technical data

Dimensions and weights

• Length (product) approx.: 2440 mm
• Width/depth (product) approx.: 915 mm
• Height (product) approx.: 1375 mm
• Net weight approx.: 1340 kg

Work areas

• Max. height: 210 mm
• Max. width: 1500 mm
• Swing diameter above machine bed: 420 mm
• Swing diameter in bed bridge: 590 mm
• Swing diameter above planing slide: 250 mm
• Turning length in bed bridge: 260 mm
• Bed width: 250 mm

Equipment

• Digital position indicator: DPA 31 Plus

Speed range

• Number of gears: 16
• Speed range: 45 - 1800 min-1

Electrical Data

• Drive motor output: 4,5 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz
• Total rated value: 4.6 kW

Cooling lubricant system

• Cooling lubricant system coolant pump output: 100 W

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 6
• Spindle bore: 52 mm
• Tool holder max. chuck height: 20 mm
• Spindle cone: MT 6

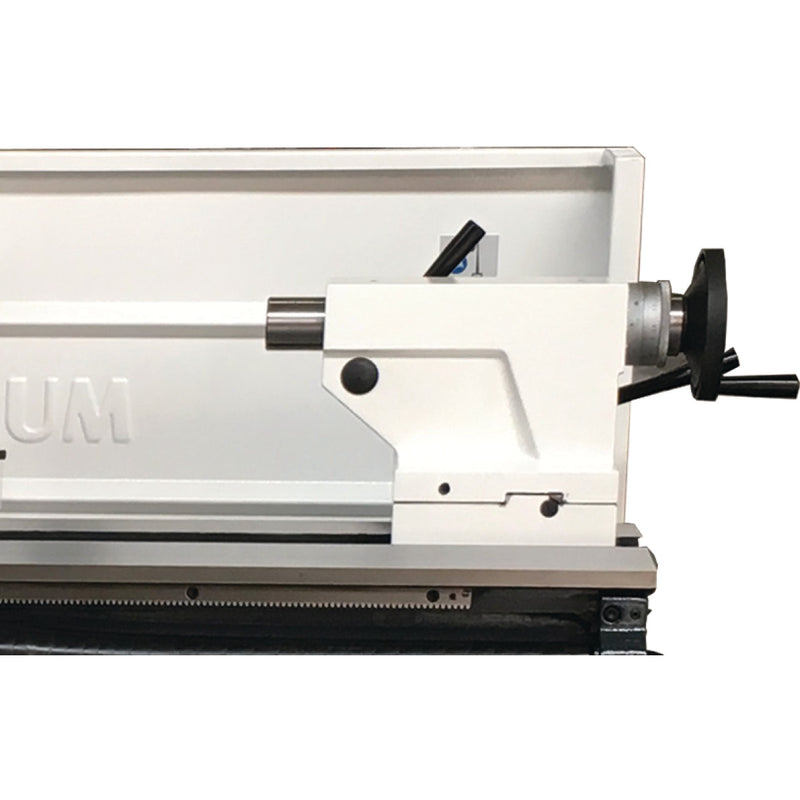

Tailstock

• Tailstock chuck: MT 4
• Tailstock quill stroke: 120 mm
• Tailstock quill diameter: 50 mm

Pitches

• Metric pitch: 0,2 - 14 mm/rev
• Number of metric pitches: 39
• Imperial pitch: 72 - 2 Gg/1"
• Number of imperial pitches: 45
• Diametrical pitch: 8 - 44
• Number of diametrical pitches: 21
• Modular thread pitch: 0,3 - 3,5 mm/rev
• Number of modular thread pitches: 18

Travel

• Travel upper slide: 140 mm
• Travel cross slide: 230 mm
• Travel carriage saddle: 1280 mm

Feed

• Longitudinal feed range: 0,05 - 1,7 mm/rev
• Number of longitudinal feeds: 17
• Flat feed range: 0,025 - 0,85 mm/rev
• Number of flat feeds: 17

Delivery content

• Fixed bezel passage Ø 15 - 145 mm
• Running bezel passage Ø 10 - 75 mm
• LED machine light
• Reduction sleeve MK 6 / MK 4
• Fixed centering point MK 4
• Change gear set
• Position stop with fine adjustment
• Initial machine filling with quality oil
• operating tool

Transport info

• EAN: 4030635033148
• Customs number: 84581900
• Length: 2600 mm
• Height: 1650 mm
• Width: 900 mm
• Gross weight: 1565 kg
• Net weight: 1340 kg
