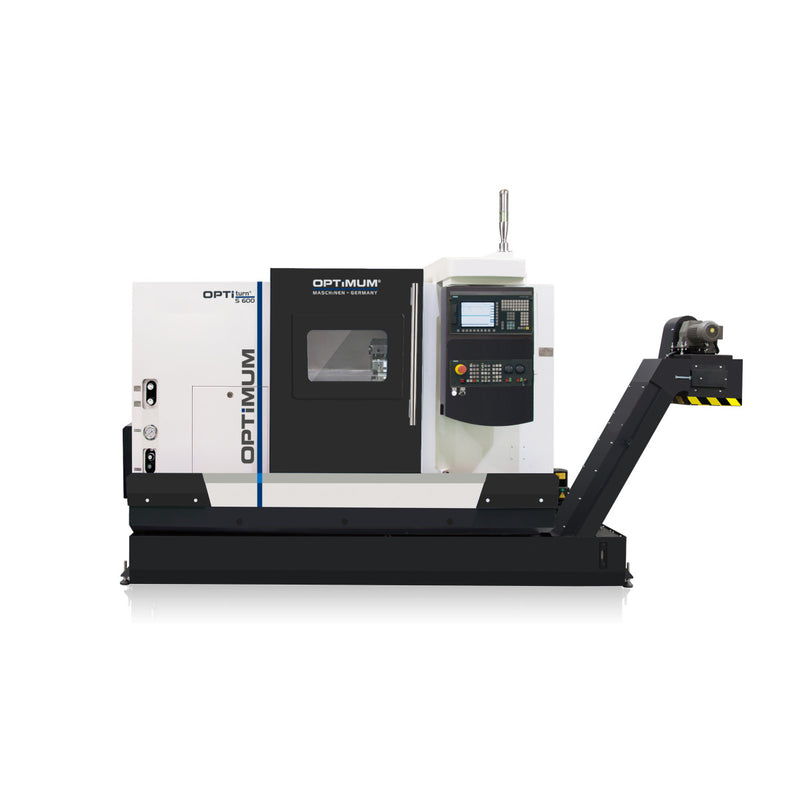

Optimum (3515180) CNC Lathe OPTIturn S 600

Description

• Heavy-duty design
• Compact design
• Siemens servo motors in all axes
• Renishaw measuring arm for manual tool measurement
• All servomotors with integrated encoder for maximum accuracy

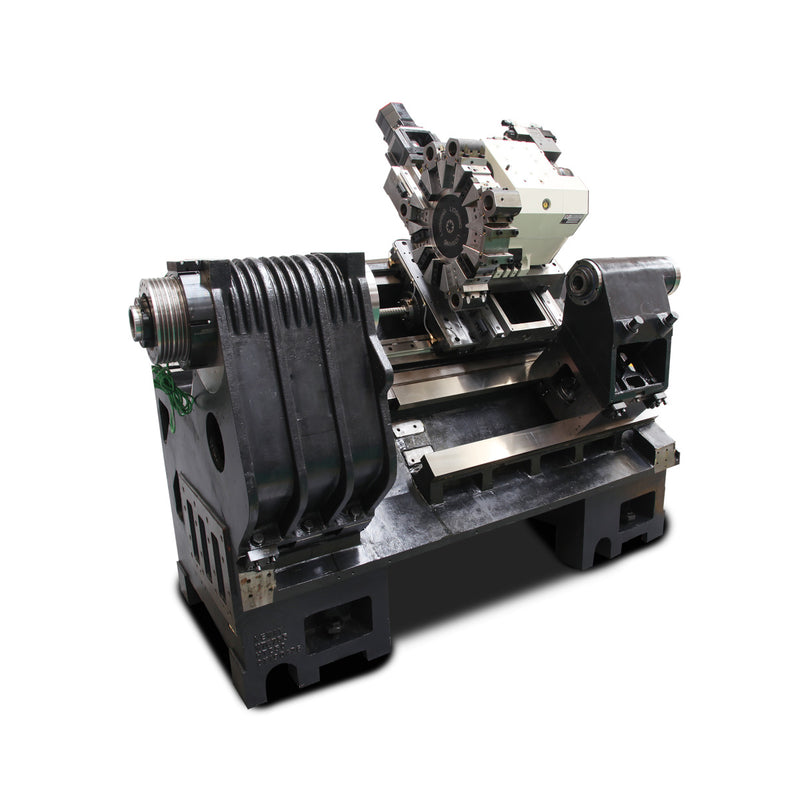

• 45° inclined bed design for particularly large machining diameters
• Better unhindered chip flow into the chip tray
• Sliding door easy to clean, no chip accumulation
• Swivel control: Convenient rotation to the optimum viewing position
• Convenient reading and setting of pressure gauge
• Access window at the front of the headstock: easy to maintain and repair
• Inspection window: easy inspection of hydraulics and pneumatics.
• MPG with magnet: Attaches to any metal surface
• Renishaw measuring arm for manual tool measurement
• Hydraulic three-jaw lathe chuck Ø 200 mm
• Hydraulic VDI 40 standard tool changer with 12 tool positions
• Hardened and precision-ground ball screws for high rapid traverse speeds in all axes
• Dimensionally stable linear guides ensure a long service life thanks to maximum static and dynamic rigidity Tailstock with hydraulic quill
• Heat exchanger
• Portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
• Belt-type chip conveyor ensures efficient chip removal
• Chip trolley
• Work light for complete illumination of the work area
• Coolant device
• EMC (electromagnetic compatibility)
• Additional package SIEMENS material defect liability and free online/on-site service OSS Plus see "Additional package SIEMENS OSS Plus"
• 1 year maintenance contract Basic included in D/A/CH

Technical data

Dimensions and weights

• Length (product) approx.: 4050 mm
• Width/depth (product) approx.: 1870 mm
• Height (product) approx.: 2000 mm
• Net weight approx.: 3800 kg

Work areas

• Lathe chuck diameter: 320 mm
• Turning length: 550 mm
• Swing diameter above machine bed: 550 mm
• Swing diameter above planing slide: 370 mm

Motor torque

• X axis motor torque: 12 Nm
• Z axis motor torque: 12 Nm

Speed range

• Speed range: 30 - 4000 min¯¹

Fast motion speed

• Rapid traverse Speed X-axis: 30 m/min
• Rapid traverse Speed Z-axis: 36 m/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Precision

• Repetition accuracy: ± 0.002
• Positioning accuracy: ± 0,003 mm

Hydraulic system

• Hydraulic system motor output: 1,5 kW
• Hydraulic system tank capacity: 20 l

Cooling lubricant system

• Cooling lubricant system coolant pump output: 0.55 kW
• Cooling lubricant system tank capacity: 240 l

Machine data

• Chuck passage diameter: 65 mm
• Angled bed: 45 °

Spindle

• Spindle chuck: DIN ISO 702-1 No. 6
• Spindle hydraulic lathe chuck: 200 mm
• Spindle taper: A2-6
• Main spindle bore: 76 mm

Tailstock

• Tailstock chuck: MT 4
• Tailstock quill stroke: 80 mm
• Tailstock quill diameter: 75 mm

Travel

• Travelxaxis: 240 mm
• Travel Z axis: 550 mm

Vertical spindle

• Vertical spindle drive motor output continuous operation S1: 11 kW
• Verticle spindle drive motor output S6-30 % operation: 14.3 kW
• Vertical spindle drive motor torque: 140 Nm
• Vertical spindle drive motor torque S6-30 % operation: 182 Nm

Feed force

• Feed force X-axis: 6,75 kN
• Feed force Z-axis: 5,652 kN

Turret

• Tool changer type: Hydraulic VDI 30
• Tool changer number of tool slots: 12

Electrical connections

• Total rated value: 30 kVA

Transport info

• EAN: 4030635048296
• Customs number: 84581180
• Length: 4000 mm
• Height: 2160 mm
• Width: 1920 mm
• Gross weight: 4300 kg
• Net weight: 3800 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Hard jaws 160 mm 3 pieces
• Soft jaws 160 mm 3 pieces
• Software DXF reader for SIEMENS SINUMERIK control systems
• Turning tool set 20 mm 6-piece

Equipment options

• Bar loader Fedek DH 65 1.25 m Ø 5 - 65 mm
• Bar loader Fedek DH 65L 1,5 m Ø 5 - 65 mm
• Bar loader Fedek GT 326 3 m Ø 3 - 26 mm
• Encoder Heidenhain ERM 2480 for OPTIturn S 600
• Klimaanlage
• Oil separator
• Parts catcher
• Preparation Bar feeder interface
• Spindle bore 56 mm with 5,000 rpm, 200 mm lathe chuck
• Spindle bore 62 mm with 5,000 rpm, 200 mm lathe chuck
• Spindle bore 92 mm with 3,000 rpm, 250 mm lathe chuck
• Werkzeuginnenkühlung External unit 10 bar
• Werkzeuginnenkühlung External unit 20 bar
