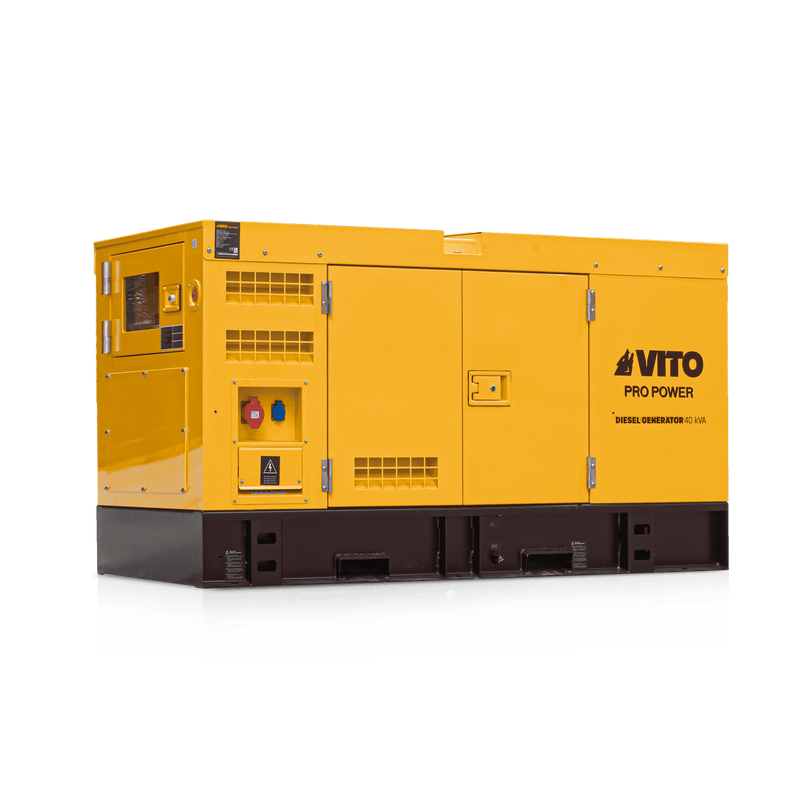

Vito (VIGD40ST) Super Silent Three-Phase Diesel Generator 40kva

Product Overview:

• Super Silent Three-Phase Diesel Generator with a maximum power of 40kVA, combining resistance, stability, reliability and a low noise level.
• Suitable for power supply in emergencies, homes, industry, construction and commerce.
• It has an emergency power (STP) of 44kVA/35.
• 2kW and 40kVA/32kW in continuous mode (PRP), with an output voltage of 230V AC 50Hz | 400V AC 50Hz.

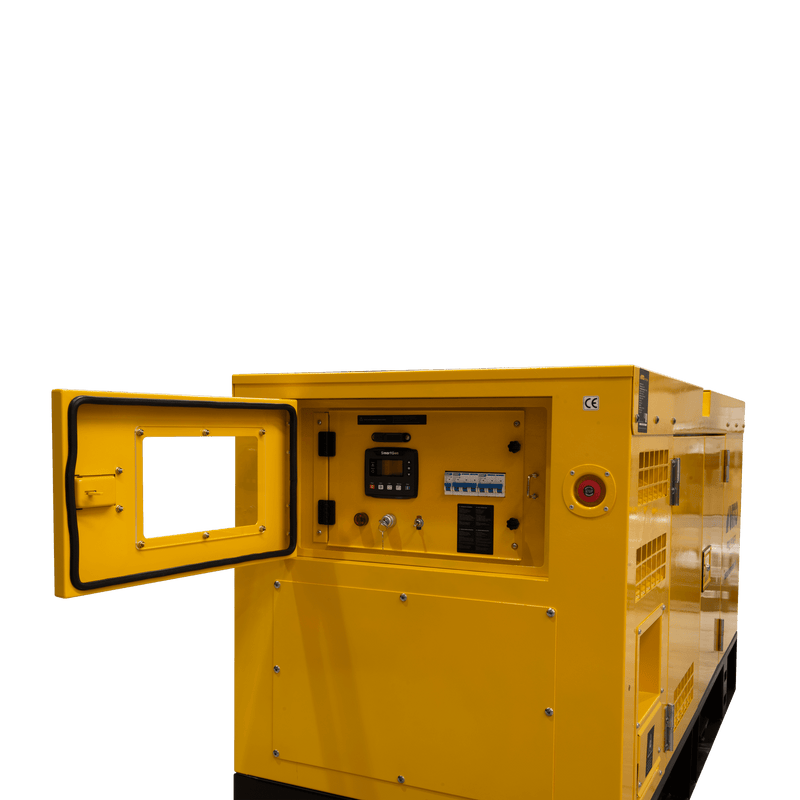

• This model includes an intuitive controller with various functions to facilitate the operation and maintenance of the generator.
• It also comes equipped with an automatic voltage regulator (AVR) and an electric start control system.
• The canopy is made from sheet steel, insulated with anti-noise and anti-fire material, painted in epoxy polyester with anti-corrosion treatment.
• It has interior linings to absorb noise, which makes this model super silent and also allows air to flow through to cool down the engine.
• The chassis is designed to allow the generator to be moved by a forklift and comes equipped with a 100L fuel tank.
• This generator can be connected to an ATS (Automatic Transfer Switch), so that when there is a fault/disruption in the electricity supply, it automatically switches on the generator to supply power.
• The ATS board also switches off the generator once the power is restored.
• More information available on datasheet (download bellow).

Technical Details:

• Autonomy: 10 H
• Dimensions: 2270 x 1000 x 1300 mm
• Engine displacement: 4.484 L
• Fuel: Diesel
• Output voltage: 230 V AC ~ 50 Hz 400 V AC ~ 50 Hz
• Power factor (cos Ø): 0.8 cos Ø
• Prime Power (PRP): 40 kVA / 32 kW
• Product weight: 1100 Kg
• Rated output current: 61 A
• Sound power level (LWA): 67 dB(A), k = 7
• Standby power (STP): 44 kVA / 35,2 kW
• Tank capacity: 100 L
