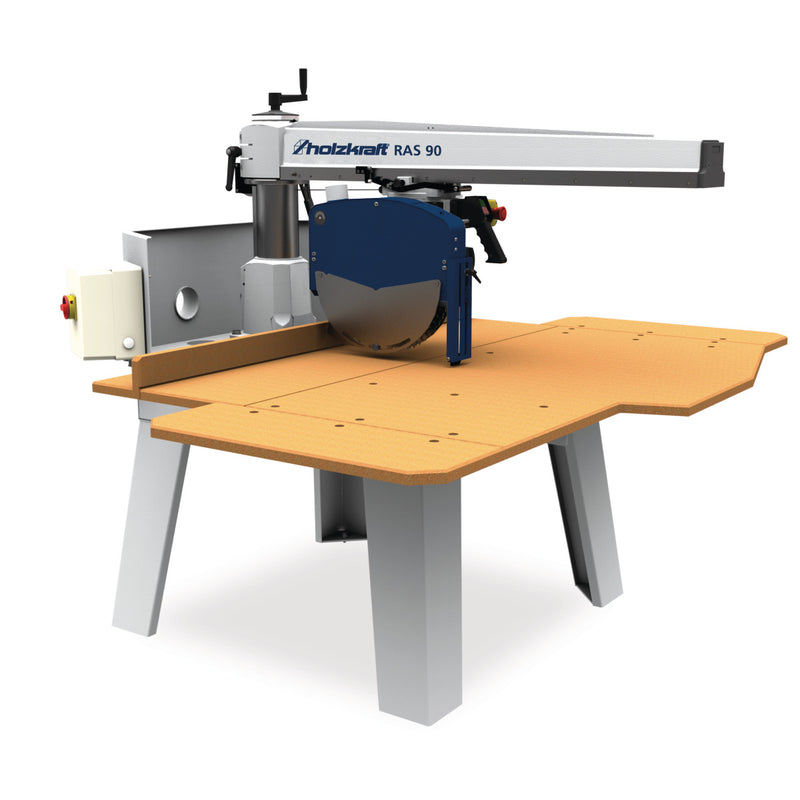

Holzstar (5650090) Radial arm saw RAS 90
SKU 5650090
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1970 mm |
| Width/depth (product) approx. | 1740 mm |
| Height (product) approx. | 1720 mm |
| Net weight approx. | 298 kg |
| Extraction port | |
| Saw blade protection extraction port diameter | 60 mm |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Drive motor output | 3 kW |
| Sliding carriage and table | |
| Table length | 1970 mm |
| Table width | 1285 mm |
| Work height | 800 mm |
| Noise emission | |
| Sound pressure level | 92 dB(A) |
| Sound power level | 88 dB(A) |
| Circular saw unit | |
| Saw blade angle | -45 ⌀ 0 ° |
| Swivel angle saw arm | -45 - 45 ° |
| Cutting capacity 45° | 350 x 125 mm |
| Cutting capacity -45° | 565 x 125 mm |
| Max. cross section | 865 x 20 mm |
| Max. cutting height 0°/45° | 125 / 80 mm |
| (Main) saw blade diameter | 400 mm |
| Diameter saw blade bore | 30 mm |
| (Main) saw blade speed | 2800 min¯¹ |
- Saw blade Widia 400 x 4.0 x 30 mm Z 60
- EAN: 4036351338697
- Custom Number: 84659120
- Comprimento: 1700 mm
- Altura: 1190 mm
- Largura: 1250 mm
- Peso Bruto: 368 kg
- Peso Líquido: 298
Request a quote
Estimated shipping time: 48-72 hours
