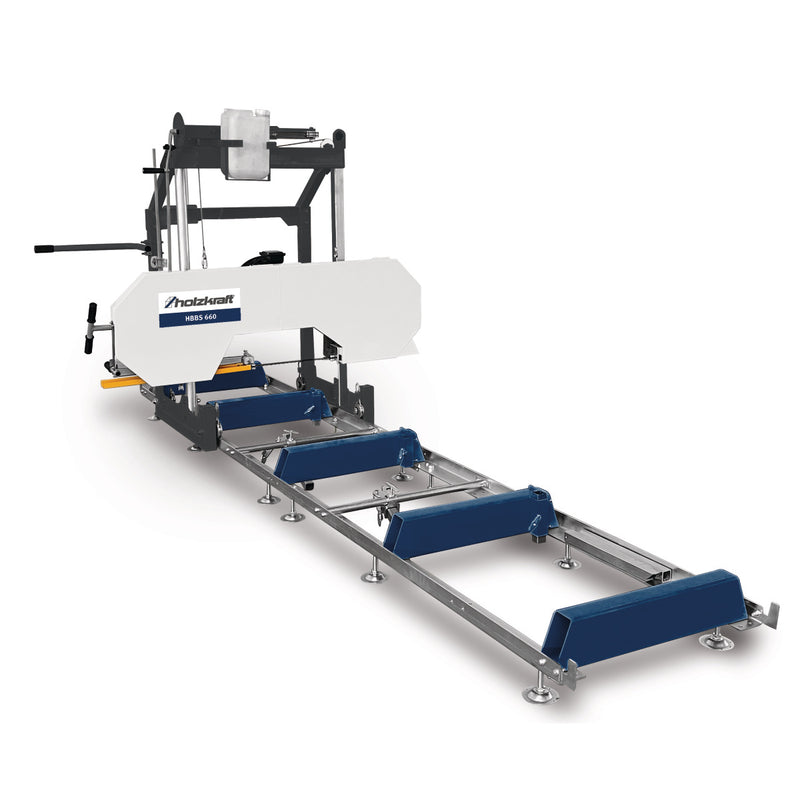

Holzstar (5670663) Log band saw HBBS 660

Name: Holzstar (5670663) Log band saw HBBS 660
Brand: Holzstar
SKU: 5670663
Price: 3691.29 EUR
Availability: InStock

SKU 5670663

€3.885,57

€3.885,57 - €3.885,57

€3.885,57

€3.691,29

€3.691,29 - €3.691,29

€3.691,29

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Product Overview:

Solid cast wheels driven by a 5.5 kW electric motor

Manual adjustment of the cutting height via hand crank

Robust and torsion-resistant steel construction

Simple operation with the aid of a manual saw feed

Safety switch integrated in the handle for safe operation

Stable clamping of the log thanks to adjustable tips

>Precise cuts thanks to adjustable saw blade guide

Low friction between saw blade and wood thanks to integrated blade lubrication

The side-mounted chip removal ensures a clean working area

Any cutting length thanks to bed extensions available as accessories

Suitable for softwood and hardwood

Dimensions and weights

Length (product) approx.	4000 mm
Width/depth (product) approx.	2150 mm
Height (product) approx.	2000 mm
Net weight approx.	330 kg


Equipment
Feed rate	manually
Drive type	electric
Material frame construction	Steel


Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz
Input power	5.5 kW


Noise emission
Sound power level	94,6 dB(A)


Cutting ranges
Max. trunk diameter	660 mm
Max. cutting width	530 mm
Cutting length max.	3200 mm
Passage over saw band	190 mm


Saw band
Saw band speed(s)	18 m/s
Flywheel diameter	475 mm
Saw band length	3650 mm
Saw band width	34 mm
Saw band thickness	1 mm

Estimated shipping time: 48-72 hours
