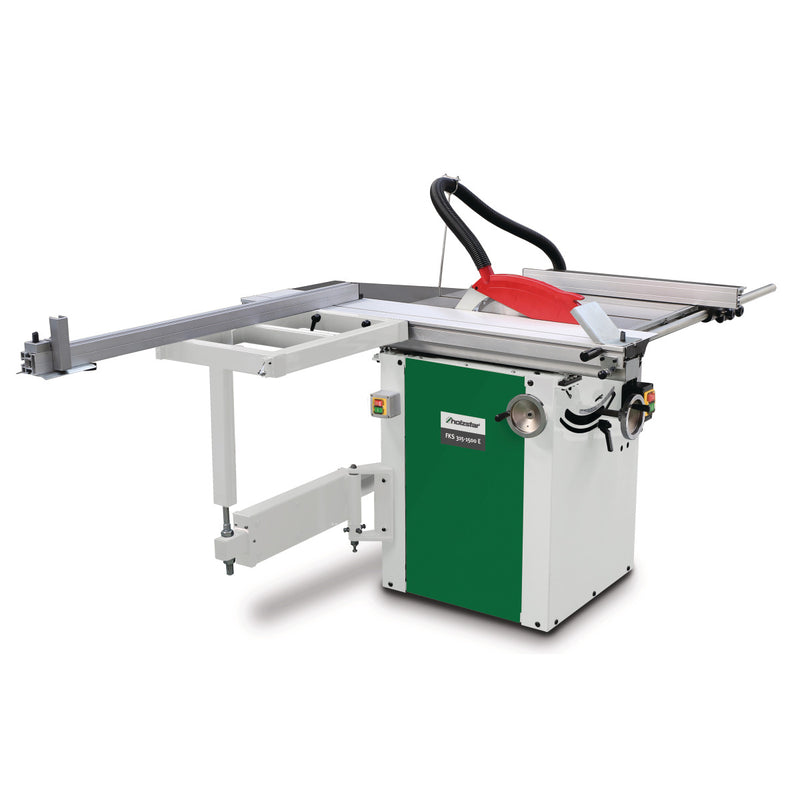

Holzstar (5900315) Sliding table saw FKS 315-1500 E

Name: Holzstar (5900315) Sliding table saw FKS 315-1500 E
Brand: Holzstar
SKU: 5900315
Price: 3504.33 EUR
Availability: InStock

SKU 5900315

€3.688,77

€3.688,77 - €3.688,77

€3.688,77

€3.504,33

€3.504,33 - €3.504,33

€3.504,33

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Product Overview:

Work table made of grey cast iron for low-vibration work

Saw unit swivels up to 45 degrees, adjustment via handwheel with scale

Telescopic stop can be swivelled by 45° on both sides and extendable

Saw blade height adjustable via handwheel

Cutting plane directly on the saw blade

Standard table widening and extension allow easy work with larger workpieces

Large aluminium parallel stop on round rod guide with fine adjustment

Large central suction connection with a diameter of 100 mm

Saw blade protection hood with suction nozzle diameter 38 mm

Dimensions and weights

Length (product) approx.	3480 mm
Width/depth (product) approx.	2430 mm
Height (product) approx.	1270 mm
Net weight approx.	202 kg


Extraction port
Extraction port diameter bottom	100 mm
Saw blade protection extraction port diameter	38 mm


Equipment
Table broadening	⌀
Table lengthening	350 x 500 mm
Saw blade cover	⌀


Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz
Absorbed power drive motor	3,0 kW
Delivery power	2,4 kW


Sliding carriage and table
Table length	760 mm
Table width	350 mm
Work height	870 mm


Circular saw unit
Max. cutting width with rip fence	940 mm
Trimming length	1370 mm
Saw blade angle	90 ⌀ 45 °
Max. cutting height 90°	100 mm
Max. cutting height 45°	75 mm
(Main) saw blade diameter	315 mm
(Main) saw blade speed	4250 min¯¹

Estimated shipping time: 48-72 hours
