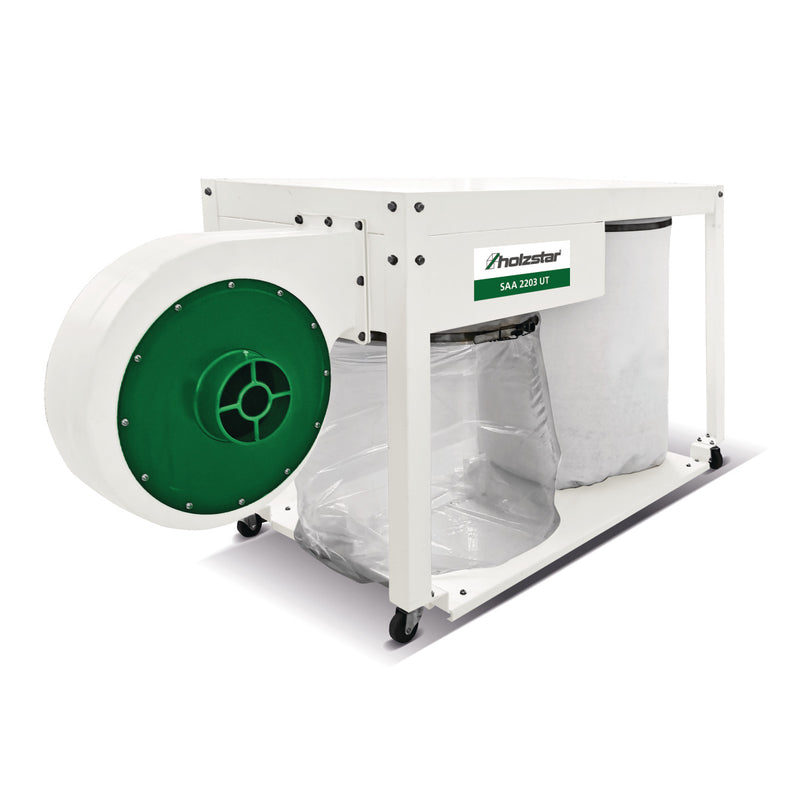

Holzstar (5922123) Chip extractor SAA 2203 UT

Name: Holzstar (5922123) Chip extractor SAA 2203 UT
Brand: Holzstar
SKU: 5922123
Price: 816.78 EUR
Availability: InStock

SKU 5922123

€859,77

€859,77 - €859,77

€859,77

€816,78

€816,78 - €816,78

€816,78

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Product Overview:

Ideal for e.g. positioning under the machine table thanks to its flat design

For extracting milling, planing and sawing chips

For a clean and healthy workplace in the workshop

Steel paddle fan wheel ensures constantly high extraction performance

Supplied with chassis as factory standard

Easy fastening of bags with tensioning straps

Dimensions and weights

Length (product) approx.	1540 mm
Width/depth (product) approx.	550 mm
Height (product) approx.	750 mm
Net weight approx.	50 kg
Extraction duct inlet outside nominal width	120 mm
Extraction duct outlet outside nominal width	1 x 120 mm
Connection diameter filter bag	500 mm


Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz
Motor input	2,2 kW
Motor output	1.65 kW


Noise emission
Max. sound performance level	96 dB(A)
Max. sound pressure level	89 dB(A)


Volume flow
Rated volume flow	2200 m³/h
Max. negative pressure	2200 Pa

Estimated shipping time: 48-72 hours
