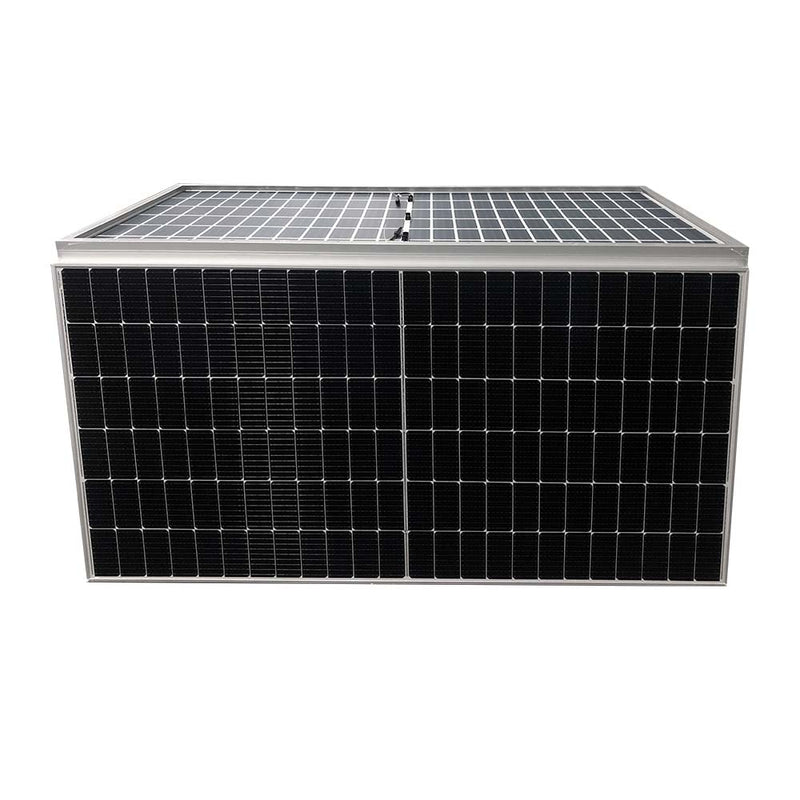

JBM (54062) 535w Solar Panel

Product Overview:

• Mechanical specifications
• Cell type: monocrystalline (p-type), 182x91mm
• Number of cells: 144 (6x24)
• Number of bus bars per photocell: 10 bus bars
• Glass: 3.2mm high transmission, anti-reflective coating
• Output cable (connector included): diameter: 4.0mm2
• Length: 300/400mm (customizable length).
• Junction box: ip68, 3 bypass diodes
• Connector: mc4 compatible
• Dimension: 2256x1133x35mm
• Weight: 28.5kg
• Operating specifications
• Maximum system voltage: 1000v/1500v dc
• Operating temperature: -40~+85°c
• Maximum series fuse rating: 25a
• Snow load, front side: 5400pa
• Wind load, rear side: 2400pa
• Nominal switchgear operating temperature: 45°c±2°c
• Application level: class a
• Stc electrical specifications (standard measurement conditiONS)
• Maximum power: 535w
• Open circuit voltage: 49.6v
• Maximum power voltage: 41.8v
• Short circuit current: 13.60a
• Maximum current rating: 12.80a
• Module efficiency: 20.93%.
• Electrical specifications noct (nominal cell operating tempERATURE)
• Maximum power: 398w
• Open circuit voltage: 46.5v
• Maximum power voltage: 39.2v
• Short circuit current: 10.99a
• Maximum current rating: 10.15a
• Packaging
• Pallet size: 2310x1115x1255mm
• Packaging: 31pcs/pallet, 620pcs/40hq
• Total weight (pallet + 31 solar panels): 910kg
