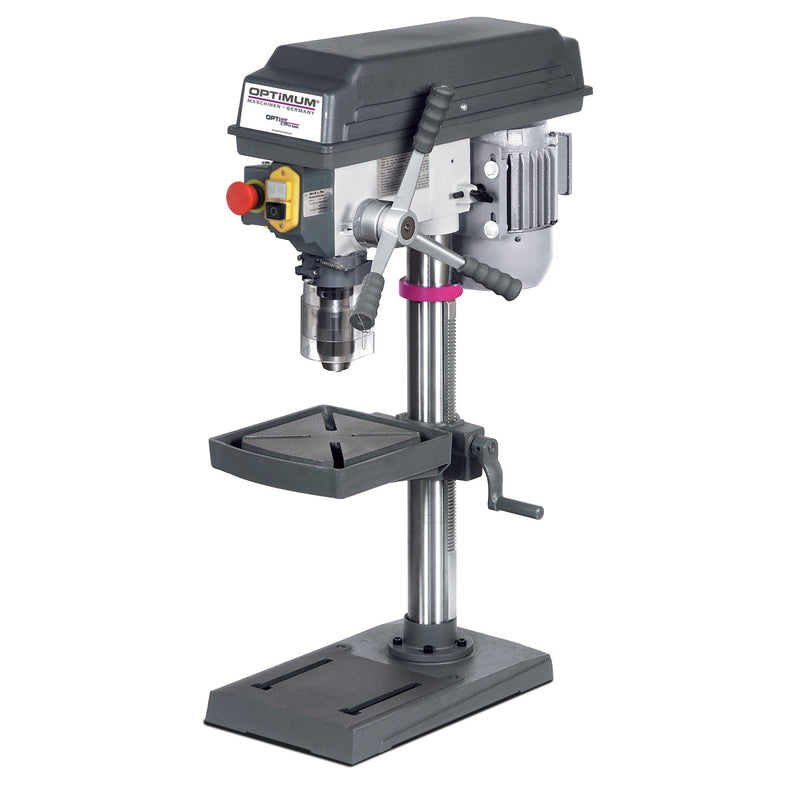

Optimum (3003161) Bench drill OPTIdrill B 17PRO basic
SKU 3003161
Original price
€650,67
Original price
€650,67
-
Original price
€650,67
Original price
€650,67
Current price
€618,14
€618,14
-
€618,14
Current price
€618,14
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 565 mm |
| Width/depth (product) approx. | 275 mm |
| Height (product) approx. | 840 mm |
| Net weight approx. | 36,5 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 15,5 mm |
| Continuous drilling performance steel (S235JR) | 12 mm |
| Drilling table | |
| Drilling table workspace length | 235 mm |
| Drilling table workspace width | 220 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 12 mm |
| Max. distance spindle - drilling table | 325 mm |
| Speed range | |

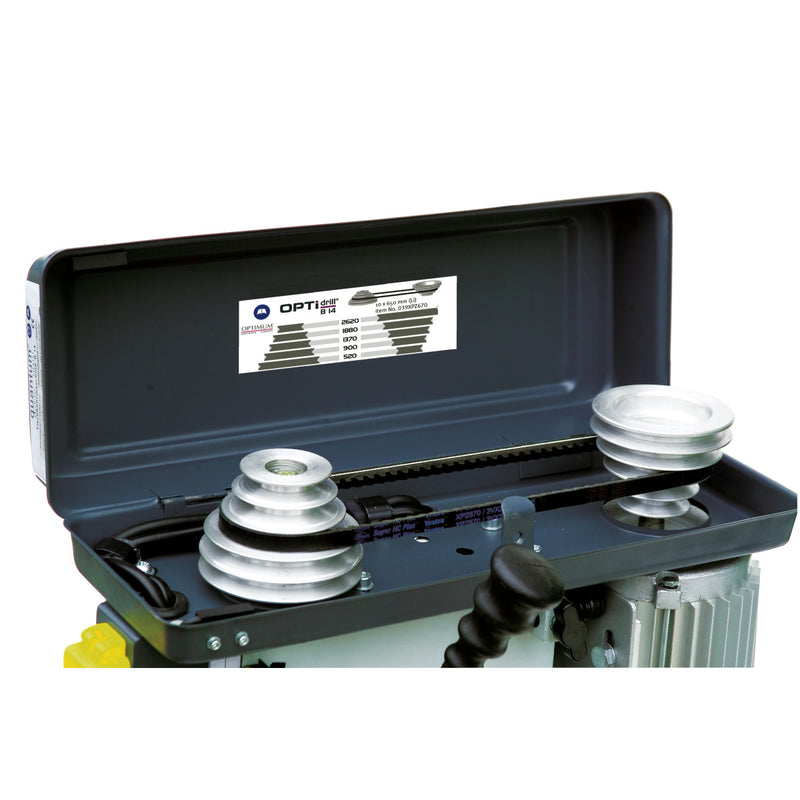

| Speed range | 680 - 2700 min¯¹ |
| Number of gears | 5 |
| Electrical Data | |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 530 mm |
| Machine base workspace length | 170 mm |
| Machine base workspace width | 180 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 148 mm |
| Machine base length | 210 mm |
| Machine base width | 215 mm |
| Spindle | |
| Quill stroke | 65 mm |
| Spindle chuck | MT 2 |
| Reach | 152 mm |
| Motor(s) | |
| Spindle motor drive output | 0.49 kW |
- Quick-action drill chuck 1 - 15,5 mm
- Morse taper MT 2/ (B 16)
- T-slot nuts
- EAN: 4030635040771
- Custom Number: 84592900
- Comprimento: 680 mm
- Altura: 290 mm
- Largura: 460 mm
- Peso Bruto: 41 kg
- Peso Líquido: 40
Estimated shipping time: 48-72 hours
