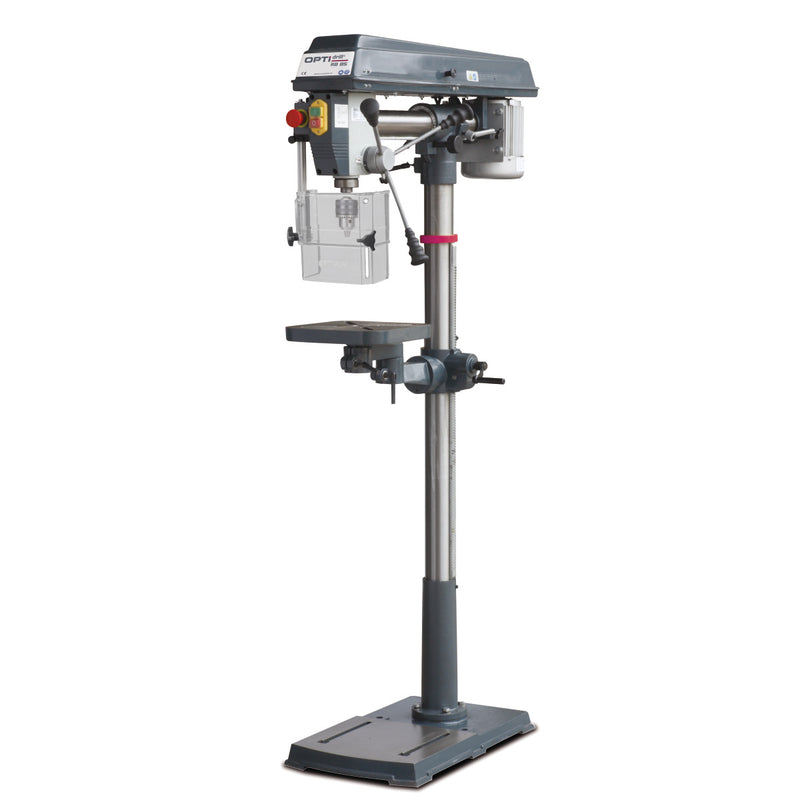

Optimum (3009181) Radial drill OPTIdrill RB 8S
SKU 3009181
Original price
€872,07
Original price
€872,07
-
Original price
€872,07
Original price
€872,07
Current price
€828,47
€828,47
-
€828,47
Current price
€828,47
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 820 mm |
| Column diameter | 70 mm |
| Width/depth (product) approx. | 395 mm |
| Height (product) approx. | 1640 mm |
| Net weight approx. | 60 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 16 mm |
| Continuous drilling performance steel (S235JR) | 12 mm |
| Drilling table | |
| Drilling table workspace length | 262 mm |
| Drilling table workspace width | 262 mm |
| Drilling table T-groove size | 14 mm |

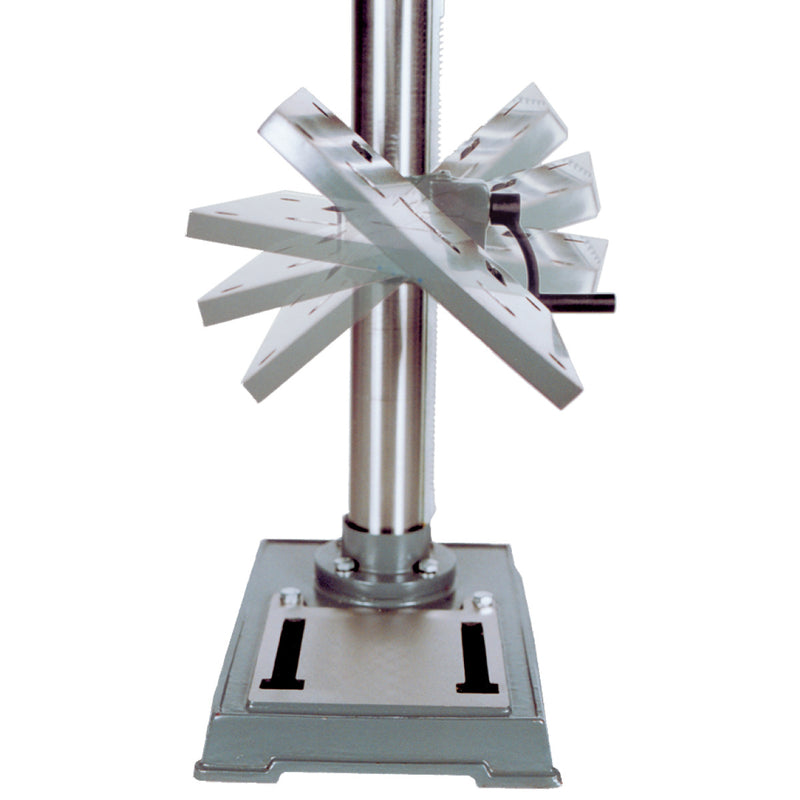

| Drilling table angle | 45 ° |
| Max. distance spindle - drilling table | 740 mm |
| Speed range | |
| Speed range | 390 - 3000 min¯¹ |
| Number of gears | 5 Steps |
| Electrical Data | |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1250 mm |
| Machine base workspace length | 600 mm |
| Machine base workspace width | 350 mm |
| Machine base T-groove size | 14 mm |
| Spindle | |
| Quill stroke | 80 mm |
| Spindle chuck | MT 2 |

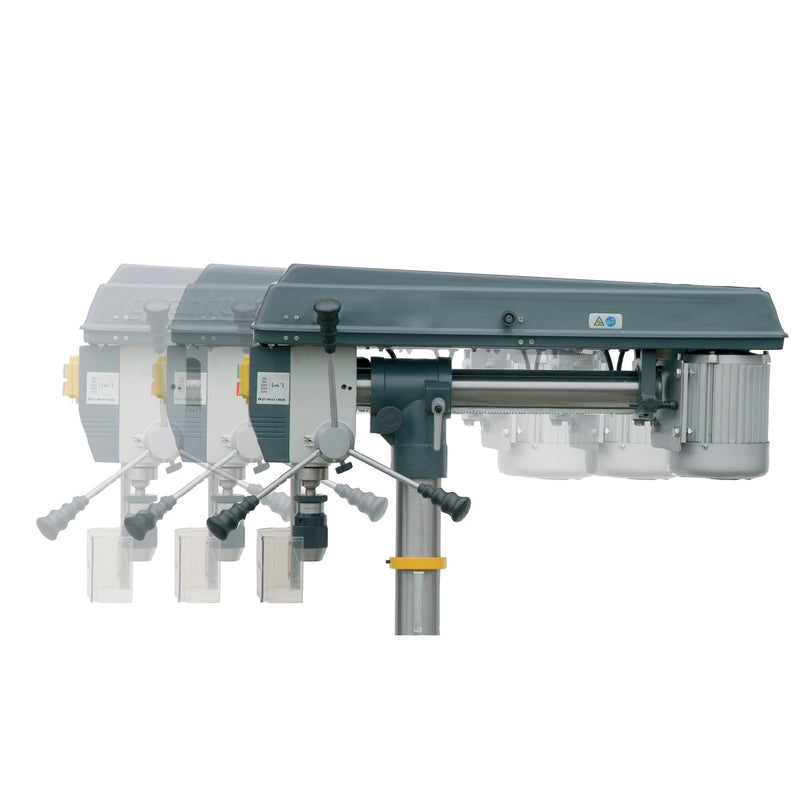

| Reach from to | 115 - 430 mm |
| Motor(s) | |
| Spindle motor drive output | 0.75 kW |
| Number of gears spindle motor | 1 Steps |
- Cog Drill Chuck (1-16 mm) B 16
- Morse cone MK 2 - B 16
- EAN: 4030635003608
- Custom Number: 84592900
- Comprimento: 1155 mm
- Altura: 315 mm
- Largura: 495 mm
- Peso Bruto: 78 kg
- Peso Líquido: 73
Estimated shipping time: 48-72 hours
