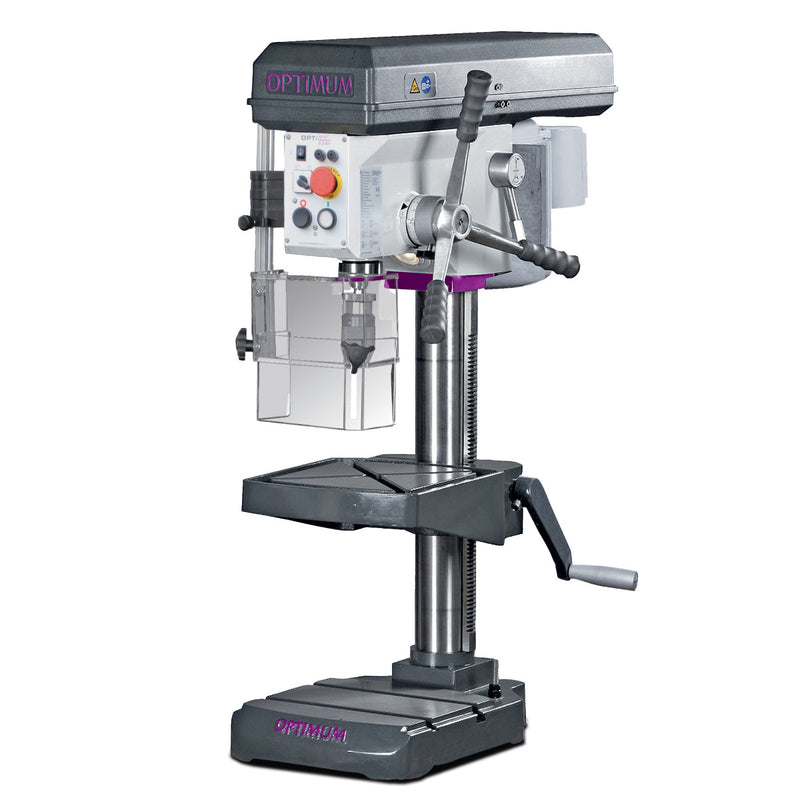

Optimum (3020243) Bench drill OPTIdrill B 24H (400 V)
SKU 3020243
Original price
€2.311,17
Original price
€2.311,17
-
Original price
€2.311,17
Original price
€2.311,17
Current price
€2.195,61
€2.195,61
-
€2.195,61
Current price
€2.195,61
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- machine light
- Forward / reverse operation
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 665 mm |
| Column diameter | 80 mm |
| Width/depth (product) approx. | 434 mm |
| Height (product) approx. | 998 mm |
| Net weight approx. | 92 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 24 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
| Drilling table workspace length | 280 mm |
| Drilling table workspace width | 300 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table rotation | 360 ° |
| Max. distance spindle - drilling table | 515 mm |
| Speed range | |
| Speed range | 350 - 4000 min¯¹ |

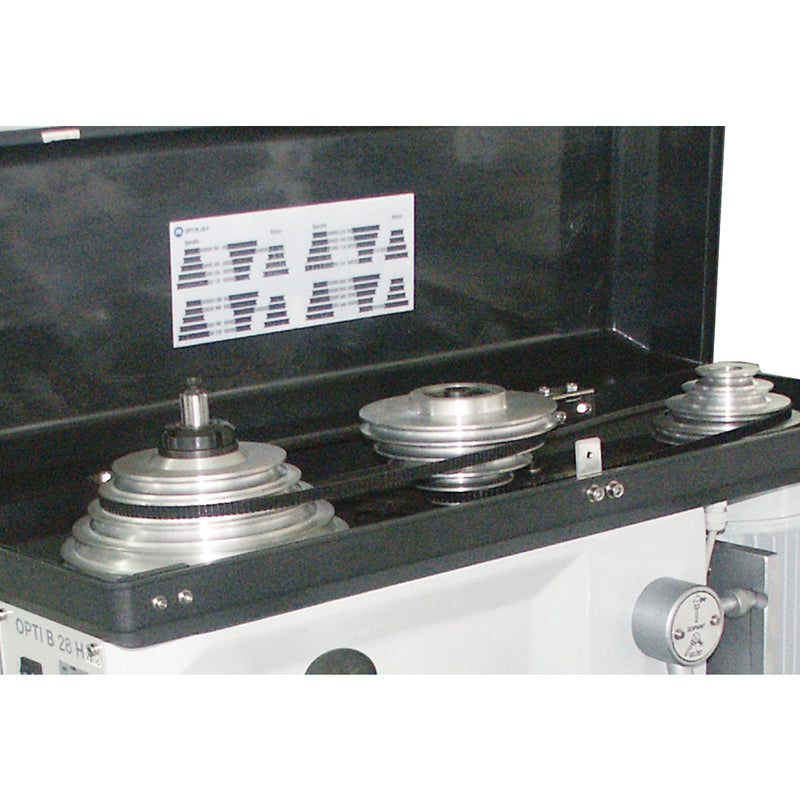

| Number of gears | 7 Steps |
| Speed control | Manual |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 590 mm |
| Machine base workspace length | 280 mm |
| Machine base workspace width | 260 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 85 mm |
| Spindle chuck | MT 2 |
| Reach | 165 mm |
| Motor(s) | |
| Spindle motor drive output | 0.85 kW |
| Number of gears spindle motor | 1 Steps |
- Keyless chuck (1 - 16 mm)
- Morse taper MK2 / B16
- T-nuts
- EAN: 4030635010729
- Custom Number: 84592900
- Comprimento: 760 mm
- Altura: 1170 mm
- Largura: 440 mm
- Peso Bruto: 116 kg
- Peso Líquido: 92
Estimated shipping time: 48-72 hours
