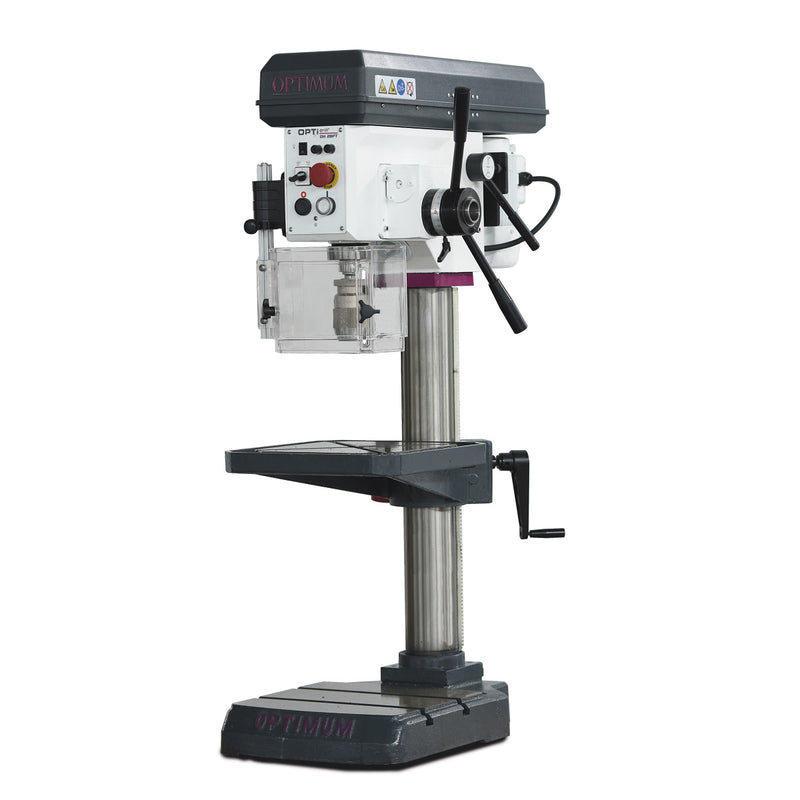

Optimum (3020260) Bench drill OPTIdrill DH 28FT
SKU 3020260
Original price
€2.902,80
Original price
€2.902,80
-
Original price
€2.902,80
Original price
€2.902,80
Current price
€2.757,66
€2.757,66
-
€2.757,66
Current price
€2.757,66
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 715 mm |
| Column diameter | 92 mm |
| Width/depth (product) approx. | 455 mm |
| Height (product) approx. | 1150 mm |
| Net weight approx. | 132 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 28 mm |
| Continuous drilling performance steel (S235JR) | 24 mm |
| Drilling table | |
| Drilling table workspace length | 340 mm |
| Drilling table workspace width | 360 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table T-groove number | 2 |
| Drilling table rotation | 360 ° |
| Max. distance spindle - drilling table | 540 mm |
| Speed range | |
| Speed range | 120 - 3000 min¯¹ |
| Number of gears | 12 Steps |
| Electrical Data | |
| Drive motor output | 0,85 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 700 mm |
| Machine base workspace length | 320 mm |
| Machine base workspace width | 320 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 105 mm |
| Spindle chuck | MT 3 |
| Reach | 200 mm |
- Quick-release drill chuck 1 - 16 mm
- Morsekonus
- T-Nutensteine
- EAN: 4030635040634
- Custom Number: 84592900
- Comprimento: 1350 mm
- Altura: 500 mm
- Largura: 770 mm
- Peso Bruto: 165 kg
- Peso Líquido: 136
Estimated shipping time: 48-72 hours
