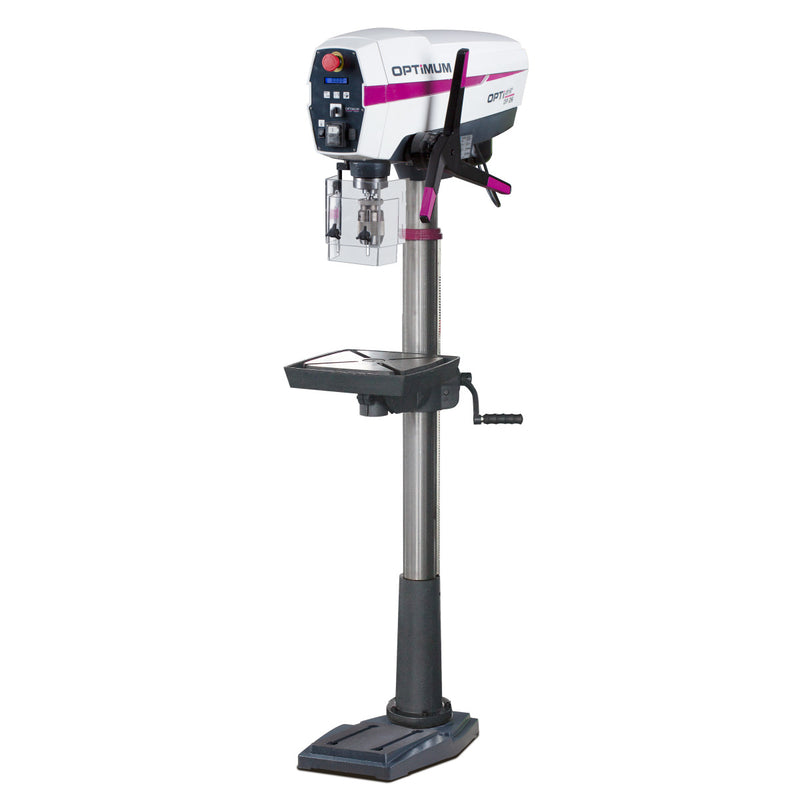

Optimum (3020620F) Upright drill OPTIdrill DP 26-F (230 V)
SKU 3020620F
Original price
€2.066,40
Original price
€2.066,40
-
Original price
€2.066,40
Original price
€2.066,40
Current price
€1.963,08
€1.963,08
-
€1.963,08
Current price
€1.963,08
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 748 mm |
| Column diameter | 80 mm |
| Width/depth (product) approx. | 406 mm |
| Height (product) approx. | 1724 mm |
| Net weight approx. | 116 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 25 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
| Drilling table workspace length | 308 mm |
| Drilling table workspace width | 308 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 12 mm |
| Drilling table T-groove number | 2 |
| Drilling table rotation | 360 ° |
| Drilling table angle | 45 ° |
| Drilling table load bearing capacity | 45 kg |
| Max. distance spindle - drilling table | 770 mm |
| Speed range | |
| Speed range | 200 - 2440 min¯¹ |

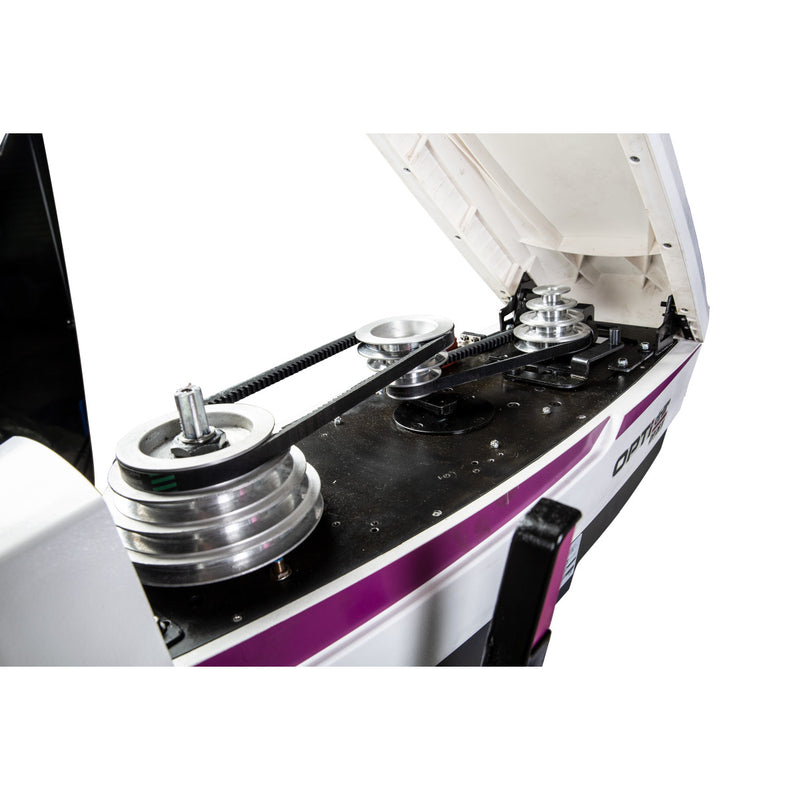

| Number of gears | 12 |
| Electrical Data | |
| Drive motor output | 0,75 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1300 mm |
| Machine base workspace length | 202 mm |
| Machine base workspace width | 265 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 95 mm |
| Spindle chuck | MT 3 |
| Reach | 209 mm |
- Quick-release drill chuck 0 - 16 mm
- T-Nutensteine
- Outing
- Adapter MK 3-B16
- Operating tool
- EAN: 4030635042492
- Custom Number: 84592900
- Peso Bruto: 128 kg
- Peso Líquido: 116
Estimated shipping time: 48-72 hours
