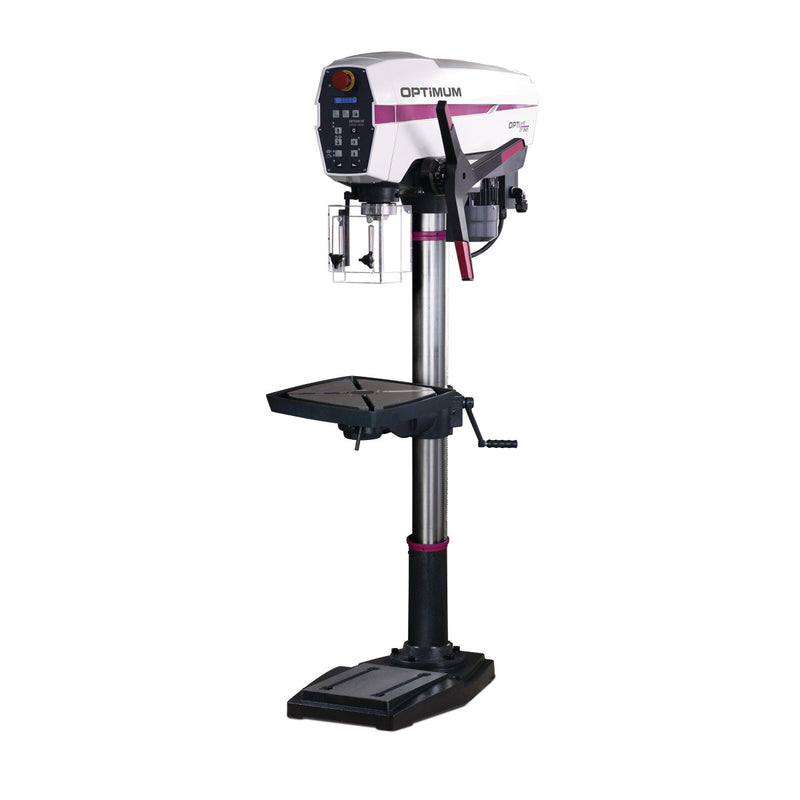

Optimum (3027660F) Upright drill OPTIdrill DP 26BV - F
SKU 3027660F
Original price
€3.050,40
Original price
€3.050,40
-
Original price
€3.050,40
Original price
€3.050,40
Current price
€2.897,88
€2.897,88
-
€2.897,88
Current price
€2.897,88
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 748 mm |
| Column diameter | 80 mm |
| Width/depth (product) approx. | 406 mm |
| Height (product) approx. | 1724 mm |
| Net weight approx. | 111 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 20 mm |
| Continuous drilling performance steel (S235JR) | 16 mm |
| Drilling table | |
| Drilling table workspace length | 308 mm |
| Drilling table workspace width | 308 mm |
| Drilling table T-groove type | running diagonally |
| Drilling table T-groove size | 12 mm |
| Drilling table T-groove number | 2 |
| Drilling table rotation | 360 ° |
| Drilling table angle | 45 ° |
| Max. distance spindle - drilling table | 740 mm |
| Speed range | |
| Speed range | 420 - 2100 min¯¹ |
| Number of gears | 2 |
| Speed control | electronically adjustable |
| Electrical Data | |
| Drive motor output | 0.45 / 0.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance chuck - machine base | 592 mm |
| Max. distance spindle - machine base | 1300 mm |
| Machine base workspace length | 202 mm |
| Machine base workspace width | 265 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 mm |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 95 mm |
| Spindle chuck | MT 3 |
| Reach | 209 mm |
- Quick-action drill chuck 1 - 16 mm
- T-nuts
- ejector
- EAN: 4030635047237
- Custom Number: 84592900
- Peso Bruto: 113 kg
- Peso Líquido: 106
Estimated shipping time: 48-72 hours
