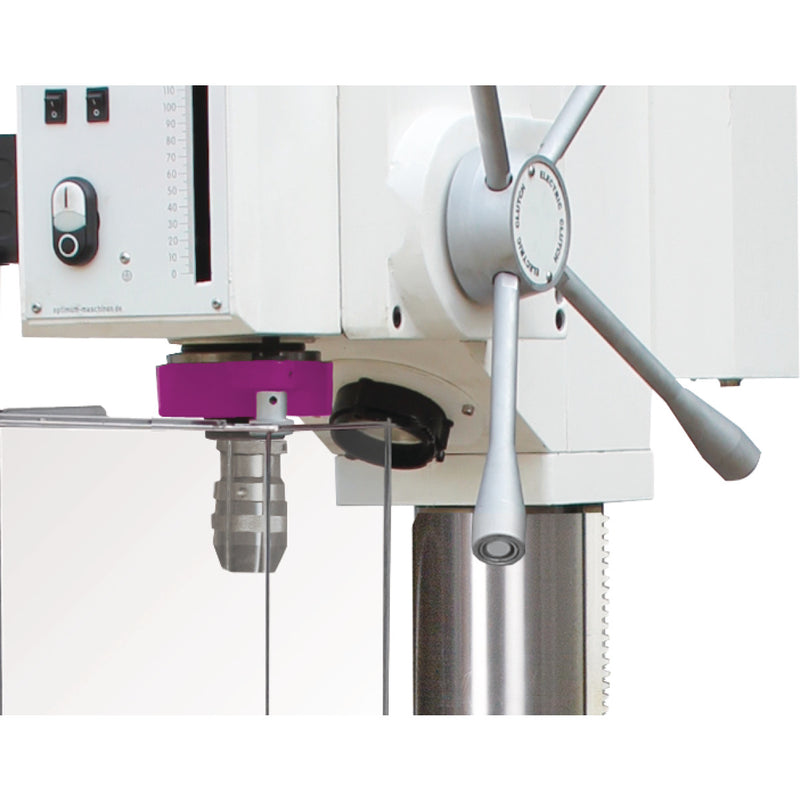

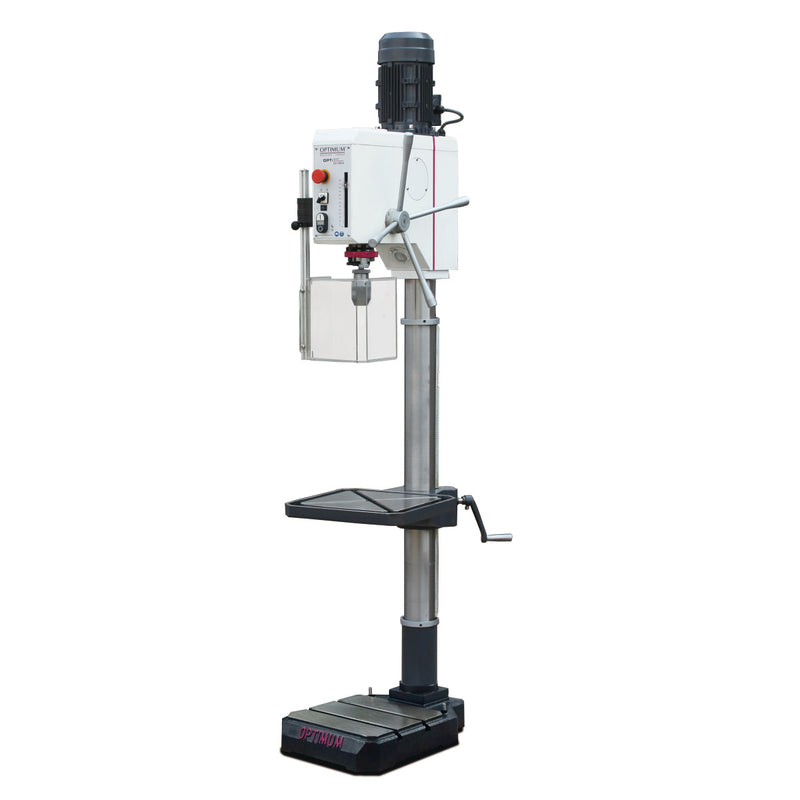

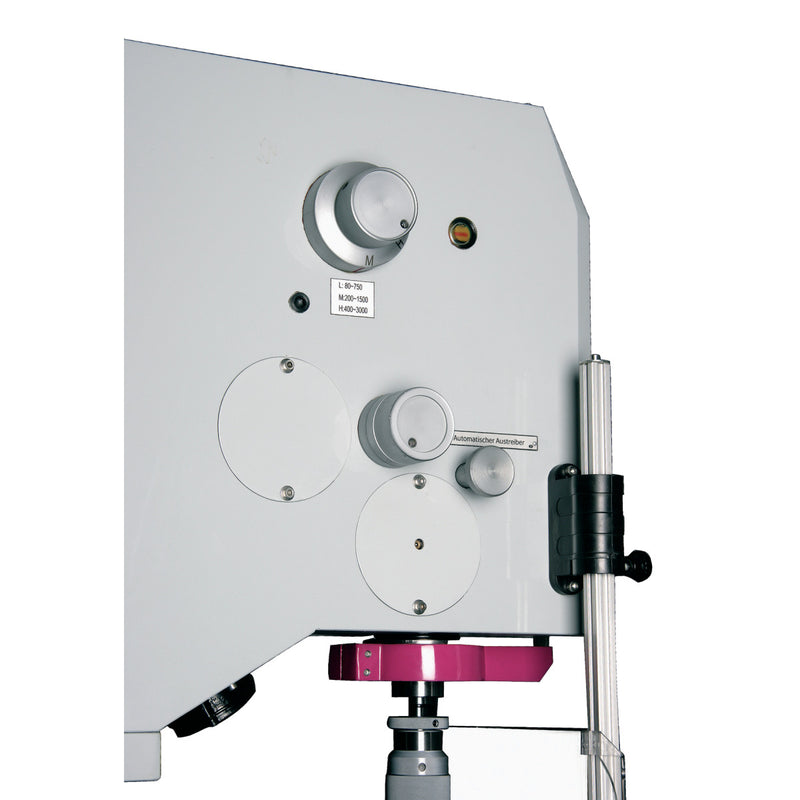

Optimum (3034230) Upright drill OPTIdrill DH 28GS
SKU 3034230
Original price
€4.496,88
Original price
€4.496,88
-
Original price
€4.496,88
Original price
€4.496,88
Current price
€4.272,04
€4.272,04
-
€4.272,04
Current price
€4.272,04
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 640 mm |
| Column diameter | 92 mm |
| Width/depth (product) approx. | 376 mm |
| Height (product) approx. | 2080 mm |
| Net weight approx. | 175 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 26 mm |
| Continuous drilling performance steel (S235JR) | 23 mm |
| Drilling table | |
| Drilling table workspace length | 376 mm |
| Drilling table workspace width | 394 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table T-groove number | 2 |
| Drilling table rotation | 360 ° |
| Drilling table load bearing capacity | 100 kg |
| Max. distance spindle - drilling table | 875 mm |
| Speed range | |
| Speed range | 75 - 2900 min¯¹ |
| Number of gears | 8 Steps |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1285 mm |
| Machine base workspace length | 350 mm |
| Machine base workspace width | 356 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 127 mm |
| Spindle chuck | MT 3 |
| Reach | 260 mm |
| Motor(s) | |
| Spindle motor drive output | 1,1 / 1,5 kW |
- Adapter MK3-B16
- EAN: 4030635018756
- Custom Number: 84592900
- Comprimento: 2070 mm
- Altura: 845 mm
- Largura: 480 mm
- Peso Bruto: 230 kg
- Peso Líquido: 175
Estimated shipping time: 48-72 hours
