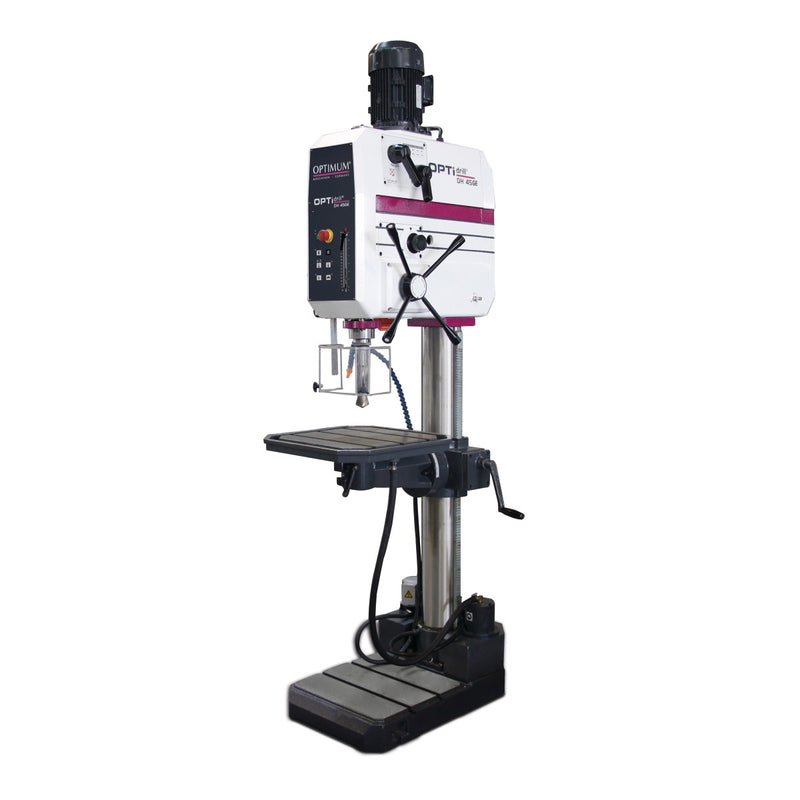

Optimum (3034257) Getriebebohrmaschine OPTIdrill DH 45GE
SKU 3034257
Original price
€8.339,40
Original price
€8.339,40
-
Original price
€8.339,40
Original price
€8.339,40
Current price
€7.922,43
€7.922,43
-
€7.922,43
Current price
€7.922,43
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Electrically operated quill feed
- Oil pump
- Programmable feed cut-off
- Easy-to-read digital display
- Digitally adjustable drilling and thread depth
- Digital zero point can be set
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 880 mm |
| Width/depth (product) approx. | 595 mm |
| Height (product) approx. | 2445 mm |
| Net weight approx. | 550 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 40 mm |
| Continuous drilling performance steel (S235JR) | 35 mm |
| Thread tapping steel (S235JR) | M 30 |
| Drilling table | |
| Drilling table workspace length | 530 mm |
| Drilling table workspace width | 530 mm |
| Drilling table T-groove size | 18 mm |
| Speed range | |
| Speed range | 90 - 1520 min¯¹ |
| Number of gears | 8 Steps |
| Electrical Data | |
| Drive motor output | 2.2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Spindle | |
| Quill stroke | 170 mm |
| Spindle chuck | MT 4 |
| Reach | 350 mm |
| Quill feed | automatic |
| Quill feed speed | 0.1 – 0.25 mm/rev |
| Quill feed gears | 3 Steps |
- Quick-action drill chuck 1-16 mm
- Tapered arbor for drill chuck MK4/B16
- EAN: 4030635047831
- Custom Number: 84592900
- Comprimento: 2245 mm
- Altura: 990 mm
- Largura: 550 mm
- Peso Bruto: 600 kg
- Peso Líquido: 530
