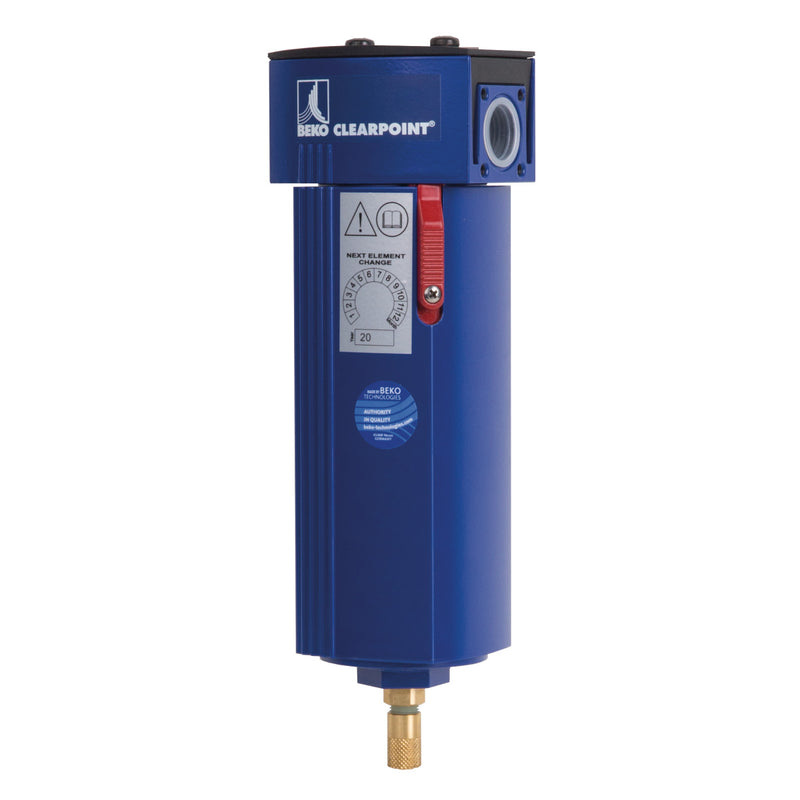

(2042150) Fine filter CLEARPOINT® 3eco S055 FWF

Name: (2042150) Fine filter CLEARPOINT® 3eco S055 FWF
Brand: Aircraft
SKU: 2042150
Price: 368.08 EUR
Availability: OutOfStock

SKU 2042150

Sold out

€387,45

€387,45 - €387,45

€387,45

€368,08

€368,08 - €368,08

€368,08

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Flow-optimized air supply for up to 75% less resistance
Assembly of the filter elements without cross-sectional narrowing and disturbing tie rods, thus reduced flow resistance and easy element change even in confined spaces
Cavity volume of the borosilicate filter material of 96% ensures the lowest pressure loss
CLEARPOINT® filter housing made of water-resistant aluminum and additionally anodised on the inside, therefore increased operational safety and reduced flow resistance due to permanently smooth inner surfaces
100% control when opening the filter housing by a secure locking mechanism, when opened under pressure a warning signal sounds
With thermally highly resistant (up to 120 ° C), mechanically highly resistant, chemically resistant and silicone-free needle felt drainage layer (in contrast to foam material of other filter makes)
Stable construction of the filter element - it is not possible to inflate or rupture the drainage layer, thereby ensuring the constant use of the entire filter surface

for the separation of oil vapors, odors and flavorings via adsorption and in the second stage of solid particles
Residual content of oil vapor up to 0.003 mg / m³ at 20 ° C and 1 bar
absolute compressed air quality according to ISO 8573-1
For compressed air of the highest quality, eg, for breathing air, in analytical technology or semi-luxury bottling
Pure compressed air in connection with upstream ultrafine filter
With filter element and manual drain

Dimensions and weights
Volume flow m³/h	100 test
Volume flow l/min	1670 l/min
Volume flow measured at operating pressure	16 bar
Air connection	1/2 "


Width/depth (product) approx.	75 mm
Height (product) approx.	265 mm


Technical data
Operation	Safe segregation of condensate, oil aersol, and particles
Range of Application	Installed in front of dryers, valves, tools and other actuators
Particle size	1 µm
Residual oil aerosol content	0,1 mg/m³
Comment on residual content	at 20°C and 1 bar
Differential pressure (dry)	0.05 bar
Purity class of compressed air in accordance with ISO 8573-1	2.? .2

Filter element, float valve

Estimated shipping time: 48-72 hours
