- Flow-optimized air supply for up to 75% less resistance
- Assembly of the filter elements without cross-sectional narrowing and disturbing tie rods, thus reduced flow resistance and easy element change even in confined spaces
- Cavity volume of the borosilicate filter material of 96% ensures the lowest pressure loss

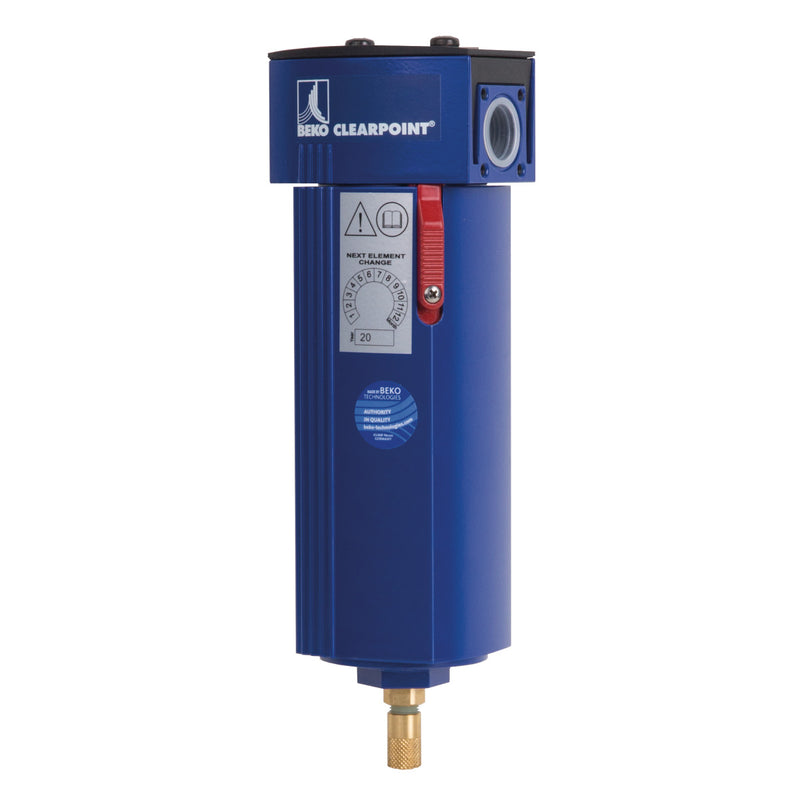

- CLEARPOINT® filter housing made of water-resistant aluminum and additionally anodised on the inside, therefore increased operational safety and reduced flow resistance due to permanently smooth inner surfaces
- 100% control when opening the filter housing by a secure locking mechanism, when opened under pressure a warning signal sounds
- With thermally highly resistant (up to 120 ° C), mechanically highly resistant, chemically resistant and silicone-free needle felt drainage layer (in contrast to foam material of other filter makes)
- Stable construction of the filter element - it is not possible to inflate or rupture the drainage layer, thereby ensuring the constant use of the entire filter surface
- for the separation of oil vapors, odors and flavorings via adsorption and in the second stage of solid particles
- Residual content of oil vapor up to 0.003 mg / m³ at 20 ° C and 1 bar
- absolute compressed air quality according to ISO 8573-1
- For compressed air of the highest quality, eg, for breathing air, in analytical technology or semi-luxury bottling
- Pure compressed air in connection with upstream ultrafine filter
- With filter element and manual drain
| Volume flow m³/h |
200 test |
| Volume flow l/min |
3340 l/min |
| Volume flow measured at operating pressure |
16 bar |
| Air connection |
1 " |
|
| |
| Dimensions and weights |
|---|
| Width/depth (product) approx. |
100 mm |
| Height (product) approx. |
350 mm |
|
| |
| Technical data |
|---|
| Operation |
Safe segregation of condensate, oil aersol, and particles |
| Range of Application |
Installed in front of dryers, valves, tools and other actuators |
| Particle size |
1 µm |
| Residual oil aerosol content |
0,1 mg/m³ |
| Comment on residual content |
at 20°C and 1 bar |
| Differential pressure (dry) |
0.05 bar |
| Purity class of compressed air in accordance with ISO 8573-1 |
2.? .2 |
Filter element, float valve
- EAN: 9006248007239
- Custom Number: 84219990
- Peso Bruto: 2.2 kg
- Peso Líquido: 2.2 kg
