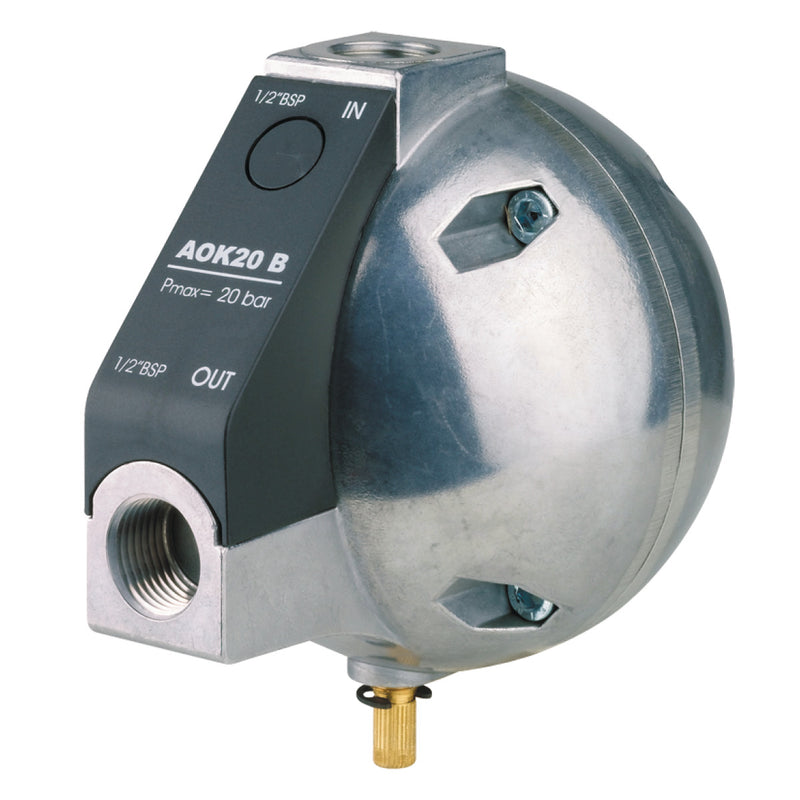

(2053074) Condensate drain (automatic) AOK 20 B
SKU 2053074
Original price
€84,75
Original price
€84,75
-
Original price
€84,75
Original price
€84,75
Current price
€80,52
€80,52
-
€80,52
Current price
€80,52
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- For discharging a higher volume of condensate from compressed air filters, pressure vessels and cyclone separators without air loss
- External trap with robust aluminum housing
- Additionally equipped with a manual condensate drain valve with a diameter of 8.3 mm
| Drain off quantity max. (short-term) | 167 l/h |
| Explanation drain off quantity max. | at 7 bar |
| Operating pressure | 0 ? 20 bar |
| Operating temperature | 1.5 - 65 °C |
| Condensate feed | G½ " |
| Condensate outlet | G½ |
| Mode of operation | Automatically level-controlled |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 135 mm |
| Width/depth (product) approx. | 110 mm |
| Height (product) approx. | 130 mm |
- EAN: 9006248017047
- Custom Number: 84149000
- Comprimento: 150 mm
- Altura: 120 mm
- Largura: 140 mm
- Peso Bruto: 0.6 kg
- Peso Líquido: 0.5 kg
Estimated shipping time: 48-72 hours
