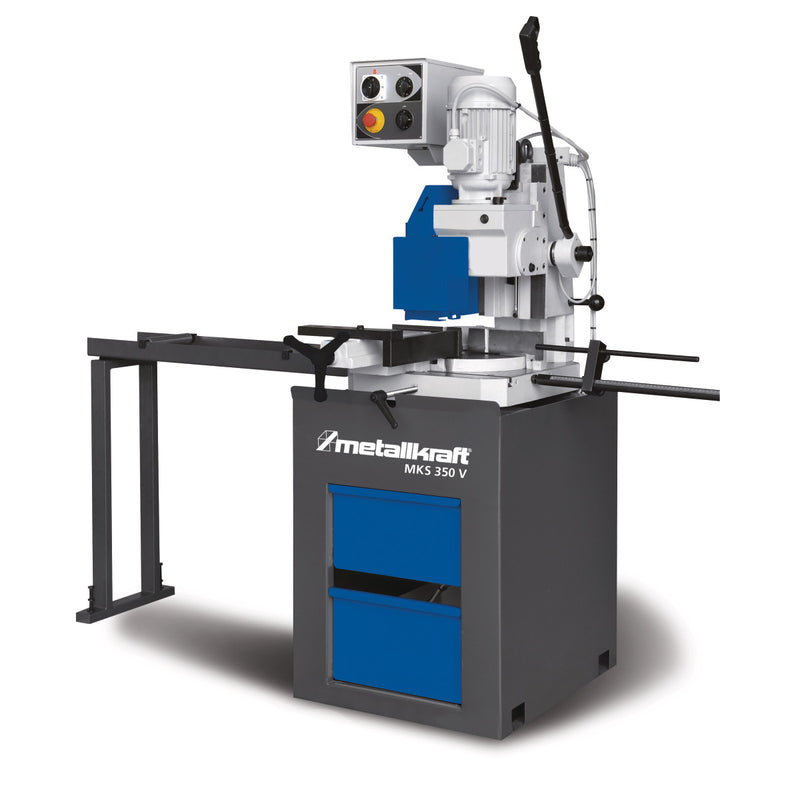

Manual Vertical Metal Circular Saw Metallkraft (MKS 350V)
SKU 3622350
Sold out
Original price
€12.292,31
Original price
€12.292,31
-
Original price
€12.292,31
Original price
€12.292,31
Current price
€9.833,85
€9.833,85
-
€9.833,85
Current price
€9.833,85
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Machine head guided vertically, with dovetail guide and adjustable wedge bar.
- Swivelling 45° to the left and 60° to the right, with locking at -45°, 0°, -45°, 60°.
- Two cutting speeds.
- Adjustable depth stop for the vertical stroke of the saw head.
- Cross-movable vice with anti-burr device.
- Stable and robust construction.
- Easy and hassle-free operation.
- Reduction gearbox quietly running in the oil bath.
- Coolant pump with coolant filter.
- Coolant jet distribution, for better lubrication of the saw blade.
- Chip crusher for leaf cleaning.
- Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection.
- Control handle with safety switch.
| Saw blade speed(s) | 36/72 min¯¹ |
| Saw blade diameter | 370 mm |
| Miter angle | -45 – +60 ° |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1050 mm |
| Width/depth (product) approx. | 1000 mm |
| Height (product) approx. | 1850 mm |
| Net weight approx. | 450 kg |
| Electrical Data | |
| Drive motor output | 1.9/2.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Cutting capacity | |
| Cutting capacity 0° (round) solid material | 100 mm |
| Cutting capacity 0° (round) pipe | 100 mm |
| Cutting capacity 0° (square) pipe | 90 x 90 mm |
| Cutting capacity 0° (rectangle) pipe | 170 x 90 mm |
| Cutting capacity -45° (round) solid material | 100 mm |
| Cutting capacity -45° (round) pipe | 100 mm |
| Cutting capacity -45° (square) pipe | 90 x 90 mm |
| Cutting capacity -45° (rectangle) pipe | 125 x 90 mm |
| Cutting capacity +45° (round) solid material | 90 mm |
| Cutting capacity +45° (round) pipe | 90 mm |
| Cutting capacity +45° (square) pipe | 90 x 90 mm |
| Cutting capacity +45° (rectangle) pipe | 90 x 90 mm |
- Coolant device with filter .
- Material support arm with roller .
- Length stop 500 mm .
- operating tool .
- Chip remover T4 .
- without saw blade .
- EAN: 4036351028901.
- Custom Number: 84615011.
- Comprimento: 1020 mm.
- Altura: 1850 mm.
- Largura: 800 mm.
- Peso Bruto: 450 kg.
- Peso Líquido: 450 kg.
Estimated shipping time: 48-72 hours
