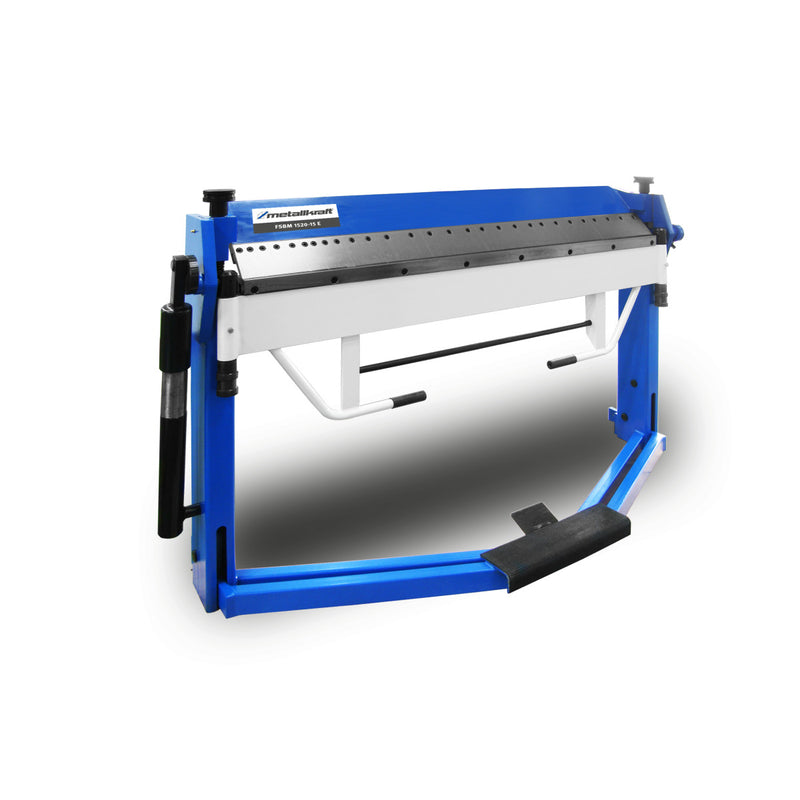

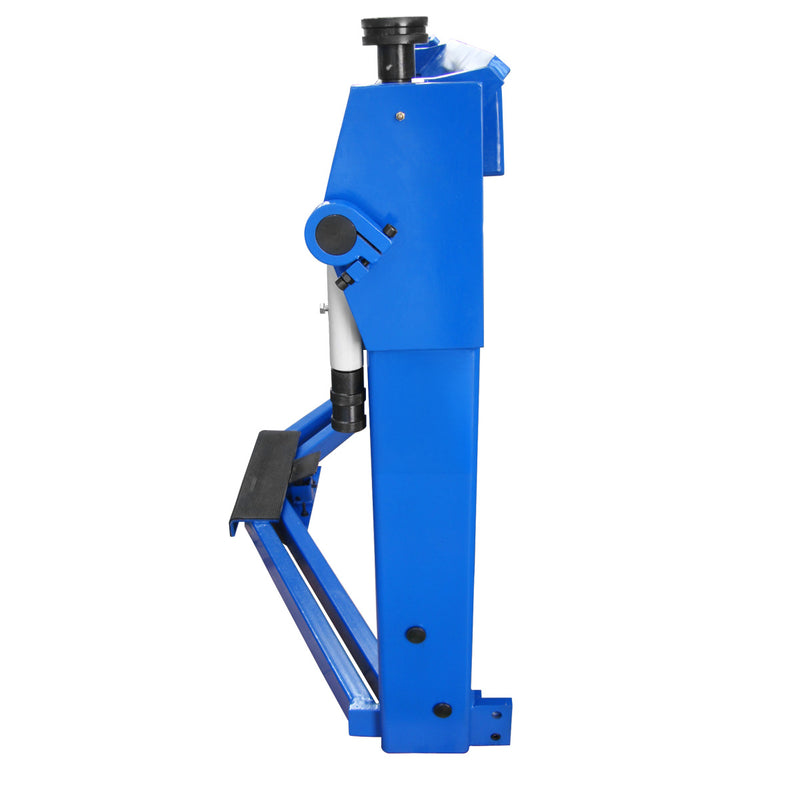

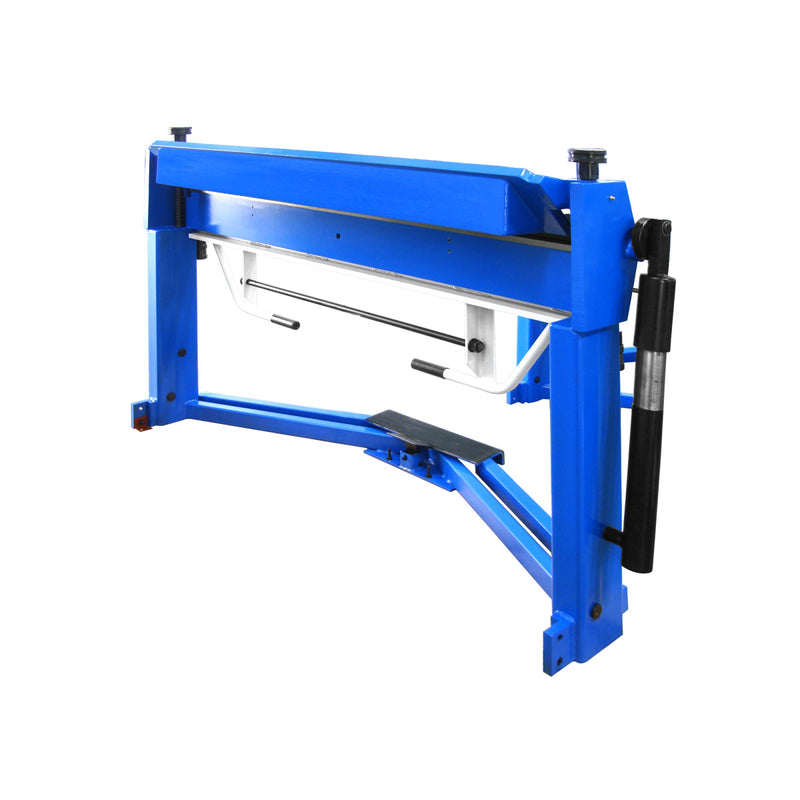

Manual Swing Bending Machine Metallkraft (FSBM 1520-15 E)

Product Overview:

• The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply.
• Different tool variants available E, S2, HS2 and HSG.
• The powerful auxiliary cylinder facilitates bending.
• Next passage between top and bottom cheek of up to 25 mm.
• Self-lubricating plain bearings.
• Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable.
• Adjustment of material thickness by means of knurled screw.
• Adjustable stop for bending angle.

• With segmented sharp-bending tools, continuous bending strip and continuous bed support.

• With segmented sharpening tools, segmented bending strip and continuous bed support.

• With segmented gooseneck tools, segmented bending bar and segmented bed support .
• Segments have a hardness of HRC24-26.

• Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm².
• Bending capacity VA: factor 0.75.
• Bending capacity aluminum: factor 1.2.
• Hardened top tools are required to bend VA.
• More information available on catalog (download bellow).
