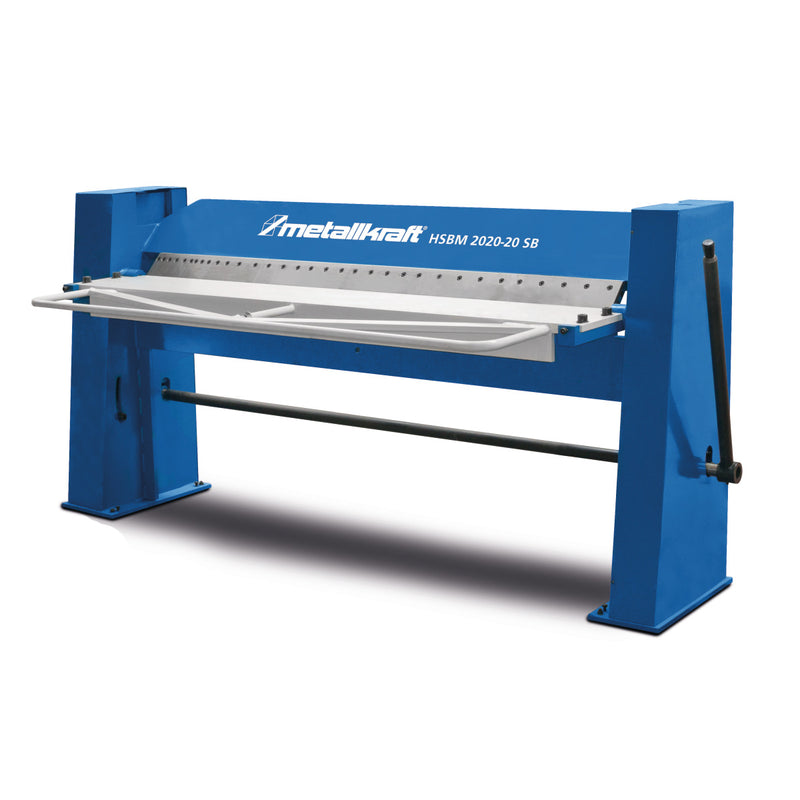

Manual Swing Bending Machine Metallkraft (HSBM 2020-20 SB)
SKU 3772920
Sold out
Original price
€9.209,63
Original price
€9.209,63
-
Original price
€9.209,63
Original price
€9.209,63
Current price
€7.367,70
€7.367,70
-
€7.367,70
Current price
€7.367,70
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Easy handling .
- segmented upper tools .
- Swivel bending function with secure clamping of the workpiece by preloading the upper beam .
- heavy, compact welded construction .
- For easy bending with exact adjustment of the bending angle by means of a stop with scale .
- particularly low maintenance .
segment breakdown
- 25-30-35-40-45-75-100-150-200-200-270-400-400 .
Note on technical data:
Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²; Bending capacity VA: factor 0.75; Bending capacity Alu: factor 1,2; Hardened top tools are required to bend stainless steel
| Max. working width | 2020 mm |
| Max. passageway between top + bottom beam | 120 mm |
| Max. bending angle | 135 ° |
| Segmentation | 25-30-35-40-45-75-100-150-200-200-270-400-400 mm |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 2500 mm |
| Width/depth (product) approx. | 710 mm |
| Height (product) approx. | 1500 mm |
| Net weight approx. | 1020 kg |
| Bending capacity | |
| Bending capacity 400 N/mm² | 2.0 mm |
| Bending capacity 700 N/mm² | 1.25 mm |
| Bending capacity aluminium | 2.4 mm |
- EAN: 4036351057598.
- Custom Number: 84622900.
- Comprimento: 2800 mm.
- Altura: 1500 mm.
- Largura: 710 mm.
- Peso Bruto: 1180 kg.
- Peso Líquido: 1020 kg.
Estimated shipping time: 48-72 hours
