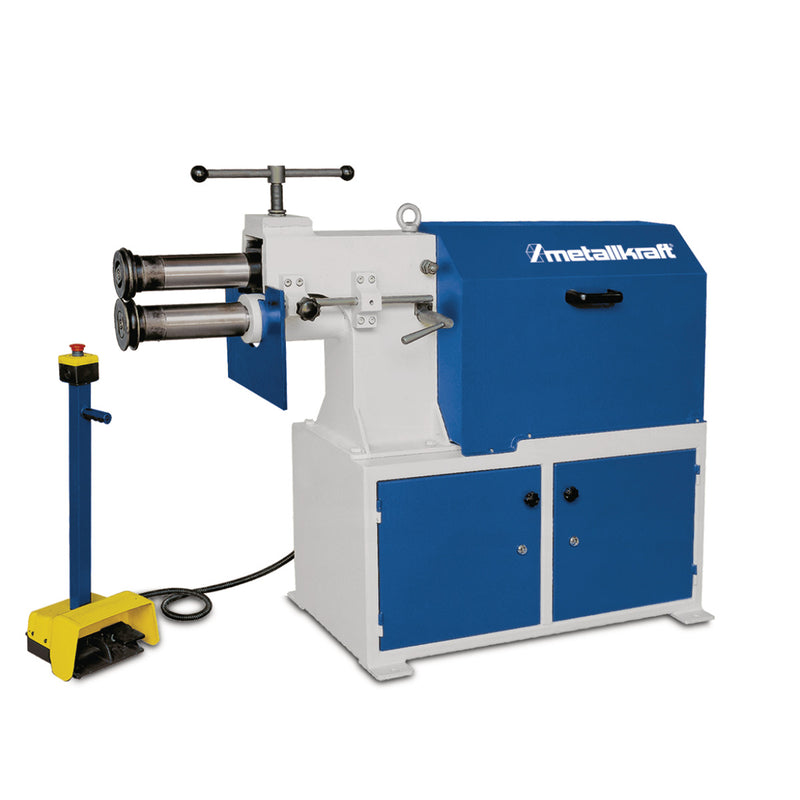

Motorized Bead Bending Machine Metallkraft (SBM 300-40 E)
SKU 3814005
Sold out
Original price
€11.316,00
Original price
€11.316,00
-
Original price
€11.316,00
Original price
€11.316,00
Current price
€9.052,80
€9.052,80
-
€9.052,80
Current price
€9.052,80
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Heavy and stable steel construction .
- self-braking engine .
- Fußpedalbedienung .
- adjustable lower shaft .
- adjustable stop plate .
- Steel shafts mounted with bronze bushes .
- 4 set of standard rolls .
- with underframe .
- powerful 400 volt engine .
Please specify when ordering material to be edited!
| Drive | motor |
| Roller length | 300 mm |
| Roller diameter | 126 mm |
| Max. bending performance in steel 400 N/mm² | 4 mm |
| Collar width | 200 mm |
| Roller speed | 5 m/min |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1700 mm |
| Width/depth (product) approx. | 570 mm |
| Height (product) approx. | 1200 mm |
| Net weight approx. | 500 kg |
| Electrical Data | |
| Drive motor output | 2,2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |

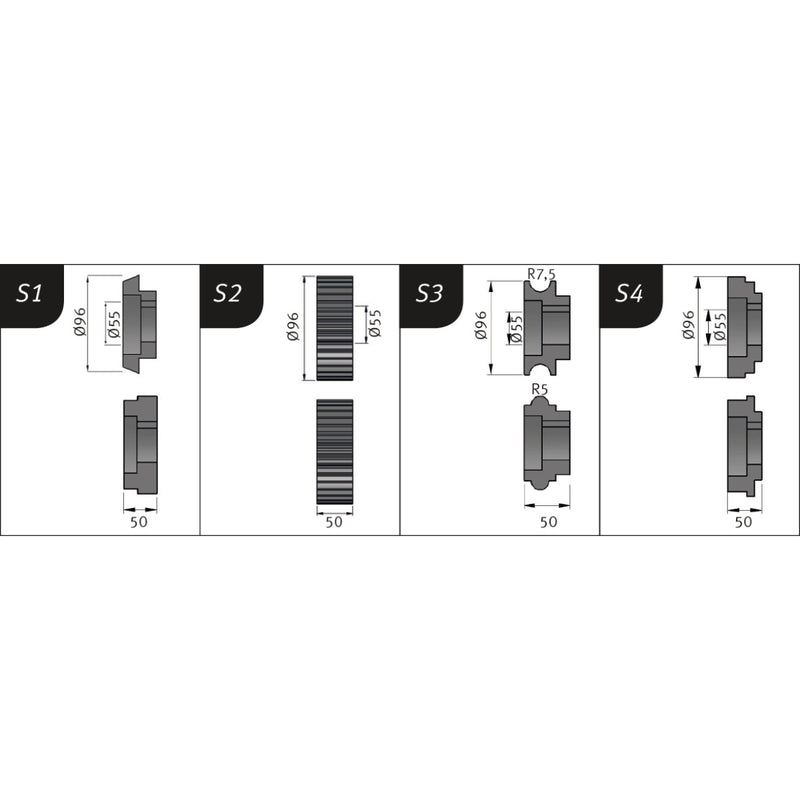

- Standard wheels: S1-S4 .
- Special key for disassembly and assembly of the rollers .
- pedal .
- EAN: 4036351152095.
- Custom Number: 84622900.
- Peso Bruto: 500 kg.
- Peso Líquido: 500 kg.
Estimated shipping time: 48-72 hours
