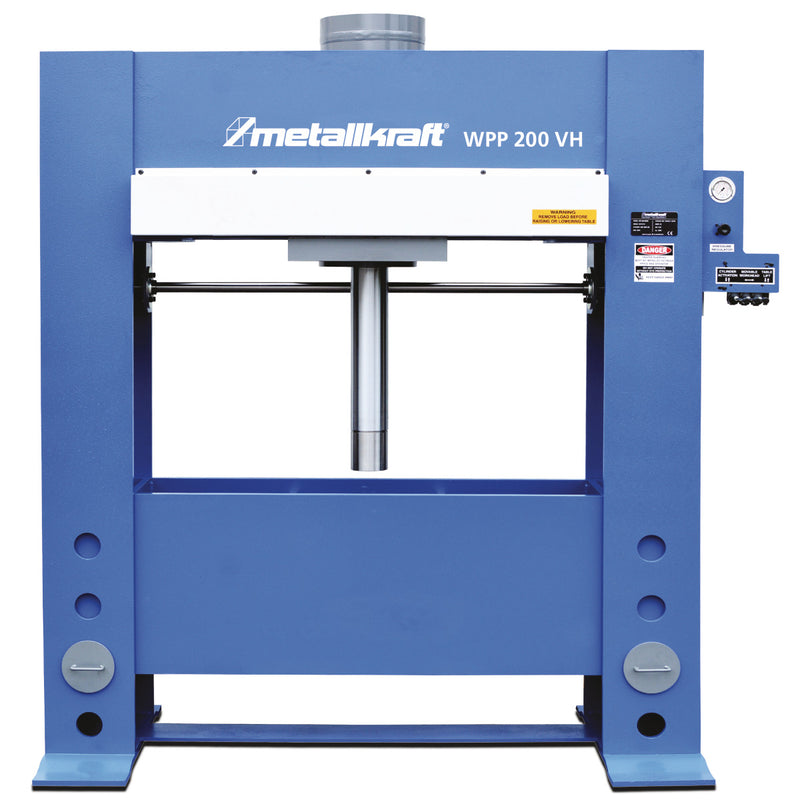

Fully Hydraulic Workshop Press Metallkraft (WPP 200 VH)
SKU 4050200
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more .

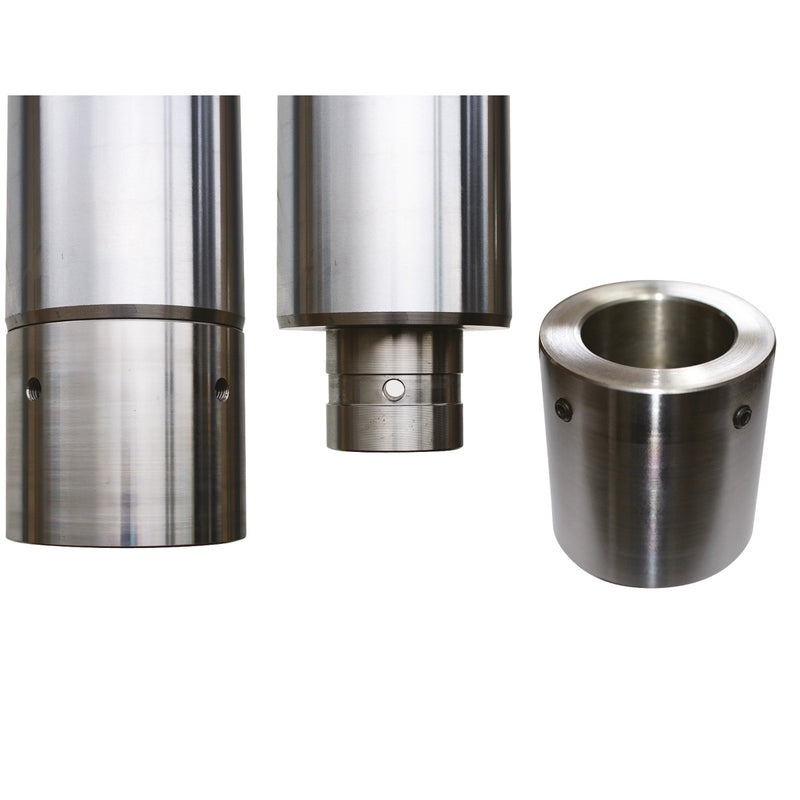

- With pressure mandrel adapter for two different pressing diameters of the cylinders .
- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table .
- Cylinder can be moved laterally via lever .
- Pressure-sensitive hand levers for regulating the feed rates .
- Pressing pressure readable via manometer .
| Pressure force | 200 t |
| Piston stroke | 508 mm |
| Piston travel | 508 mm |
| Lowering speed | 7.8 mm/s |
| Press speed | 1.3 mm/s |
| Return speed | 9.5 mm/s |
| Length of piston nose | 63.5 mm |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 2132 mm |
| Width/depth (product) approx. | 1066 mm |
| Height (product) approx. | 2386 mm |
| Net weight approx. | 3455 kg |
| Depth without foot | 559 mm |

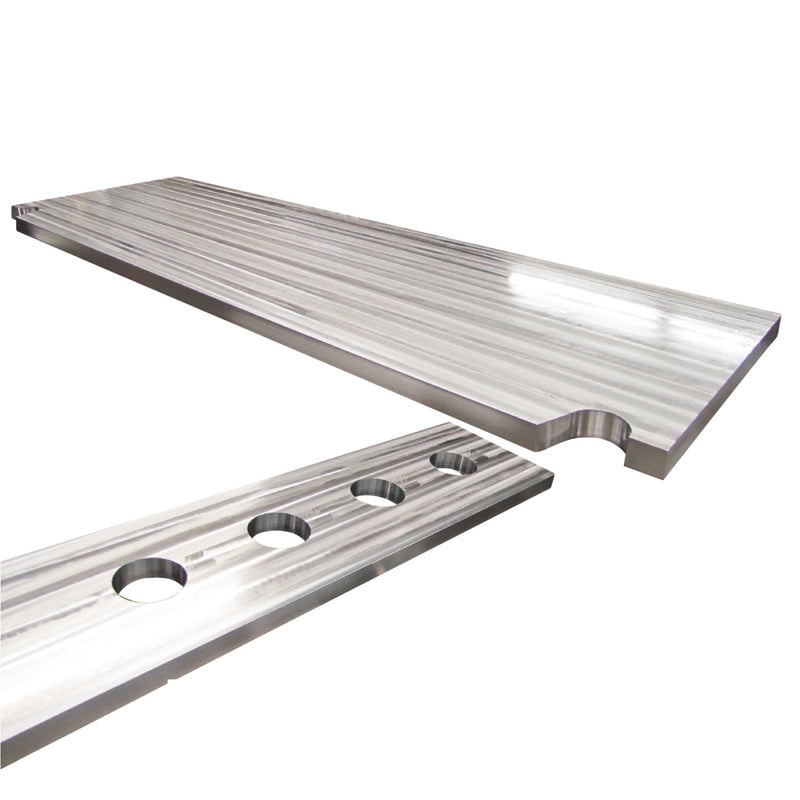

| Work table length | 1523 mm |
| Work table width | 500 mm |
| Width/depth of machine feet | 1066 mm |
| Frame depth | 508 mm |
| Hole spacing for table height adjustment | 203 mm |
| Clear height max. | 761 mm |
| Clear width | 1523 mm |
| Diameter piston head | 305 mm |
| Diameter piston rod | 126 mm |

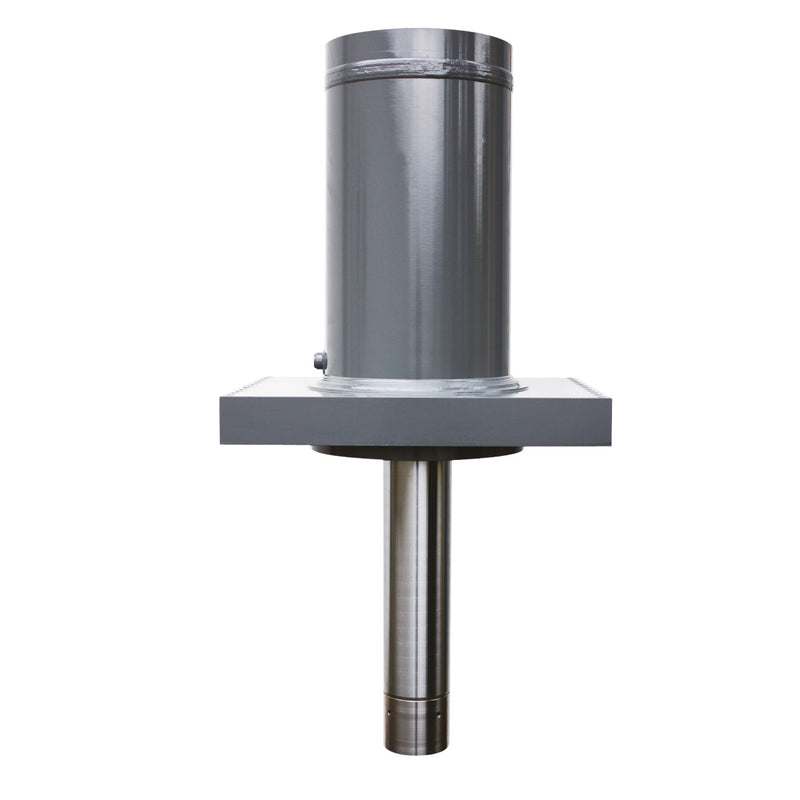

| Diameter cylinder | 305 mm |
| Electrical Data | |
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor speed | 1465 min¯¹ |
| Hydraulic system | |
| Oil capacity (empty cylinder) | 76 l |
- EAN: 4036351240747.
- Custom Number: 84626190.
- Comprimento: 1575 mm.
- Altura: 2513 mm.
- Largura: 2235 mm.
- Peso Bruto: 3455 kg.
- Peso Líquido: 3455 kg.
Request a quote
Estimated shipping time: 48-72 hours
