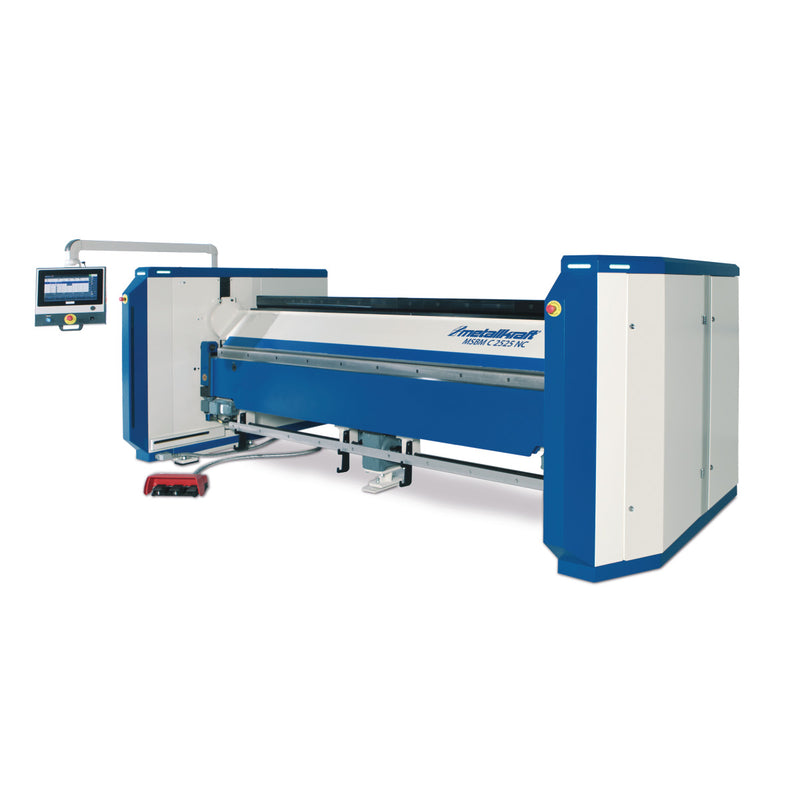

Motorized Swing Bending Machine Metallkraft (MSBM C 4215 NC)

Product Overview:

• Clamping beam with eccentric drive for fast clamping and opening cycle.
• 180° swiveling upper beam with two work stations - 100mm high segmented goad feet and one-piece 30° sharp bending rail.
• Large, clear upper beam opening at 200mm.
• One narrow and one wide continuous bending bar included (10mm and 25mm) .
• Manual sheet thickness adjustment of the bending beam.
• Front safety area secured by light curtain.
• 3-position foot pedal for one-man operation.
• Servo-motorized backgauge with 1000mm travel range with flat, rotating stop fingers.
• Large, rectangular rear support table with integrated transfer balls for easy material handling.
• User-friendly 15.6" touchscreen NC control on ergonomic swivel arm.

• Backgauge extensions with 1500, 2500, 3200 or 4200mm length.
• Different support table geometries L-, T- or U-shape.

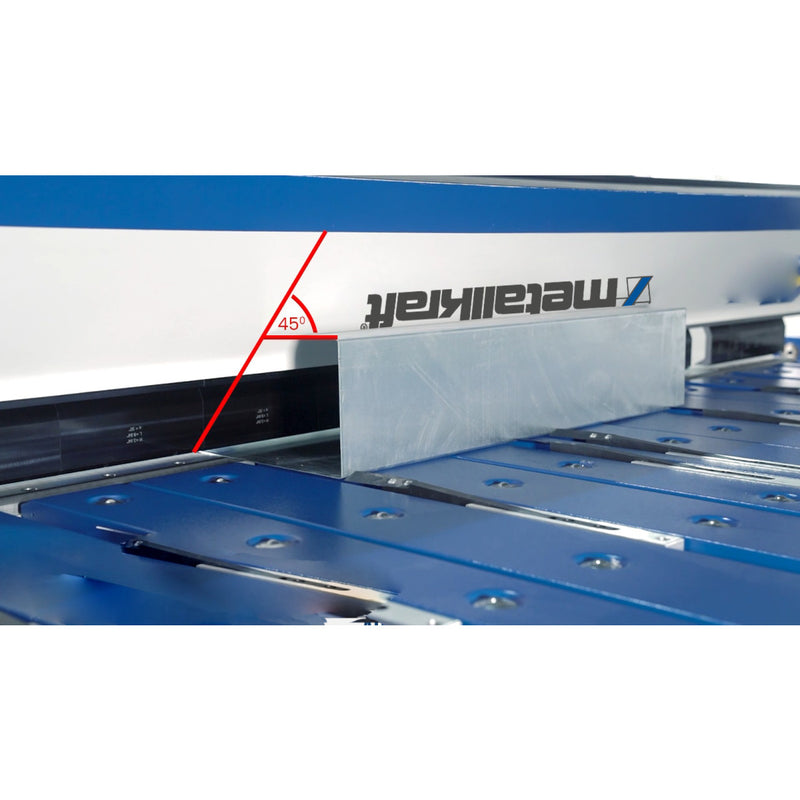

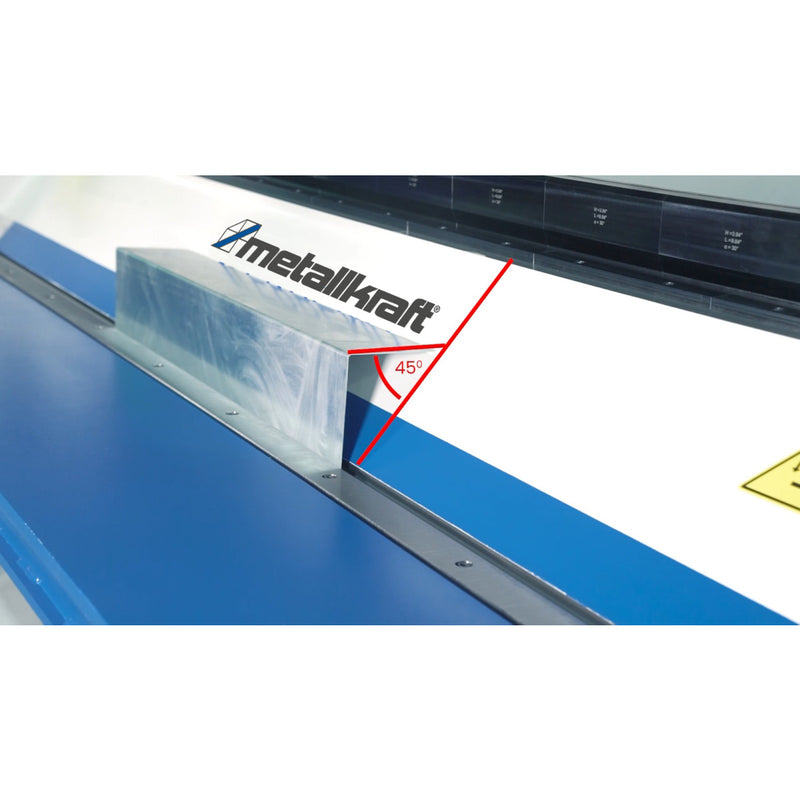

• Omega geometry of the lower and upper beam for maximum flexibility in case of barrel plates due to more free space for the workpiece.
• 2D or 3D graphic controls.
• Fast, servo-motorized sheet thickness adjustment of the bending beam.
• Pneumatic upper die clamping of the segmented bite feet.
• Central, manual crowning system of the bending beam.
• Motorized two-axis backgauge for inclined position.
• Manual adjustment of backgauge fingers for inclined position.
• Second foot pedal for two-man operation.
• More information available on catalog (download bellow).
