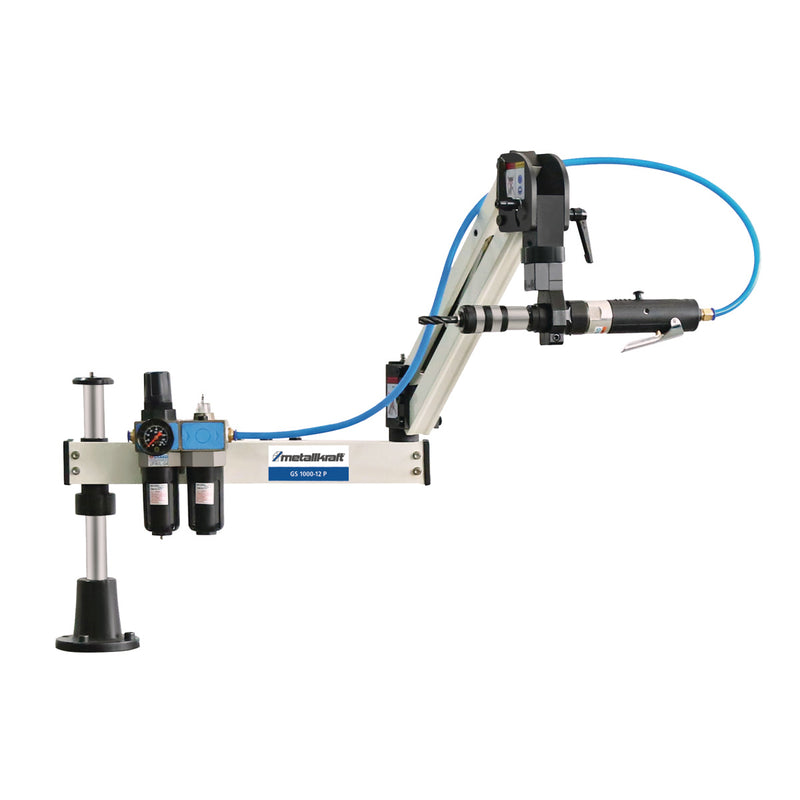

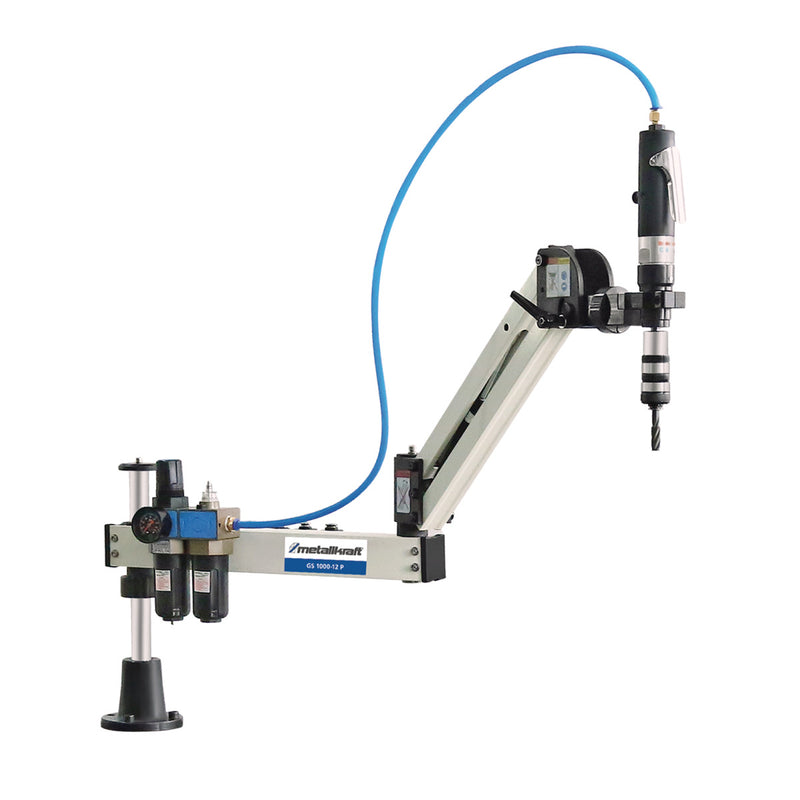

Pneumatic Tapping Machine Metallkraft (GS 1000-12 P)
SKU 4450012
Sold out
Original price
€1.028,59
Original price
€1.028,59
-
Original price
€1.028,59
Original price
€1.028,59
Current price
€822,87
€822,87
-
€822,87
Current price
€822,87
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:

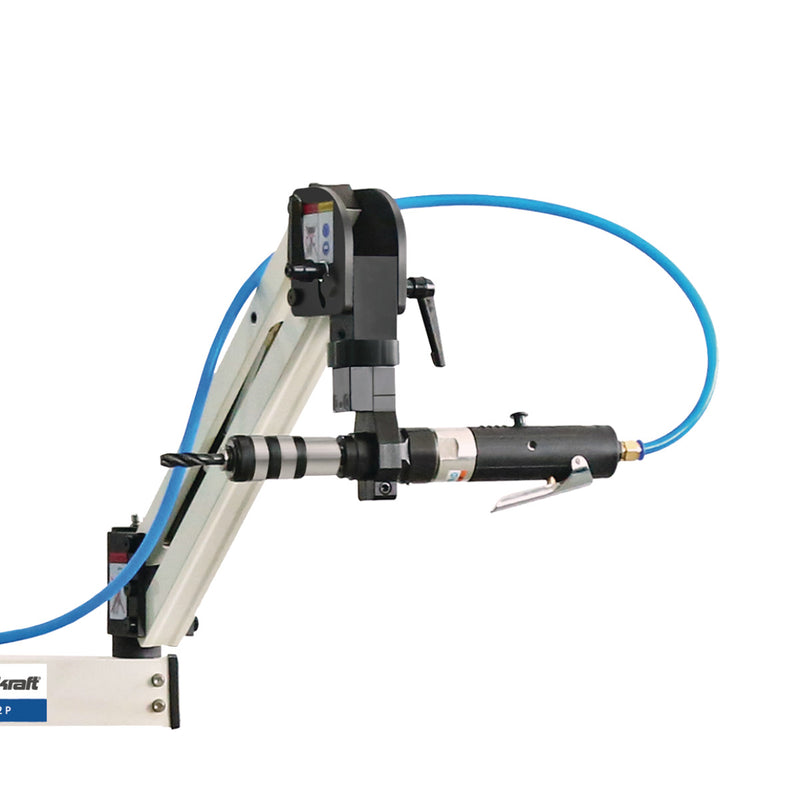

- Machine head can be swivelled from 0 to 90 degrees.
- Quick-change insert with slip clutch for safe thread cutting without risk of breakage.
- Right/left rotation on the machine headhlbar.
- pressure gauge and working pressure regulator on the swivel arm easily accessible.

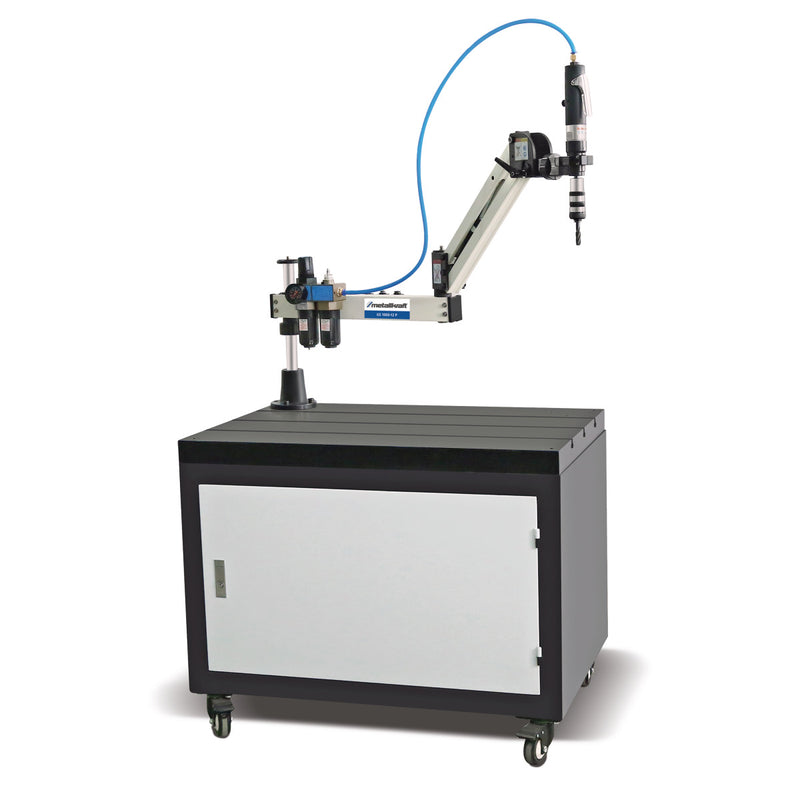

- base with clamping table and chassis available as accessories.
| Tapped holes at 400 N/mm² | M3 – M12 |
| Max. speed | 400 min¯¹ |
| Sound pressure level Lp | 54 dB(A) |
| Cutting direction | right/left |
| Drive system | pneumatic |
| Cantilever radius | 1000 mm |
| Angle adjustment | 0 – 90 ° |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 930 mm |
| Width/depth (product) approx. | 90 mm |
| Height (product) approx. | 520 mm |
| Net weight approx. | 17 kg |
| Pneumatic connection | |
| Operating pressure | 6 – 8 bar |
- filter pressure regulator.
- water separator.
- 1 tapping chuck GT12 M3, M4, M5-6, M8, M10, M12 each.
- EAN: 4036351307082.
- Custom Number: 84597000.
- Comprimento: 600 mm.
- Altura: 260 mm.
- Largura: 265 mm.
- Peso Bruto: 20 kg.
- Peso Líquido: 17 kg.
Estimated shipping time: 48-72 hours
