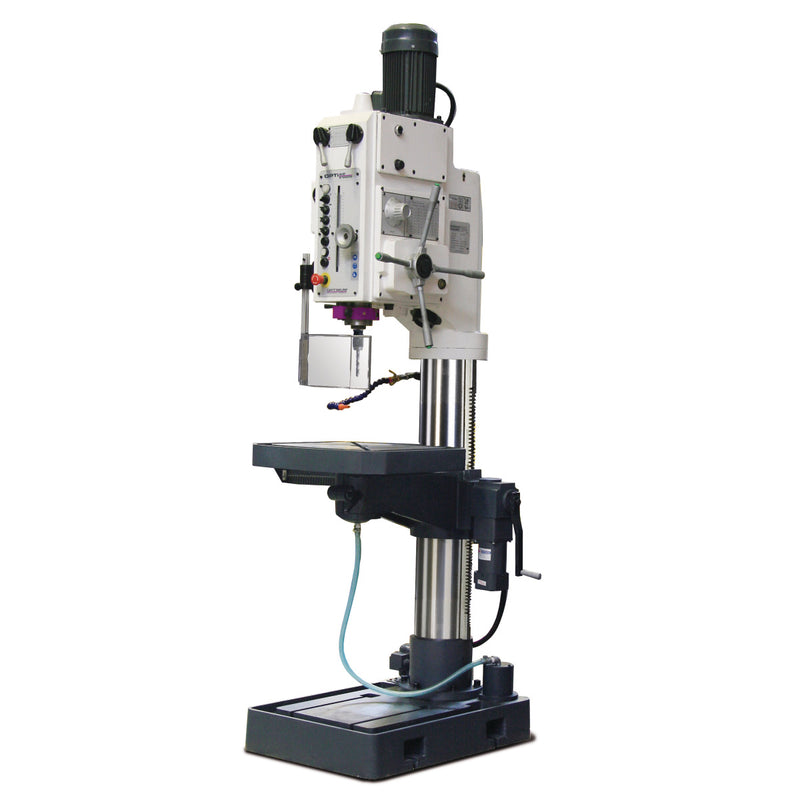

Optimum (3034500) Gear Drilling Machine OPTIdrill B 50GSM

Description

• Heavy, solid cast construction
• Smooth running due to polished gear wheels running in oil bath
• High concentricity due to hardened and ground main spindle
• Two-stage drive motor
• Forward/reverse operation
• Automatic gear lubrication via oil pump

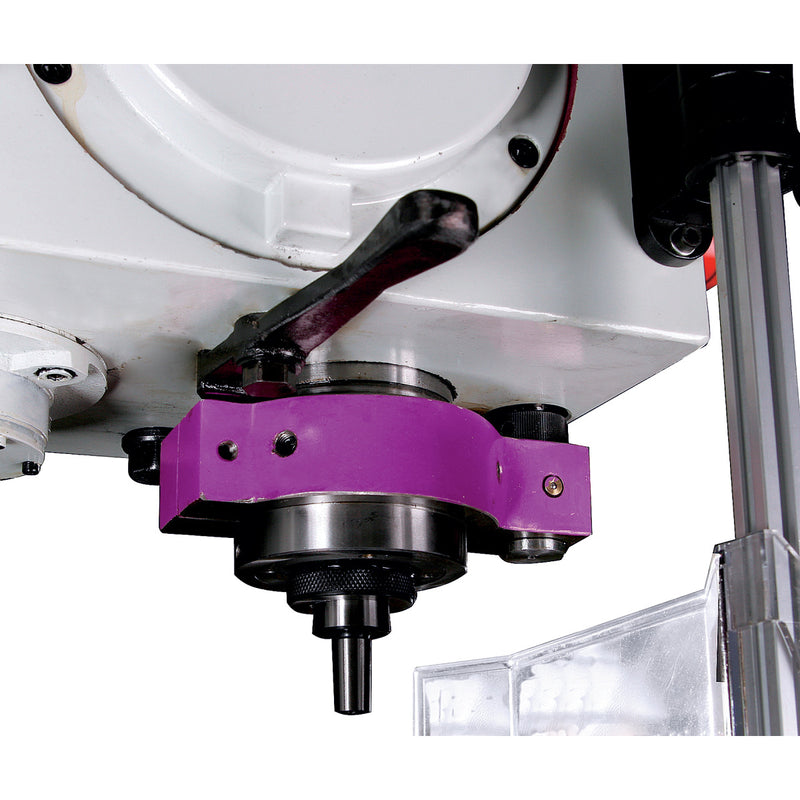

• Threading attachment
• Main switch and motor protection switch

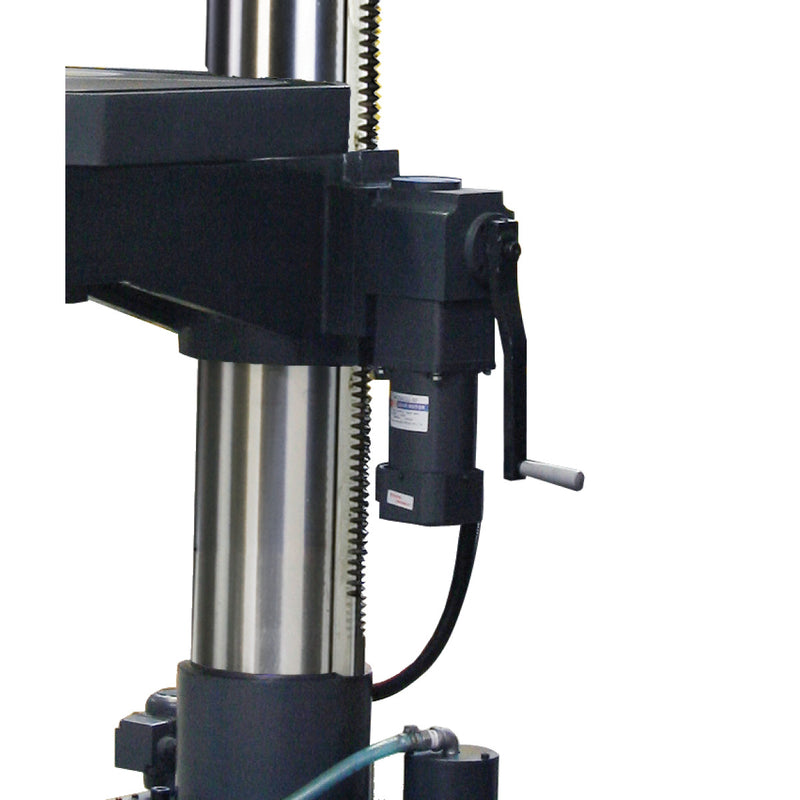

• Motorized table height adjustment
• Machine light integrated in the drill head
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, 360° rotatable
• Coolant system and external coolant tank can be removed for easy and complete emptying
• Chip filter according to Machinery Directive
• Extremely stable, thick-walled cast-iron column - column diameter 200 mm - for high power consumption
• Solid base plate with parallel T-slots, precision surface finish

Technical data

Dimensions and weights

• Length (product) approx.: 985 mm
• Column diameter: 200 mm
• Width/depth (product) approx.: 775 mm
• Height (product) approx.: 2460 mm
• Net weight approx.: 950 kg

Drilling performance

• Drilling performance in steel (S235JR): 50 mm
• Continuous drilling performance steel (S235JR): 45 mm
• Tapping steel (S235JR): M 42

Drilling table

• Drilling table workspace length: 600 mm
• Drilling table workspace width: 600 mm
• Drilling table T-slot type: diagonal
• Drilling table T-slot size: 18 mm
• Number of T-slots in drilling table: 2
• Drilling table rotation: 90 °
• Drilling table load capacity: 300 kg
• Max. distance spindle - drilling table: 800 mm

Speed range

• Speed range: 54 - 2090 min¯¹
• Number of speeds: 18 passos

Electrical data

• Drive motor power: 2,4 / 3,0 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1300 mm
• Machine base workspace length: 600 mm
• Machine base workspace width: 520 mm
• Machine base T-slot size: 18 mm
• Number of T-slots in machine base: 2
• Machine base T-slot spacing: 280 mm

Spindle

• Milling head travel: 230 mm
• Spindle chuck: MT 4
• Reach: 375 mm

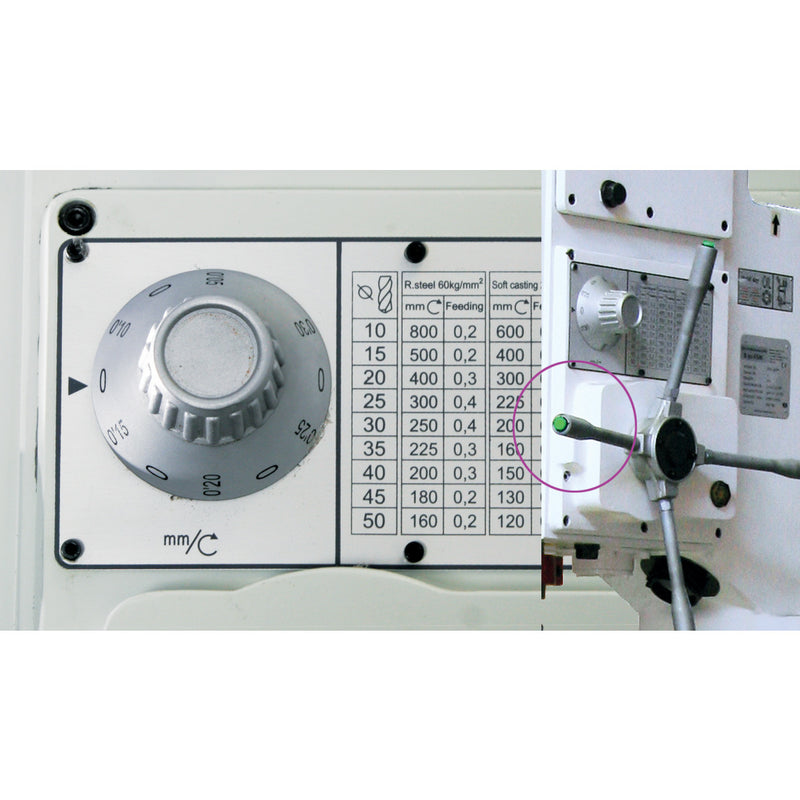

• Milling feed rate: 0,05 - 0,3 mm/rot
• Milling feed gears: 6 passos

Motor(s)

• Coolant pump drive motor power: 40 W

Delivery content

• Keyless drill chuck 1 - 16 mm
• Morse taper MK 4/B16
• T-slots

Transport info

• EAN: 4030635019524
• Customs number: 84592900
• Length: 2580 mm
• Height: 1140 mm
• Width: 750 mm
• Gross weight: 920 kg
• Net weight: 820 kg
