Optimum (3402060) Mechanics Lathe OPTIturn TH 3610D

Description

• Hardened and ground Z-axis guideway
• Precisely machined slide
• Guaranteed concentricity of the spindle nose better than 0.015 mm
• Spindle holder Camlock DIN ISO 702-2 No. 5
• Handwheels decoupled and tested in accordance with EN 23125
• Lead screw cover
• All guides can be adjusted using gibs
• Right/left rotation switchable on the bed slide

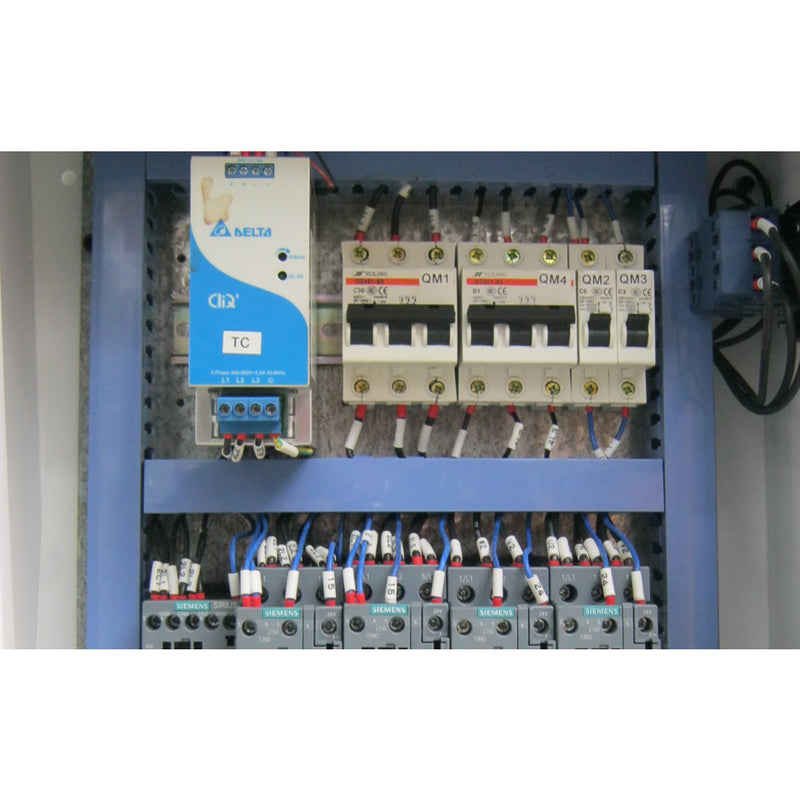

• Two-channel safety electronics
• Switch with life cycle calculation, tested in accordance with EN ISO 13849
• Smooth-running gear wheels, hardened and ground
• Main spindle runs in an oil bath
• Quick, easy and tool-free adjustment using clamping lever
• Handwheels with adjustable fine scaling 0.04 / 0.02 mm
• Handwheels decoupled and tested in accordance with EN 23125
• Safety handwheels with disengagement function in thexand Z axes
• Heavily ribbed prism bed, induction hardened and precision ground

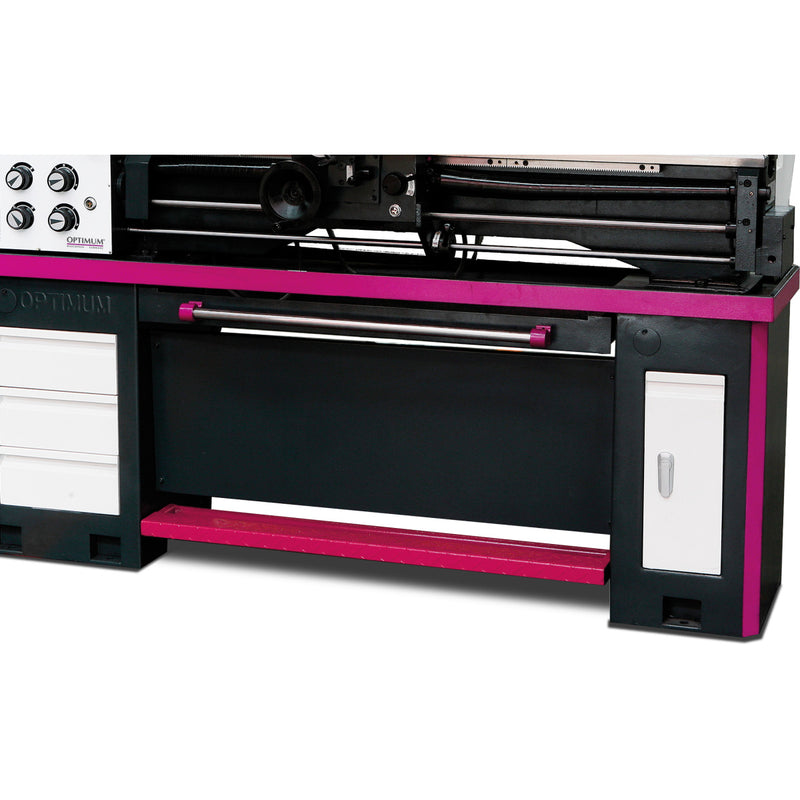

• Machine base with tool compartments on both sides
• Motor protection switch, lockable main switch
• Quadruple steel holder
• Emergency stop device with foot control
• LED machine lamp integrated in the chip guard

Technical data

Dimensions and weights

• Length (product) approx.: 1930 mm
• Width/depth (product) approx.: 725 mm
• Height (product) approx.: 1620 mm
• Net weight approx.: 572 kg

Working areas

• Maximum height: 180 mm
• Max. width: 980 mm
• Swing diameter over machine base: 356 mm
• Swing diameter over cross slide: 225 mm
• Turning length over bed bridge: 160 mm
• Bed width: 187 mm

Equipment

• Digital position indicator: DPA 31 Plus

Speed range

• Number of gears: 8
• Speed range: 70 - 2000 min¯¹

Electrical data

• Drive motor power: 1,5 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 5
• Spindle bore: 52 mm
• Max. height of tool holder: 16 mm
• Spindle taper: MT 6

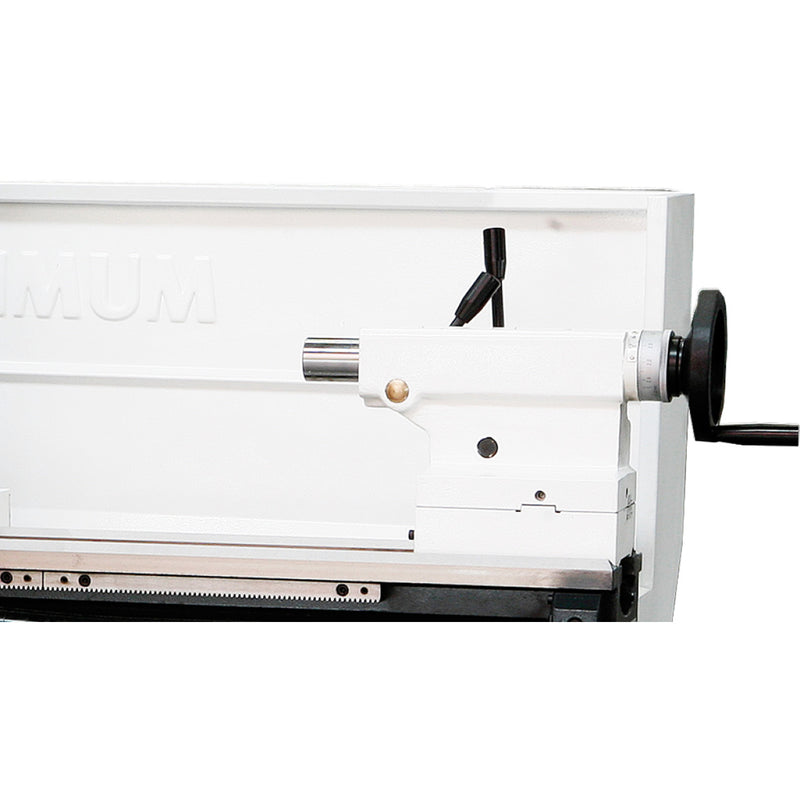

Tailstock

• Tailstock chuck: MK 3
• Tailstock milling head travel: 120 mm
• Tailstock milling cutter diameter: 42 mm

Threads

• Metric pitch: 0,4 - 7 mm/rev
• Number of metric pitches: 26
• Imperial pitch: 56 - 4 Gg/1"
• Number of imperial pitches: 34

Travel

• Top slide travel: 100 mm
• Cross slide travel: 170 mm
• Carriage saddle travel: 840 mm

Feed

• Longitudinal feed range: 0,052 - 1,392 mm/rot
• Number of longitudinal feeds: 32
• Surface feed range: 0,014 - 0,38 mm/rot
• Number of surface feeds: 32

Delivery content

• Fixed bezel passage max. Ø 100 mm
• Running bezel passage max. Ø 95 mm
• LED machine light
• Reduction sleeve MK 6 / MK 3
• Two fixed centering points MK 3
• Quadruple tool holder
• Change gear set
• substructure
• Initial machine filling with quality oil
• operating tool

Transport info

• EAN: 4030635031342
• Customs number: 84581900
• Length: 1930 mm
• Height: 1700 mm
• Width: 760 mm
• Gross weight: 610 kg
• Net weight: 490 kg

Optional accessories

• BISON four-jaw lathe chuck Cast Camlock centric exciting Ø 200 mm Camlock DIN ISO 702-2 No. 5
• BISON three-jaw lathe chuck Camlock casting centre clamping Ø 200 mm Camlock DIN ISO 702-2 No. 5
• Center drill set 10tlg. 0.75-4.5 mm HSS
• Clamping block set for lathes 16-05
• Collet chuck 5C - No. 5
• Collet set SPC 5C
• Cutting oil spray 400 ml
• Face plate Ø 330 mm Camlock DIN ISO 702-2 No. 5
• Internal turning set 12 mm
• Internal turning set 5-piece
• Leveling plate SE 1
• OPTIMUM four-jaw lathe chuck Cast Camlock, centre clamping Ø 200 mm Camlock DIN ISO 702-2 No. 5
• OPTIMUM four-jaw lathe chuck Cast Camlock, single clamping Ø 200 mm Camlock DIN ISO 702-2 No. 5
• Position stop with fine adjustment for lathe TH3610
• Precision machine foot SEU1
• Quick change tool kit SWH 3 - E
• Revolving centering point MT 3
• Revolving centering point MT 3
• Revolving centering point MT 3
• Spare steel holder 20x100 type D
• Spare steel holder 30x100 type H
• Turning tool set 16 mm, 11 parts
• Turning tool set HM 16 mm, 5-part
• Turning tool set HM 16 mm, 5-part
• Turning tool set HM 16 mm, 5-part "Made in Germany"
• Twist drill HSS with Morse taper MT 3
• Universal coolant device 230 V
