Optimum (3403050) Conventional Centre Lathe OPTIturn TM 4010V

Description

• Hardened and ground Z-axis guideway
• Guaranteed concentricity of the spindle nose ? 0.015 mm
• Spindle holder Camlock DIN ISO 702-2 No. 5
• Motor protection switch
• Main motor electrically braked
• Clockwise/anticlockwise rotation switchable on the bed slide
• Two-channel safety electronics
• Switch with life cycle calculation tested in accordance with EN ISO 13849
• Perfectly concentric main spindle guarantees high load capacity due to mounted precision tapered roller bearings
• With safety device to prevent simultaneous operation of tapping and feed mechanism
• Safety handwheels with disengagement function in thexand Z axes
• All gear wheels of the feed gear made of steel, hardened and ground, shafts on needle bearings All components are lubricated in an oil bath
• Simple feed operation

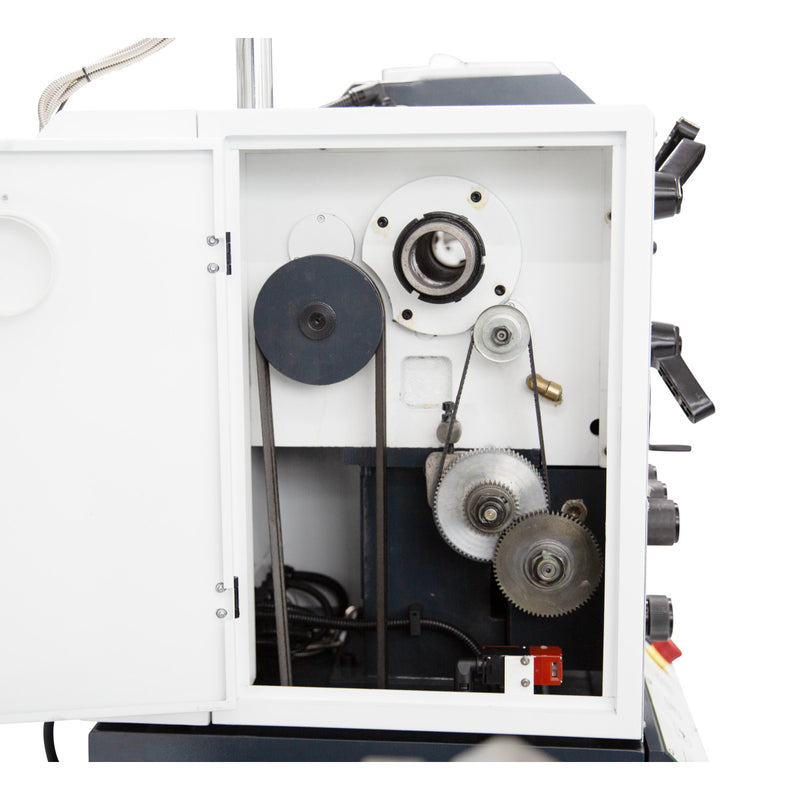

• One change gear position

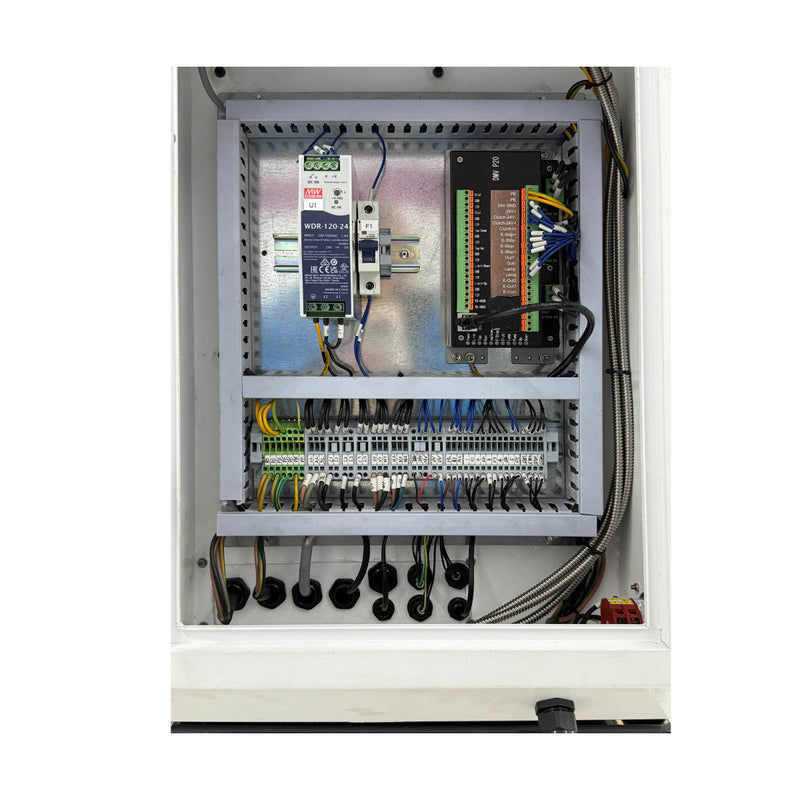

• Switch cabinet with Optimum control system
• Coolant pump with coolant tank and level indicator. Container can be removed for easy cleaning
• LED machine lamp in the machine housing
• Machine base in sturdy steel construction
• Emergency stop switch on the right and left
• Lockable main switch
• Three-jaw lathe chuck included in the scope of delivery
• SWH included in scope of delivery

Technical data

Dimensions and weights

• Length (product) approx.: 1935 mm
• Width/depth (product) approx.: 780 mm
• Height (product) approx.: 1740 mm
• Net weight approx.: 767 kg

Work areas

• Max. height: 200 mm
• Max. width: 1000 mm
• Swing diameter above machine bed: 400 mm
• Swing diameter above planing slide: 250 mm

Speed range

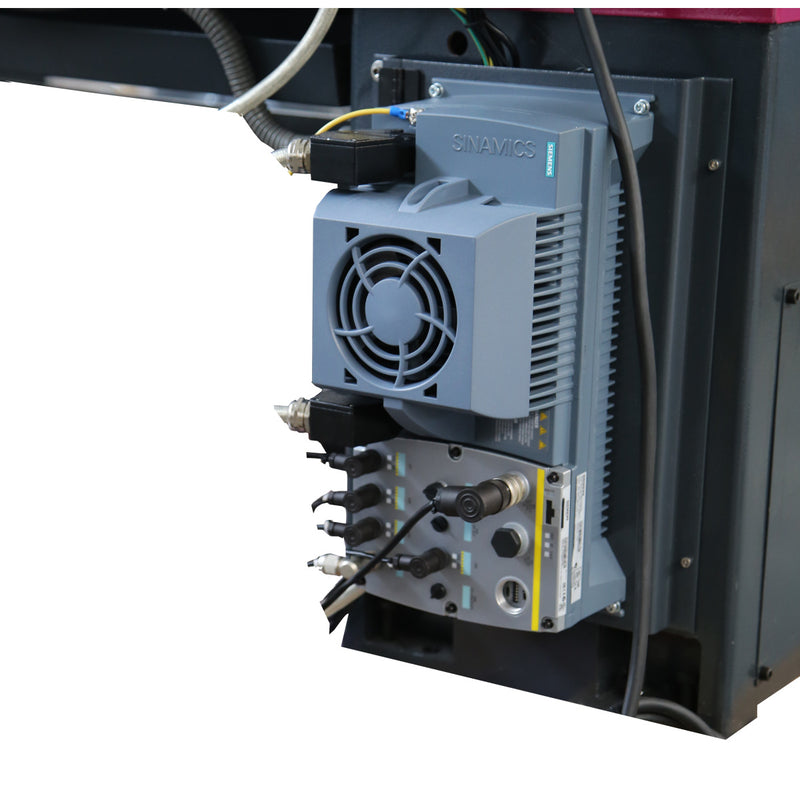

• Speed control: Electronical
• Number of gears: 4
• Speed range: 40 - 3000 min¯¹

Electrical Data

• Drive motor output: 4 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No.5
• Spindle bore: 52 mm

Tailstock

• Tailstock chuck: MT 6

Pitches

• Metric pitch: 0,4 - 7 mm/rev
• Number of metric pitches: 32
• Imperial pitch: 56 - 4 Gg/1"
• Number of imperial pitches: 31

Travel

• Travel upper slide: 98 mm
• Travel cross slide: 185 mm

Feed

• Longitudinal feed range: 0,014 - 0,38 mm/rev
• Number of longitudinal feeds: 26
• Flat feed range: 0,052 - 1,392 mm/rev
• Number of flat feeds: 32

Delivery content

• Three-jaw lathe chuck Ø 200 mm Camlock no. 5
• Fixed steady rest Ø 7 - Ø 102 mm
• Rotating steady rest Ø 10 - Ø 60 mm
• LED machine light
• Adapter MK 6-MK 4
• Non-rotating center point MK4
• Quick-change steel holder SWH 3-E
• Steel holder 20x100 type D for square chisel 18 mm
• Initial machine filling with quality oil
• Operating tool

Transport info

• EAN: 4030635050565
• Customs number: 84581900
• Length: 1840 mm
• Height: 1590 mm
• Width: 850 mm
• Gross weight: 518 kg
• Net weight: 440 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Cutting oil spray 400 ml
