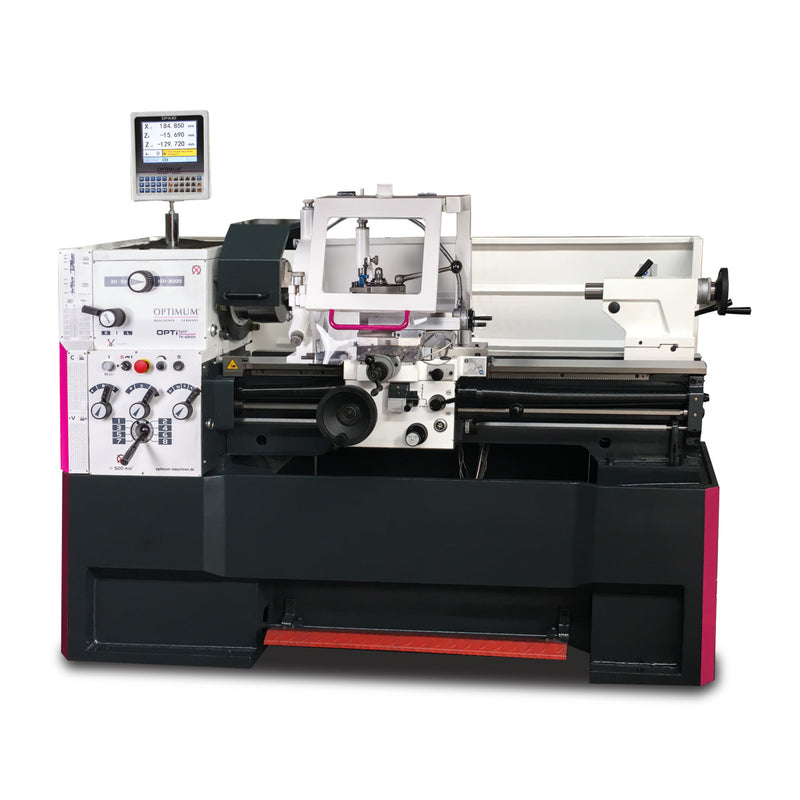

Optimum (3462060) Conventional Centre Lathe OPTIturn TH 4210V

Description

• Hardened and ground Z-axis guideway
• Spindle mount Camlock DIN ISO 702-2 No. 6
• Precisely crafted sled
• Handwheels with adjustable fine scale 0.04 / 0.02 mm
• All guides can be adjusted by wedge strips
• Adjustment range upper slide ± 90 °
• Guaranteed concentricity of the spindle nose better than 0.015 mm
• Main spindle running in oil bath
• Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
• Handwheels decoupled and tested according to EN 23125
• Two-channel right-left switch tested to EN 23125
• Switch with life cycle calculation, tested according to EN ISO 13849
• All metric pitches in the range of 0.2 to 14 mm / rev and all inch threads in the range of 72 - 2 pitch per inch are adjustable without change of the change gears by lever in the control panel
• Right / left rotation on bed carriage via switching spindle switchable
• Central lubrication in the bed slide
• Substructure and machine bed made of casted Meehanite cast in one piece
• leading spindle
• Emergency stop device with foot control
• Safety handwheels with release function in thexand Z axis
• Tailstock for taper turning ± 10 mm adjustable
• Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
• Fast, easy and tool-free adjustment by means of a clamping lever
• Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
• Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
• LED machine lamp in chip protection

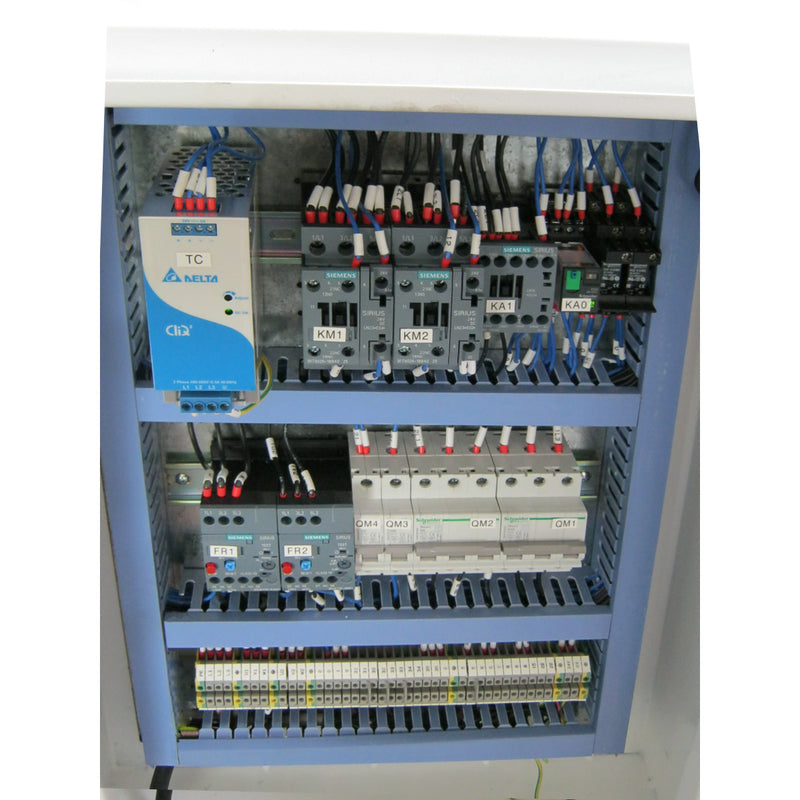

• Siemens Sinamics Frequency Inverter / Safety Integrated
• Quick change steel holder 5-B
• Steel holder 20x100 type D for square chisel 18 mm

Technical data

Dimensions and weights

• Length (product) approx.: 2031 mm
• Width/depth (product) approx.: 915 mm
• Height (product) approx.: 1415 mm
• Net weight approx.: 1162 kg
• Max. width/depth ca.: 1215 mm
• Max. height (product) ca.: 1600 mm

Work areas

• Max. height: 210 mm
• Max. width: 1000 mm
• Swing diameter above machine bed: 420 mm
• Swing diameter in bed bridge: 590 mm
• Swing diameter above planing slide: 250 mm
• Turning length in bed bridge: 260 mm
• Bed width: 250 mm

Equipment

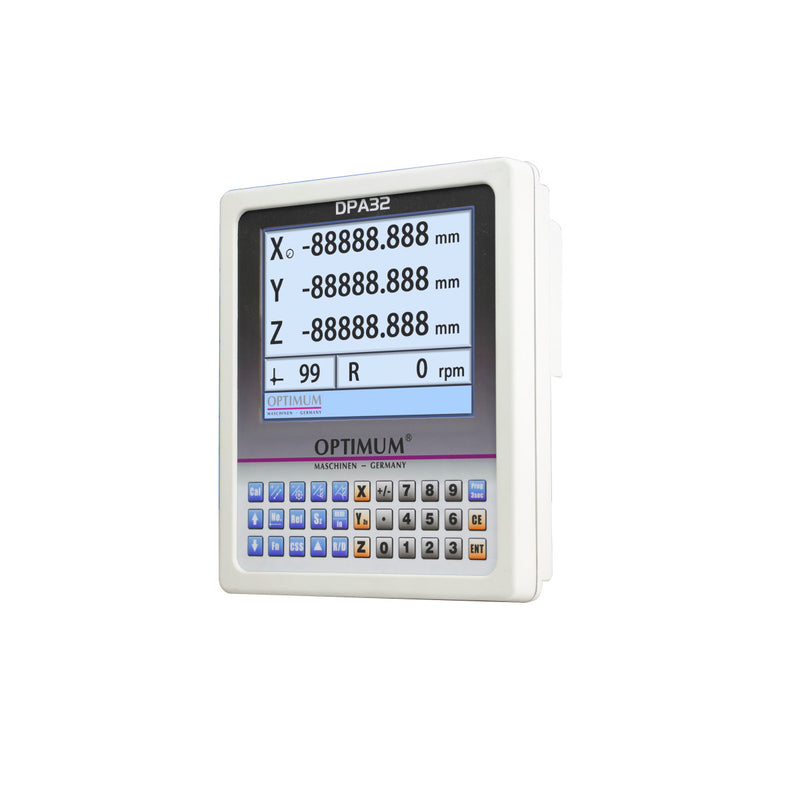

• Digital position indicator: DPA 32

Speed range

• Speed control: electronically adjustable
• Number of gears: 2
• Speed range: 30 - 3000 min-1

Electrical Data

• Drive motor output: 5.5 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz
• Total rated value: 5.6 kW

Cooling lubricant system

• Cooling lubricant system coolant pump output: 100 W

Standards and certifications

• Standard: DIN EN 55011
• EMC level: C3

Spindle

• Spindle chuck: Camlock DIN ISO 702-2 No. 6
• Spindle bore: 52 mm
• Tool holder max. chuck height: 25 mm
• Spindle cone: MT 6

Tailstock

• Tailstock chuck: MT 4
• Tailstock quill stroke: 120 mm
• Tailstock quill diameter: 50 mm

Pitches

• Metric pitch: 0,2 - 14 mm/rev
• Number of metric pitches: 39
• Imperial pitch: 72 - 2 Gg/1"
• Number of imperial pitches: 45
• Diametrical pitch: 8 - 44
• Number of diametrical pitches: 21
• Modular thread pitch: 0,3 - 3,5 mm/rev
• Number of modular thread pitches: 18

Travel

• Travel upper slide: 140 mm
• Travel cross slide: 230 mm
• Travel carriage saddle: 780 mm

Feed

• Longitudinal feed range: 0,05 - 1,7 mm/rev
• Number of longitudinal feeds: 17
• Flat feed range: 0,025 - 0,85 mm/rev
• Number of flat feeds: 17

Delivery content

• Fixed bezel passage Ø 15 - 145 mm
• Running bezel passage Ø 10 - 75 mm
• LED machine light
• Reduction sleeve MK 6 / MK 4
• Fixed centering point MK 4
• Change gear set
• Position stop with fine adjustment
• Initial machine filling with quality oil
• operating tool

Transport info

• EAN: 4030635033292
• Customs number: 84581900
• Length: 1650 mm
• Height: 900 mm
• Width: 2060 mm
• Gross weight: 1350 kg
• Net weight: 1160 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• BISON four-jaw lathe chuck Cast Camlock centric exciting Ø 250 mm Camlock DIN ISO 702-2 No. 6
• BISON four-jaw lathe chuck steel Camlock, centric clamping Ø 250 mm Camlock DIN ISO 702-2 No. 6
• BISON three-jaw lathe chuck Camlock casting centre clamping Ø 250 mm Camlock DIN ISO 702-2 No. 6
• BISON three-jaw lathe chuck steel Ø 250 mm Camlock DIN ISO 702-2 No. 6
• Center drill set 10tlg. 0.75-4.5 mm HSS
• Clamping block set for lathes 20-05
• Collet chuck 5C - No. 6
• Collet set SPC 5C
• Cutting oil spray 400 ml
• Face plate Ø 350 mm Camlock DIN ISO 702-2 No. 6
• Internal turning set 5-piece
• Leveling plate SE 2
• OPTIMUM four-jaw lathe chuck Cast Camlock, centre clamping Ø 250 mm Camlock DIN ISO 702-2 No. 6
• OPTIMUM four-jaw lathe chuck Cast Camlock, single clamping Ø 250 mm Camlock DIN ISO 702-2 No. 6
• OPTIMUM Three-jaw lathe chuck centre clamping Ø 250 mm Camlock DIN ISO 702-2 No. 6
• Revolving centering point MT 4
• Revolving centering point MT 4
• Revolving centering point MT 4
• Spare steel holder 25x120 type D
• Spare steel holder 32x130 type H
• Turning tool set HM 20 mm, 5-part
• Turning tool set HM 20 mm, 5-part
• Turning tool set HM 25 mm, 5-part
• Turning tool set HM 25 mm, 5-part
• Vibration damper machine foot SE 85
