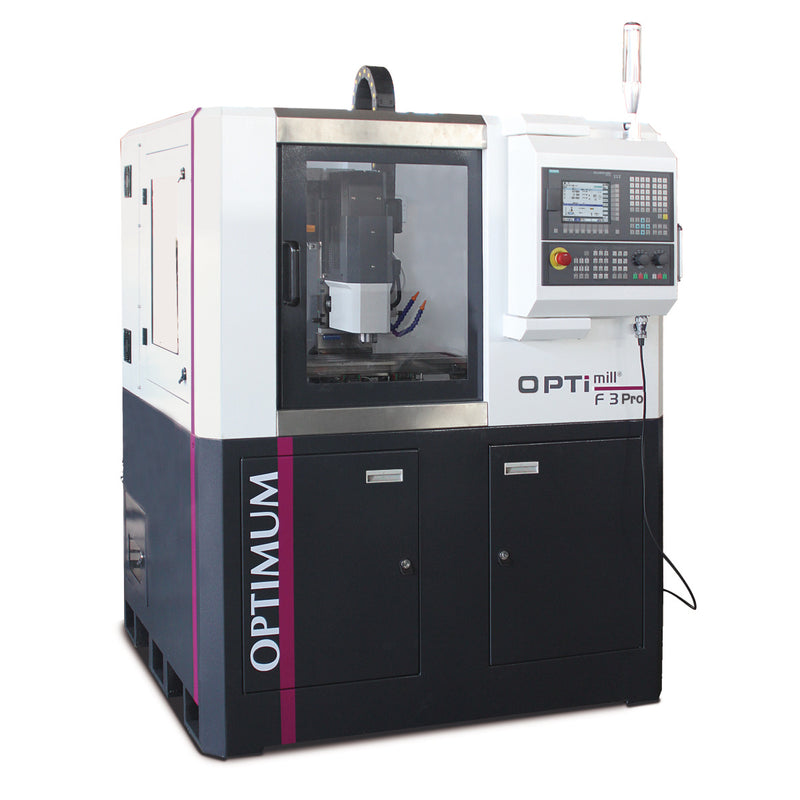

Optimum (3500416) CNC Milling Machine OPTImill F 3Pro

Description

• Linear guide in all axes
• Ball screw in all axes
• Servo drive in all axes (X-, Y- and Z-axis)
• Tool change at the touch of a button (electro-pneumatic tool clamping device)
• Coolant system
• Central lubrication
• Signal light

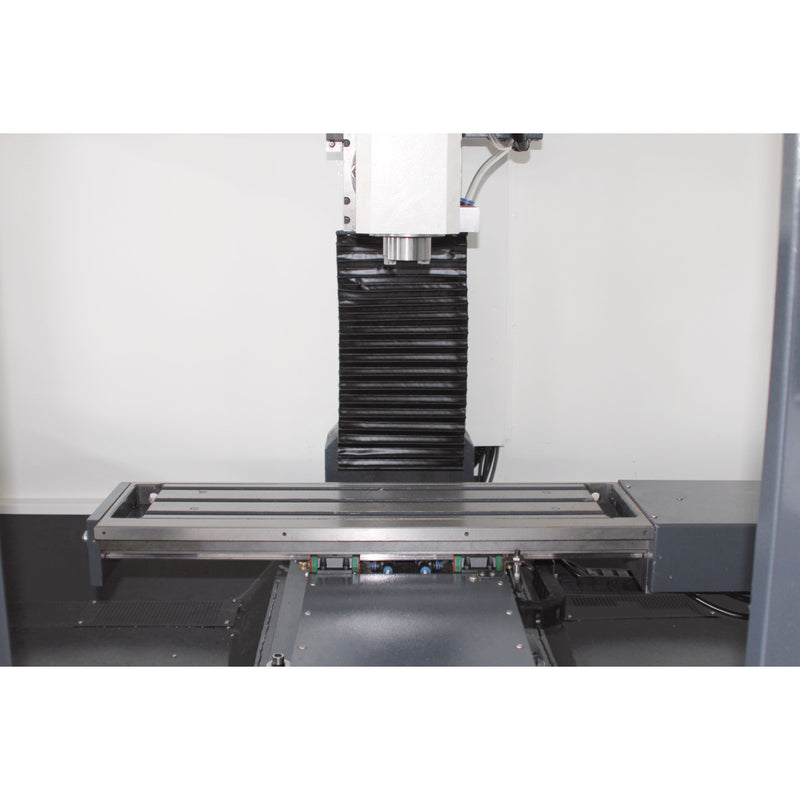

• Massive, exact milling table with large dimensions and precise surface finish
• Pivoting control panel
• The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
• Additional package SIEMENS material defect liability and free on-site service OSS

Technical data

Dimensions and weights

• Length (product) approx.: 1410 mm
• Width/depth (product) approx.: 1522 mm
• Height (product) approx.: 2237 mm
• Net weight approx.: 905 kg

Drilling/milling output

• Max. size milling head: 50 mm
• Max. size shaft milling cutter: 25 mm

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Milling table horizontal

• Horizontal milling table length: 460 mm
• Horizontal milling table width: 200 mm
• Horizontal milling table reach: 270 mm
• Min. clearance vertical spindle - horizontal milling table: 70 mm
• Max. clearance vertical spindle - horizontal milling table: 350 mm
• Horizontal milling table T-groove size: 12 mm
• Horizontal milling table T-groove number: 3
• Horizontal milling table T-groove spacing: 60 mm
• Horizontal milling table max. load bearing capacity: 50 kg

Precision

• Repetition accuracy: ± 0.01 mm
• Positioning accuracy: ± 0.02 mm

Cooling lubricant system

• Coolant pump(s) drive power: 95 W
• Cooling lubricant system tank capacity: 50 l

Travel

• Travelxaxis automatic: 420 mm
• Travel Y axis automatic: 190 mm
• Travel Z axis automatic: 280 mm

Vertical spindle

• Vertical spindle spindle chuck: ISO 30 / BT 30x45°
• Vertical spindle speed: 6000 min¯¹
• Explanation vertical spindle speed range: Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
• Vertical spindle drive motor output continuous operation S1: 1.5 kW
• Vertical spindle torque drive motor continuous operation S1: 9.5 Nm

Feed speed

• X axis feed speed: 15 m/min
• Y axis feed speed: 15 m/min
• Z axis feed speed: 10 m/min

Feed motor torque

• Feed motor torquexaxis continuous operation S1: 3.5 Nm
• Feed motor torque Y axis continuous operation S1: 3.5 Nm
• Feed motor torque Z axis continuous operation S1: 6 Nm

Tool

• Max. tool diameter: 100 mm
• Max. tool weight: 6 kg

Electrical connections

• Total rated value: 4.5 kVA

Product information EU 2023/2854

• Type of the generated data: Usage data
• Format of the generated data: Common, machine-readable formats such as JSON
• Amount of data: Up to 5 MB
• Continuous data generation in real time: Yes
• Data storage location: On the device
• Data access: Via physical interfaces
• Further information: In the operating instructions or at info@stuermer-maschinen.de

Transport info

• EAN: 4030635053894
• Customs number: 84596190
• Length: 1550 mm
• Height: 2385 mm
• Width: 1650 mm
• Gross weight: 928 kg
• Net weight: 905 kg

Optional accessories

• Starter kit BT 30
