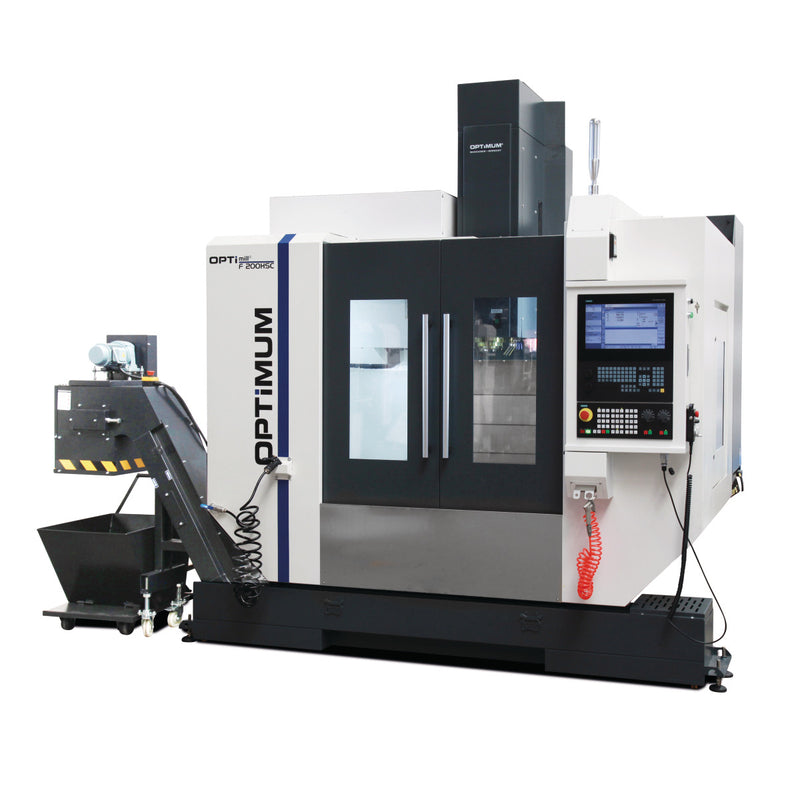

Optimum (3511420) CNC Milling Machine OPTImill F 200HSC

Description

• Heavy-duty design
• High productivity
• High reliability
• Heavily ribbed, torsion-free machine base
• Profile rail with roller recirculation for high rapid traverse speeds in all axes
• High-torque servo drives in all three axes
• Telescopic guideway cover on all three axes
• Automatic lubrication
• Massive, exact milling table with five T-slots, large dimensions and precision-ground
• The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
• Coolant device with chip flushing system and cleaning gun
• Internal spindle cooling with 20 bar
• Belt-type chip conveyor ensures efficient chip removal
• Chip trolley
• RJ45 plug connection and 230 V power connection
• Closed switch cabinet with integrated heat exchanger ensures optimum temperature and prevents the ingress of dirt particles
• Machine light in the work area
• Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus
• 1-year Basic maintenance contract included in D/A/CH

Technical data

Dimensions and weights

• Length (product) approx.: 2400 mm
• Width/depth (product) approx.: 2355 mm
• Height (product) approx.: 2860 mm
• Net weight approx.: 5500 kg

Fast motion speed

• Fast motion speedxaxis: 48000 mm/min
• Fast motion speed Y axis: 48000 mm/min
• Fast motion speed Z axis: 48000 mm/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Milling table horizontal

• Horizontal milling table length: 1000 mm
• Horizontal milling table width: 500 mm
• Min. clearance vertical spindle - horizontal milling table: 100 mm
• Max. clearance vertical spindle - horizontal milling table: 650 mm
• Horizontal milling table T-groove size: 18 mm
• Horizontal milling table T-groove number: 5
• Horizontal milling table T-groove spacing: 100 mm
• Horizontal milling table max. load bearing capacity: 500 kg

Precision

• Repetition accuracy: ± 0.005 mm
• Positioning accuracy: ± 0.005 mm

Cooling lubricant system

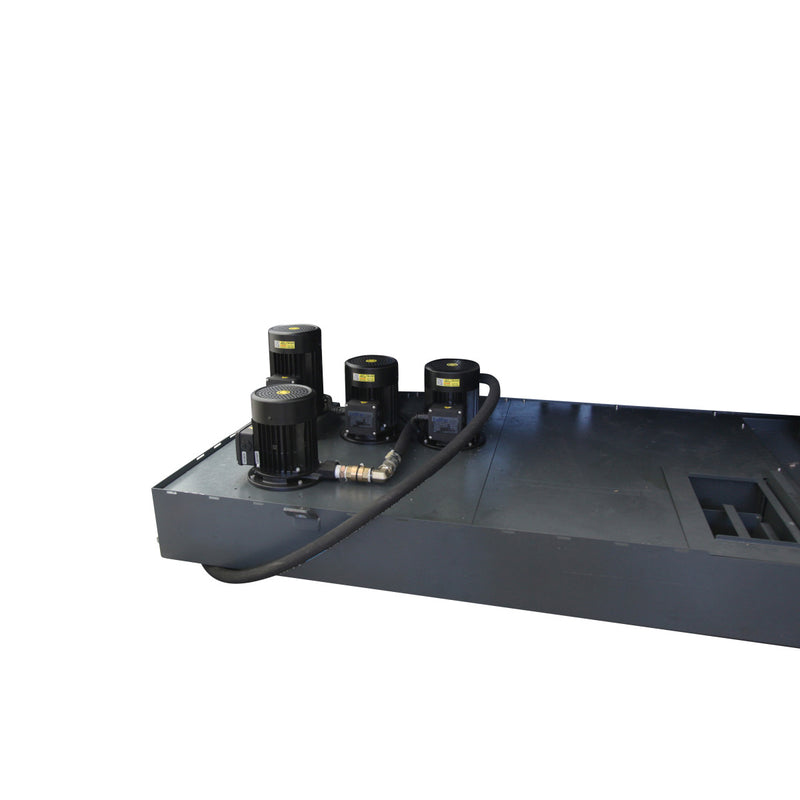

• Number of coolant pumps: 3
• Coolant pump(s) drive power: 1 kW
• Cooling lubricant system tank capacity: 200 l
• Cooling lubricant system flow rate: 35 l/min

Pneumatic connection

• Pneumatic connection operating pressure: 6 - 8 bar
• Pneumatic connection air consumption of the machine: 6 - 8 kg/m³

Travel

• Travelxaxis automatic: 850 mm
• Travel Y axis automatic: 500 mm
• Travel Z axis automatic: 550 mm

Vertical spindle

• Vertical spindle spindle chuck: SK 40 / DIN 69871
• Vertical spindle speed range: 12000 min¯¹
• Vertical spindle drive motor output continuous operation S1: 10,5 kW
• Verticle spindle drive motor output S6-30 % operation: 26,4 kW
• Vertical spindle torque drive motor continuous operation S1: 50 Nm
• Verticle spindle torque drive motor S6-30 % operation: 125 Nm

Feed force

• Feed force X-axis: 5,34 kN
• Feed force Y-axis: 5,34 kN
• Feed force Z-axis: 6,68 kN

Feed motor torque

• Feed motor torquexaxis continuous operation S1: 16 Nm
• Feed motor torque Y axis continuous operation S1: 16 Nm
• Feed motor torque Z axis continuous operation S1: 20 Nm

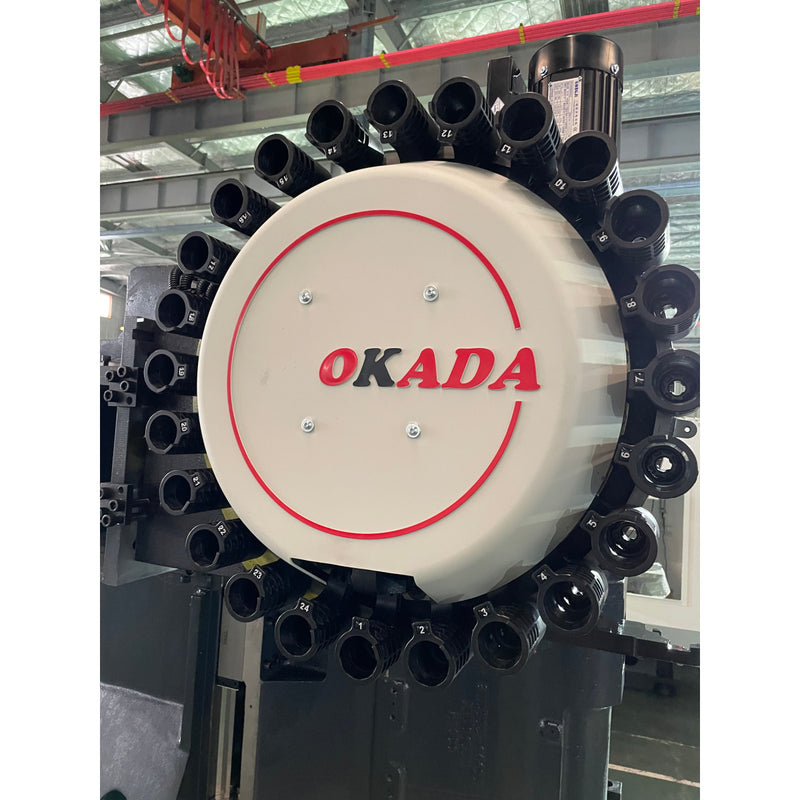

Turret

• Tool changer design: Double arm gripper
• Number of tool slots: 24
• Max. tool diameter adjacent slots free: 120 mm
• Max. tool diameter: 78 mm
• Max. tool length: 300 mm
• Max. tool weight: 8 kg
• Tool change time tool to tool (T to T): 2.5 s

Electrical connections

• Total rated value: 20 kVA

Pump

• Pump motor cleaning gun: 0.53 kW

Transport info

• EAN: 4030635054709
• Customs number: 84596190
• Length: 3900 mm
• Height: 2500 mm
• Width: 2300 mm
• Gross weight: 5500 kg
• Net weight: 5600 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Software DXF reader for SIEMENS SINUMERIK control systems
• Software Myscreens license 828D/840D
• Software Top surface for SIEMENS SINUMERIK control
• Starter kit SK40 / DIN 69871

Equipment options

• 3D printing interface
• 3-D probe Blum ZX-Speed
• 5-axis rotary/swivel table Preparation
• 5-axis rotary/swivel table Three-jaw lathe chuck Ø 100 mm
• Air conditioning
• Axles license 4th and 5th axis
• Fourth axle complete set Rotary indexing table, three-jaw lathe chuck Ø 120 mm and tailstock
• Fourth axle complete set Round dividing table preparation
• Internal spindle cooling CTS 70 bar external
• Oil separator
• Toolchanger 30 Tools
• Universal measuring probe Blum TC52IR
