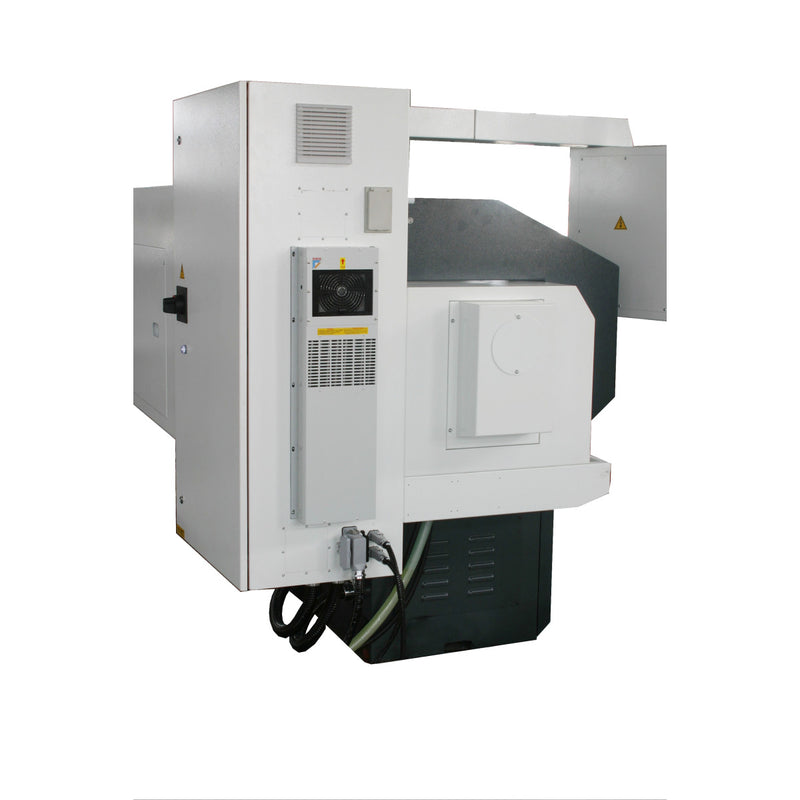

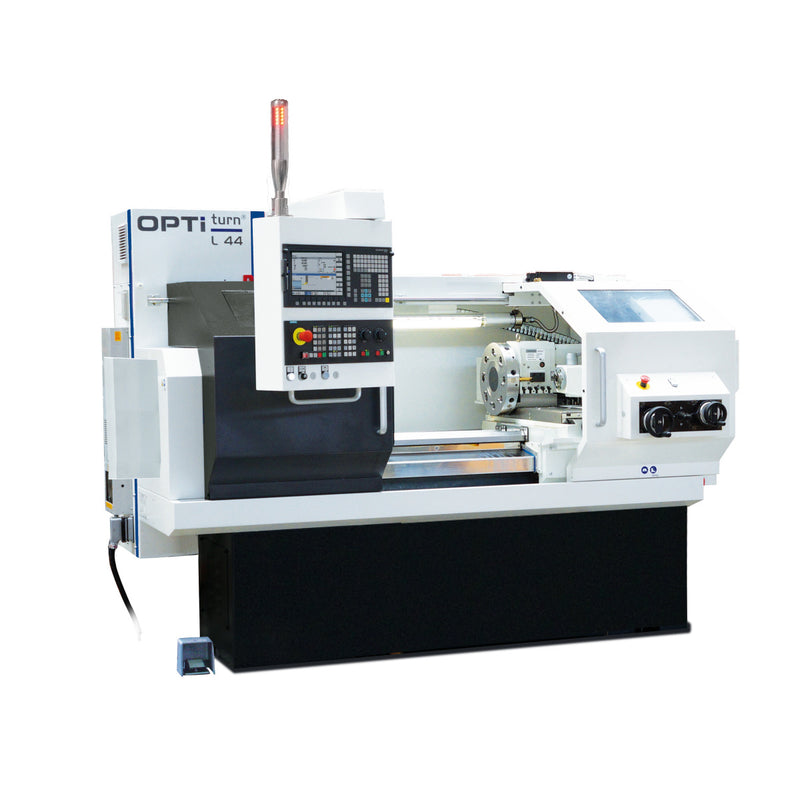

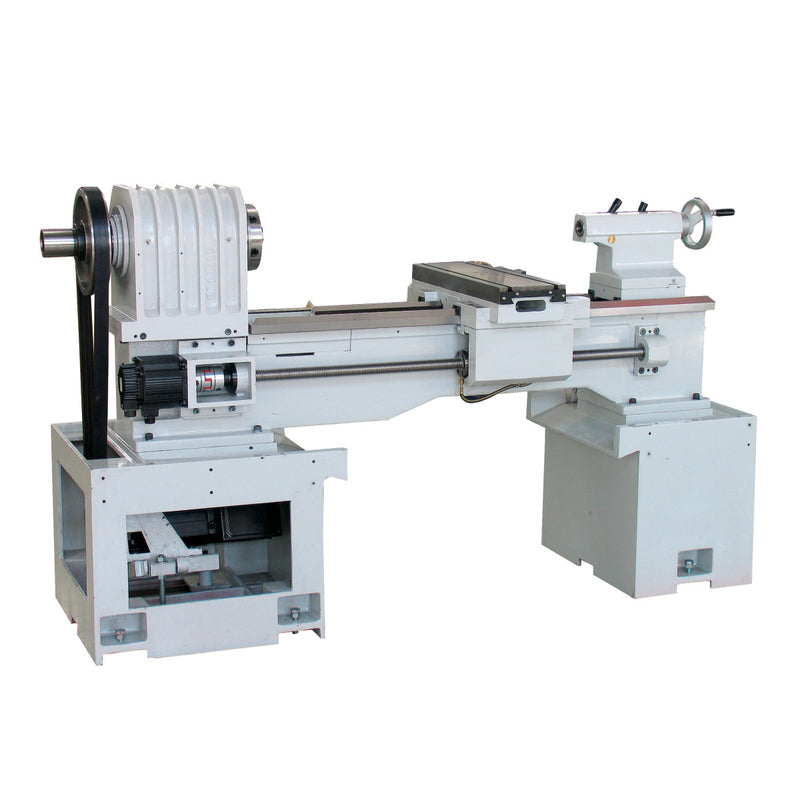

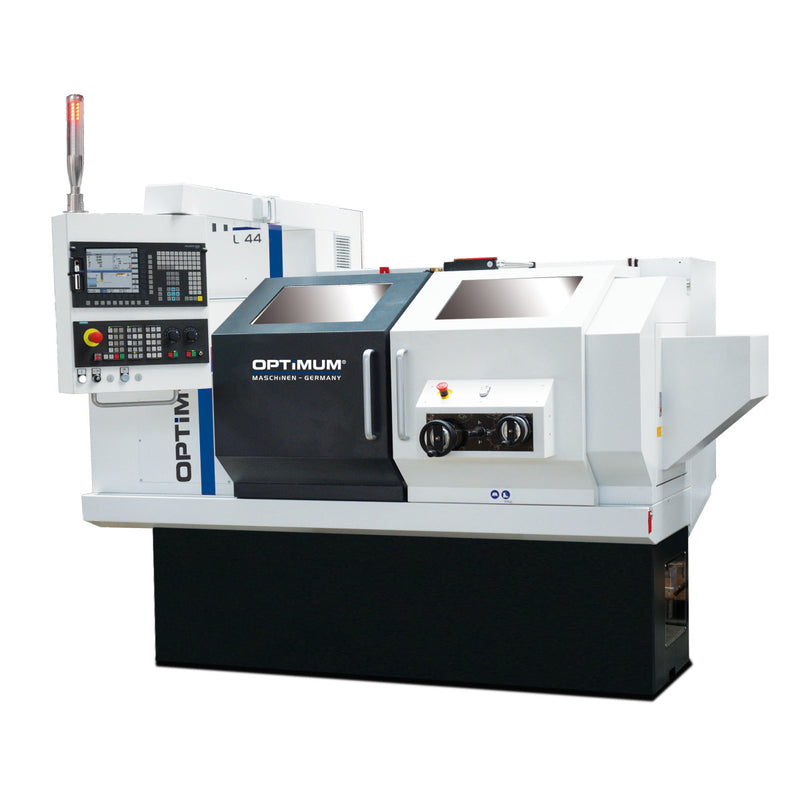

Optimum (3514330) CNC Lathe OPTIturn L 44

Description

• Spindle and servo motors from SIEMENS
• Full enclosure with safety device
• As standard with a maximum spindle speed of 3000 rpm
• Automatic central lubrication
• Swiveling control unit
• Tailstock cover
• Electronic handwheels for thexand Z axes
• Coolant device with 90 liter coolant tank
• RJ45 plug connection, USB connection and 230 V power connection
• EMC (electromagnetic compatibility)
• Six leveling feet
• Operating tools

Technical data

Dimensions and weights

• Length (product) approx.: 2530 mm
• Width/depth (product) approx.: 1595 mm
• Height (product) approx.: 1795 mm
• Net weight approx.: 2600 kg
• Max. width/depth (product) ca.: 2300 mm

Work areas

• Lathe chuck diameter: 150 mm
• Lathe chuck actuation of clamping movement: hydraulic
• Max. height: 223 mm
• Max. width: 850 mm
• Swing diameter above machine bed: 446 mm
• Swing diameter in bed bridge: 520 mm
• Swing diameter above planing slide: 240 mm
• Bed width: 300 mm

Motor torque

• X axis motor torque: 6 Nm
• Z axis motor torque: 8.5 Nm

Speed range

• Number of gears: 1
• Speed range: 10 - 3000 min¯¹

Electrical Data

• Drive motor output: 7 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Precision

• Repetition accuracy: ± 0.005 mm
• Positioning accuracy: ± 0.005 mm

Hydraulic system

• Hydraulic system motor output: 0,75 kW
• Hydraulic system tank capacity: 50 l

Cooling lubricant system

• Cooling lubricant system coolant pump output: 270 W
• Cooling lubricant system tank capacity: 90 l

Ball screw

• Ball screwxaxis diameter: 25 mm
• Ball screw -xaxis pitch P: 5 mm
• Ball screwxaxis precision class: C3
• Ball screw Z axis diameter: 40 mm
• Ball screw - Z axis pitch P: 5 mm
• Ball screw Z axis precision class: C3

Machine data

• Chuck passage diameter: 40 mm

Spindle

• Spindle chuck: DIN ISO 702-1 No. 5
• Spindle bore: 52 mm

Tailstock

• Tailstock chuck: MT 4
• Tailstock quill stroke: 165 mm
• Tailstock quill diameter: 52 mm

Travel

• Travelxaxis: 250 mm
• Travel Z axis: 760 mm

Vertical spindle

• Vertical spindle drive motor output continuous operation S1: 7 kW
• Verticle spindle drive motor output S6-30 % operation: 16 kW
• Vertical spindle drive motor torque: 33 Nm
• Vertical spindle drive motor torque S6-30 % operation: 80 Nm

Feed speed

• X axis feed speed: 15000 mm/min
• Z axis feed speed: 15000 mm/min

Feed force

• Feed force X-axis: 7,5 kN
• Feed force Z-axis: 5.3 kN

Turret

• Tool changer type: hydraulic; VDI 30
• Tool changer number of tool slots: 8 St
• Tool changer max. chuck height, width square: 20x20 mm
• Tool changer max. chuck diameter drilling rod: 25 mm

Electrical connections

• Total rated value: 23 kVA

Motor(s)

• Drive motor torque: 33 Nm

Control

• Type of Control: Sinumerik 828D PPU 240
• Sinumerik 828D system software (factory option): SW 24
• CNC memory: 3 MB
• Look Ahead: 50
• Set change time: 3 ms
• Number of tools: 128

Delivery content

• Tailstock end cover
• Portable electronic handwheel
• 6 pcs. machine feet
• Hydraulic tool turret 8 tools
• operating tool
• Hydraulic 3-jaw chuck Ø 150 mm
• EMC
• Hard and soft block cheeks
• joystick
• heat exchangers

Transport info

• EAN: 4036351130970
• Customs number: 84581180
• Length: 2530 mm
• Height: 1795 mm
• Width: 2300 mm
• Gross weight: 3000 kg
• Net weight: 2600 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Hard top jaw for 3- and 4-jaw lathe chucks hydraulic Ø 200 mm
• Hard top jaw for 3-jaw lathe chuck hydraulic Ø 150 mm
• Soft top jaw for 3- and 4-jaw lathe chucks hydraulic Ø 200 mm
• Soft top jaw for 3-jaw lathe chuck hydraulic Ø 150 mm
• Software DXF reader for SIEMENS SINUMERIK control systems
• Starter kit VDI 30

Equipment options

• 3-jaw lathe chuck hydraulic Ø 200 mm for OPTiturn L 44
• 3-jaw lathe chuck manual Ø 200 mm for OPTiturn L 44
• Bar feeder interface Bar loader Interface Interface für OPTiturn L44
• Bar loader Pro V 65 E for OPTiturn L 44
• Collet Chuck L 44 (instead of standard lathe chuck)
• Control upgrade Siemens PPU 290
• Fixed bezel for OPTiturn L 44
• Four-jaw lathe chuck hydraulic Ø 200 mm for OPTiturn L 44
• Four-jaw lathe chuck manual Ø 250 mm for OPTiturn L 44
• Hydraulic tailstock quill for OPTiturn L 44
• Measuring arm Renishaw HRPA
• Portable electronic handwheel for OPTiturn L 44
• Power transformer for OPTiturn L 44
• Quick change tool holder Multifix 4 for OPTiturn L 44
• Rotating bezel for OPTiturn L 44
• Short bar feeder PRO CONQUEROR OPTiturn L 44
