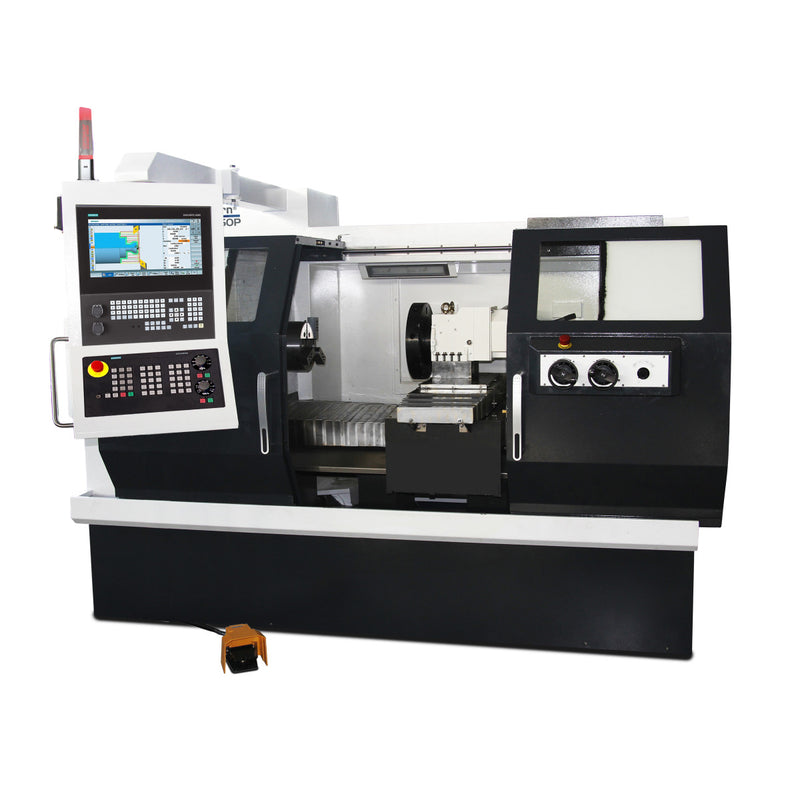

Optimum (3514340) CNC Lathe OPTIturn L 50P

Description

• Precise processing
• SIEMENS spindle and feed motors
• Full enclosure with safety device
• Standard with max. spindle speed up to 3,500 min-1
• Hydraulic lathe chuck
• Ball screws
• Linear guides in all axes
• Automatic central lubrication

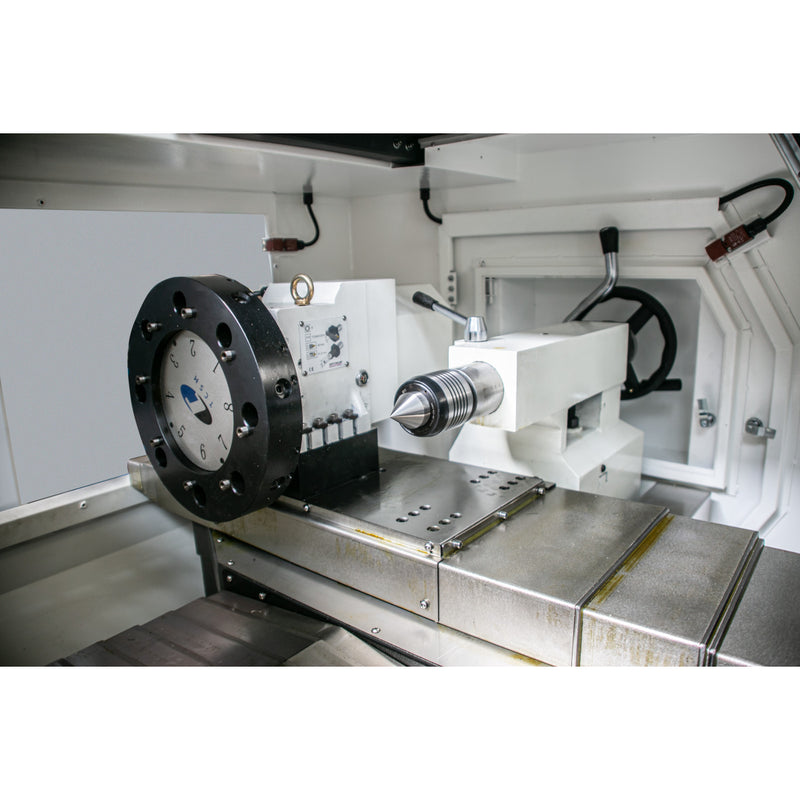

• Servo-hydraulic VDI 30 tool changer with 8 tool places
• Swivelling operating unit
• Electronic handwheels for X- and Z-axis
• Coolant system with 110 litre coolant tank
• RJ45 plug connection, USB connection and 230 V power connection
• EMC (electromagnetic compatibility)
• Six adjustable feet
• Operating tool

Technical data

Dimensions and weights

• Length (product) approx.: 3190 mm
• Width/depth (product) approx.: 1965 mm
• Height (product) approx.: 2052 mm
• Net weight approx.: 4500 kg

Work areas

• Lathe chuck diameter: 210 mm
• Turning length: 618 mm
• Max. height: 245 mm
• Swing diameter above machine bed: 490 mm
• Swing diameter above planing slide: 280 mm
• Bed width: 400 mm

Motor torque

• X axis motor torque: 6 Nm
• Z axis motor torque: 11 Nm

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Precision

• Repetition accuracy: ±0.005 mm
• Positioning accuracy: ±0.005 mm

Hydraulic system

• Hydraulic system motor output: 2,2 kW
• Hydraulic system tank capacity: 50 l

Cooling lubricant system

• Cooling lubricant system coolant pump output: 450 W
• Cooling lubricant system tank capacity: 110 l
• Cooling lubricant system cleaning pump output: 1 kW

Machine data

• Chuck passage diameter: 52 mm

Spindle

• Spindle chuck: ISO 702-1 No. 6 Form A2
• Spindle bore: 66 mm

Tailstock

• Tailstock chuck: MK 5
• Tailstock quill stroke: 150 mm
• Tailstock quill diameter: 75 mm

Travel

• Travelxaxis: 300 mm
• Travel Z axis: 800 mm

Vertical spindle

• Vertical spindle drive motor output continuous operation S1: 9 kW
• Verticle spindle drive motor output S6-30 % operation: 15.8 kW
• Vertical spindle drive motor torque: 57 Nm
• Vertical spindle drive motor torque S6-30 % operation: 95 Nm

Feed speed

• X axis feed speed: 15 m/min
• Z axis feed speed: 20 m/min

Turret

• Tool changer type: Hydraulic Servo. VDI 30
• Tool changer number of tool slots: 8 St
• Tool changer max. chuck height, width square: 20 mm
• Tool changer max. chuck diameter drilling rod: 32 mm

Motor(s)

• Torque at the spindle: 95 Nm

Control

• Sinumerik 828D system software (factory option): SW 26x
• CNC memory: 5 MB
• Look Ahead: 100
• Set change time: 2 ms
• Number of tools: 256

Transport info

• Customs number: 84581180
• Net weight: 0 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Hard top jaw set Four-jaw lathe chuck Ø 210 mm
• Hard top jaw set Three-jaw lathe chuck Ø 210 mm
• Soft jaw Ø 210 mm
• Software DXF reader for SIEMENS SINUMERIK control systems
• Starter kit VDI 30

Equipment options

• Chip conveyor with chip trolley
• Four-jaw lathe chuck Ø 210 mm
• High performance coolant pump 1 kW
• Lifting device
• Measuring arm HPPA Renishaw Ø 200 mm lathe chuck
• Oil separator / oil skimmer
• Tailstock quill Hydraulic
• Measuring arm Renishaw HPPA for OPTIturn L 440 / L 460 / L 50P and Ø 250 mm lathe chuck
