Optimum (3515206) CNC Lathe OPTIturn S 750MY

Description

• Heavy-duty design
• Compact design
• Renishaw measuring arm for manual tool measurement
• Encoder on main spindle for increased accuracy

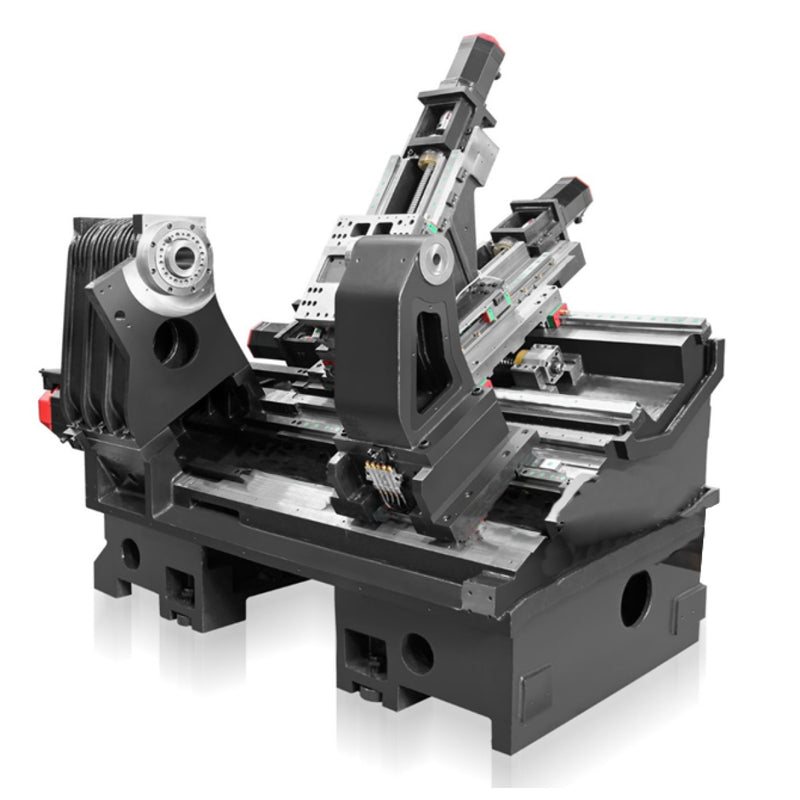

• The entire bed design features numerous reinforcing ribs optimized through finite element analysis, ensuring high rigidity, better heat dissipation (thermal symmetry), and more precise machining.
• Ball screw with improved accuracy, rigidity, and heat resistance.
• Siemens servo motors in all axes.
• All servo motors with integrated encoder for maximum accuracy.
• The motor is located on the side of the machine, preventing heat transfer and vibrations caused by the motor.
• 30° inclined bed design for particularly large machining diameters.
• Better, unhindered chip drainage into the Chip tray
• Hydraulic three-jaw lathe chuck Ø 250 mm with soft jaws
• BMT55 tool changer with 12 tool positions and driven tools

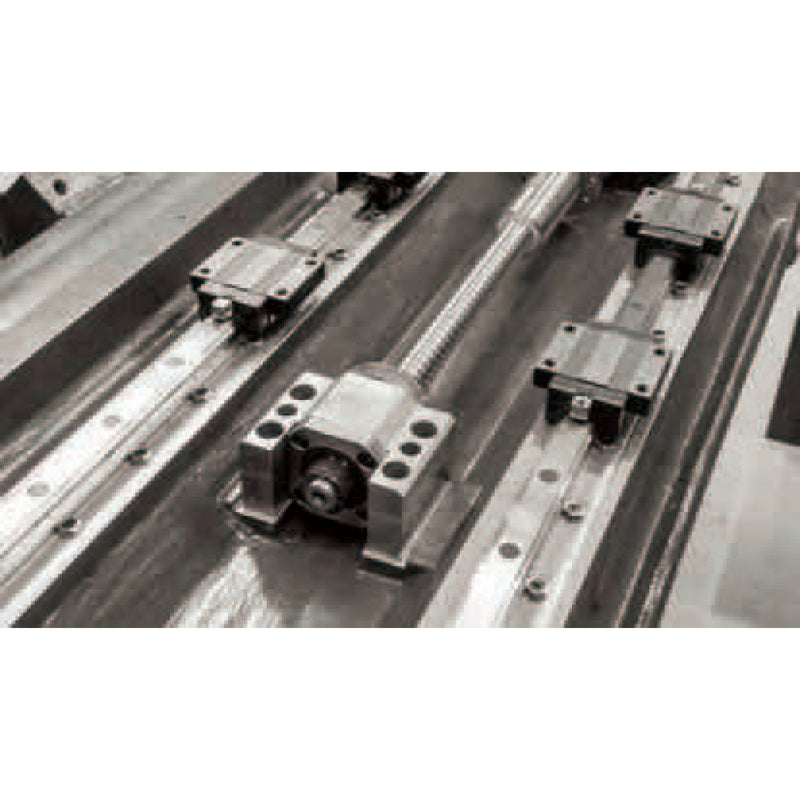

• Hardened and precision-ground ball screws for high rapid traverse speeds in all axes. Linear guide, except for the Y-axis, which has a box guide.
• Device for manual tool measurement

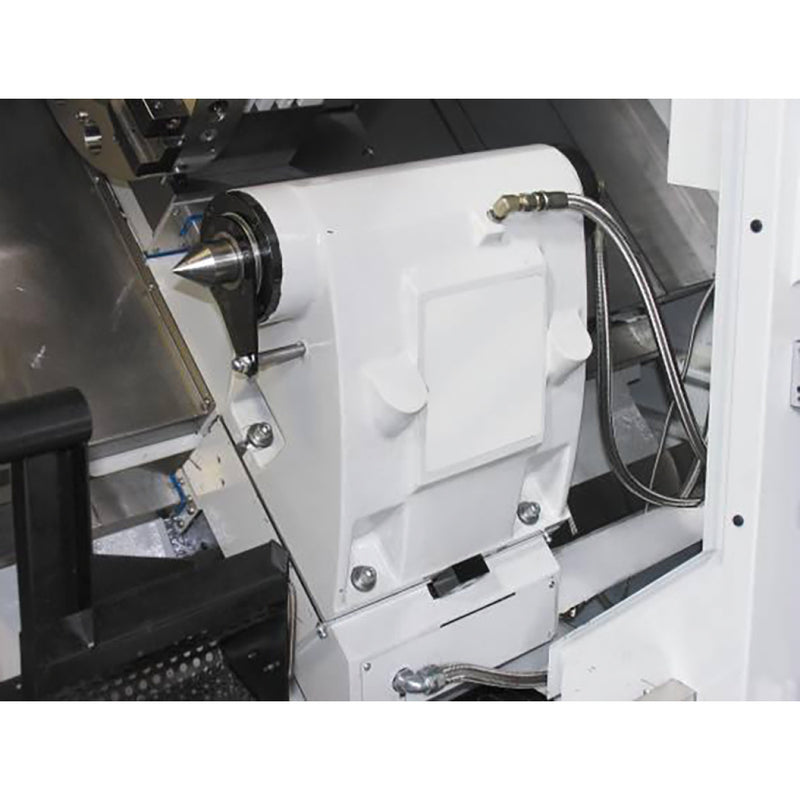

• Tailstock with hydraulic quill
• Air conditioning system
• Portable, electronic handwheel with enabling button and emergency stop push button makes program setup much easier.
• Belt-type chip conveyor ensures efficient chip removal.
• Work light for complete illumination of the work area.
• Coolant system with cleaning gun.
• BMT 55 tool changer
• RJ45 , power interface
• EMC (Electromagnetic Compatibility)
• Additional package SIEMENS material defect liability and free online/on-site service OSS Plus
• 1 year maintenance contract Basic included in D/A/CH

Technical data

Dimensions and weights

• Length (product) approx.: 5040 mm
• Width/depth (product) approx.: 1880 mm
• Height (product) approx.: 1990 mm
• Net weight approx.: 4700 kg

Work areas

• Lathe chuck diameter: 500 mm
• Turning length: 1250 mm
• Swing diameter above machine bed: 660 mm
• Swing diameter above planing slide: 480 mm

Motor torque

• X axis motor torque: 12 Nm
• Y axis motor torque: 12 Nm
• Z axis motor torque: 12 Nm

Speed range

• Speed range: 30 - 3500 min¯¹

Fast motion speed

• Rapid traverse Speed X-axis: 24 m/min
• Rapid traverse Speed Y-axis: 10 m/min
• Rapid traverse Speed Z-axis: 30 m/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Cooling lubricant system

• Cooling lubricant system coolant pump output: 0.7 kW
• Cooling lubricant system tank capacity: 320 l

Machine data

• Chuck passage diameter: 74 mm
• Angled bed: 30 °

Spindle

• Spindle chuck: A2-8
• Spindle hydraulic lathe chuck: 250 mm
• Main spindle bore: 86 mm

Tailstock

• Tailstock chuck: MK 5
• Tailstock quill stroke: 100 mm
• Tailstock quill diameter: 100 mm

Travel

• Travelxaxis: 280 mm
• Travel Z axis: 1280 mm
• Travel Y axis: ± 50 mm

Vertical spindle

• Vertical spindle drive motor output continuous operation S1: 15 kW
• Verticle spindle drive motor output S6-30 % operation: 19.5 kW
• Vertical spindle drive motor torque: 268 Nm
• Vertical spindle drive motor torque S6-30 % operation: 349 Nm

Feed force

• Feed force X-axis: 8.4 kN
• Feed force Y-axis: 18 kN
• Feed force Z-axis: 6.7 kN

Turret

• Tool changer type: BMT55
• Tool changer number of tool slots: 12
• Tool changer drive motor output: 4.8 kW
• Tool changer max. permissible speed at tool coupling: 4000 min¯¹
• Tool changer max. tool torque: 20 Nm

Electrical connections

• Total rated value: 35 kVA

Delivery content

• Axial tool holder driven tools
• Radial tool holder driven tools
• Boring bar holder
• OD tool holder
• End face tool holder
• Boring bar Ø 20 mm
• Boring bar Ø 25 mm
• Boring bar Ø 32 mm

Transport info

• EAN: 4030635050725
• Customs number: 84581180
• Length: 4930 mm
• Height: 2180 mm
• Width: 2220 mm
• Gross weight: 5100 kg
• Net weight: 4700 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Hard jaws 250 mm
• Hard jaws 300 mm
• Soft jaws 250 mm
• Starter kit BMT 55
• Turning tool set 25 mm 6-piece
• Block jaw set hard for four-jaw lathe chuck Ø 300 mm
• Hard jaws 250 mm 4 pieces
• Soft jaws 250 mm 4 pieces

Equipment options

• Bar loader Fedek DH 65 1.25 m Ø 5 - 65 mm
• Bar loader Fedek DH 65L 1,5 m Ø 5 - 65 mm
• Bar loader Fedek GT 326 3 m Ø 3 - 26 mm
• Encoder Heidenhain ERM 2480 for OPTIturn S 750
• Four-jaw lathe chuck Ø 250 mm including jaws
• Four-jaw lathe chuck Ø 250 mm including jaws
• Oil separator
• Parts catcher
• Three-jaw lathe chuck Ø 300 mm including cylinder
