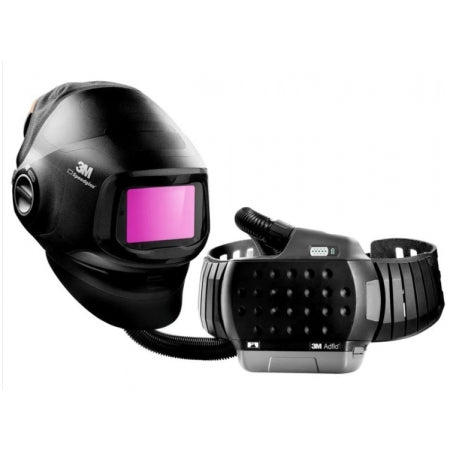

3M Speedglas G5-01 TW Automatic Welding Mask with TACK function and ADFLO system

Product Overview:

• 3M SPEEDGLAS G5-01 TW WELDING MASK WITH TACK FUNCTION
• State-of-the-art welding and grinding helmet made by 3M. Its slim profile and ergonomic design allow the welder to perform any kind of welding even in the tightest spaces.
• This version is equipped with the TW self-darkening filter which, in addition to providing perfect protection during MIG/MAG, TIG and MMA welding, has a tack mode that provides an intermediate degree of protection during return to clear in spot welding.
• Features:
• Variable protection DIN 5, 8-13
• Can be used with all types of MIG/MAG - MMA - TIG welding
• Natural colour technology for sharper vision
• 73 x 109 mm field of view
• Easy airflow adjustment
• Slim, ergonomic profile
• TACK spot welding function
• Easy access in tight spaces
• Transparent protective visor 104 x 170 mm
• Suitable for all types of welding and grinding
• Respiratory protection class TH3 - B3
• Connection to 3M Connected Equipment App via Bluetooth
• Natural Colour Technology
• The TW self-darkening filter features 3M's natural and realistic colour technology. This guarantees the best possible soldering experience with lighter, brighter and extremely lifelike colours.
• Adjustable air flow
• The welder can decide to direct the airflow towards the face, the lens or an intermediate position in addition to the amount of air coming from the top or the two side intakes.
• Human eyes are not suited to handle rapid transitions from dark to light and vice versa. The G5-01 mask uses an intermediate darkening grade DIN 5 to minimise eye fatigue during spot welding. If an arc is not emitted within 2 seconds, the filter returns to its normal DIN 3 light state.
• Battery_x0001_1500 hour
• Classification_x0001_1/1/1/1
• Dark state_x0001_DIN 8-13
• Light state_x0001_DIN 3
• Protection UV/IR_x0001_DIN 13 (permanent)
• Intermediate dimming_x0001_DIN 5
• Darkening time_x0001_0.1 ms (+23°C)
• Return-to-clear time_x0001_50 - 1300 ms
• Sensors_x0001_4
• Standards_x0001_EN 175:B - EN 379 - EN 166:B - EN 12941(TH3) - EN14594(3B)
• AdFlo electro-ventilated respirator
• The Adflo respirator is specially designed for the welding field, providing continuously filtered air for increased protection and comfort even during prolonged use.
• The standard ultra-light lithium-ion battery provides a runtime of up to 9 hours, completing the recharge cycle in approximately 4.5 hours.
• The air flow is kept constant at 170 litres per minute, regardless of the battery charge status or the particle load of the filter. The air flow can also be set to 200 l/min to ensure maximum comfort for those working in hot and humid environments.
• Depending on the type of filter installed, the Adflo respirator provides effective protection against dust and gases developed during welding and grinding processes. The dust and gas filter can be replaced independently as required.
• Air flow_x0001_170 - 200 l/min
• Battery type_x0001_Standard Lithium-ion
• Battery life_x0001_7 - 9 hours
• Charging time_x0001_4,5 hours
• Mount_x0001_Belt
• Protection level_x0001_NPF 50-500 (depending on headgear)
• NPVI Mktg_x0001_Yes
• Approval_x0001_CE
• Standard_x0001_EN 12941
