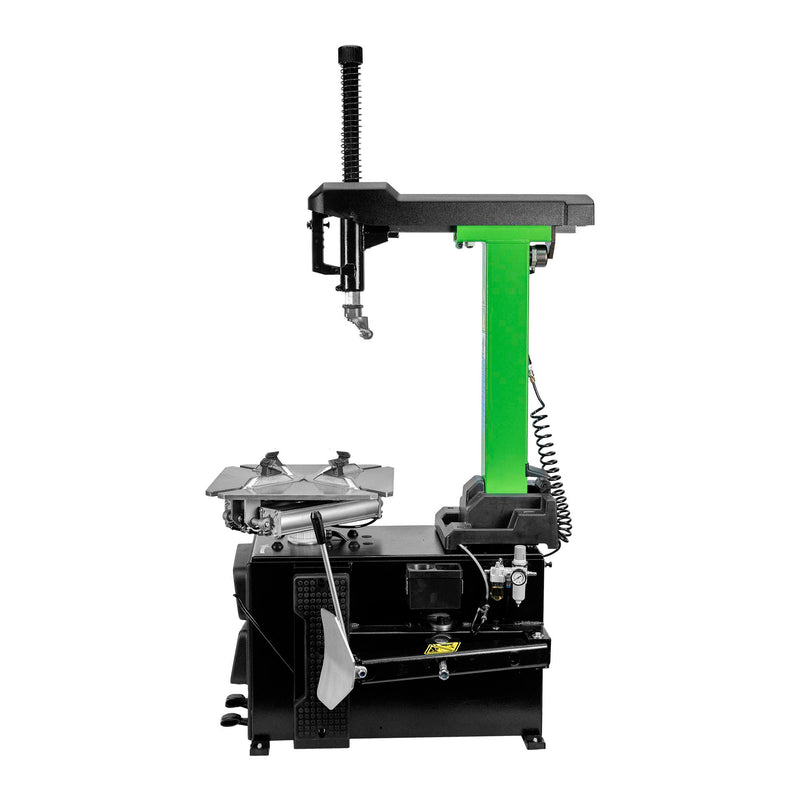

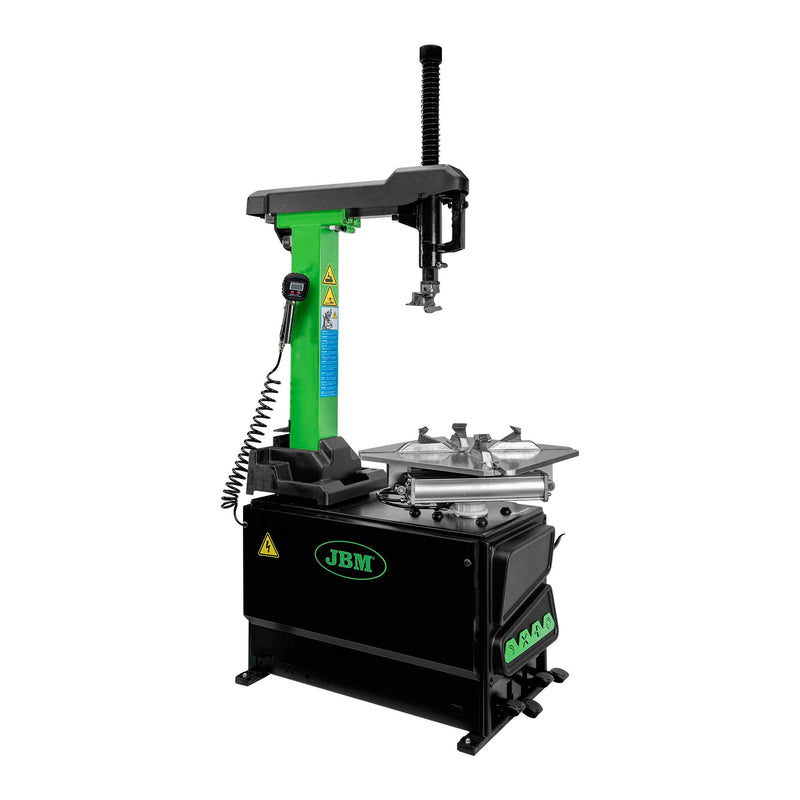

JBM (55021) Tyre Changer with Automatic Tilting Tower 380V

Product Description:

• Equipped with a hexagonal pressure bar, the pneumatic vertical arm automatically positions the mounting head over the rim, incorporating a pneumatic locking and automatic positioning system for greater precision and safety.
• It features cast monoblock jaws, robust and durable, designed for long service life even under heavy-duty conditions.
• Tilting tower: saves time adjusting the head thanks to automatic, precise, and secure alignment. Its inclined design, with pneumatic locking and automatic positioning system, facilitates the operator’s work and improves efficiency.

Technical specifications:

• Required air pressure: 10 bar (116–145 psi)
• Power supply: 380 V
• Motor power: 0.75 / 1.1 kW
• Noise level: ≤75 dB
• Net / gross weight: 210 / 234 kg (462 / 515.8 lbs)
• Packaging dimensions: 960 × 760 × 800 mm (3.1 × 2.5 × 2.6 ft)
• Maximum tire width: ≤355 mm (14")
• Maximum tire diameter: <1000 mm (39")
• Internal clamping for wheels 12" to 24"
• External clamping for wheels 10" to 21"
