Optimum (3034263) Gear Drilling Machine OPTIdrill DH 45V

Description

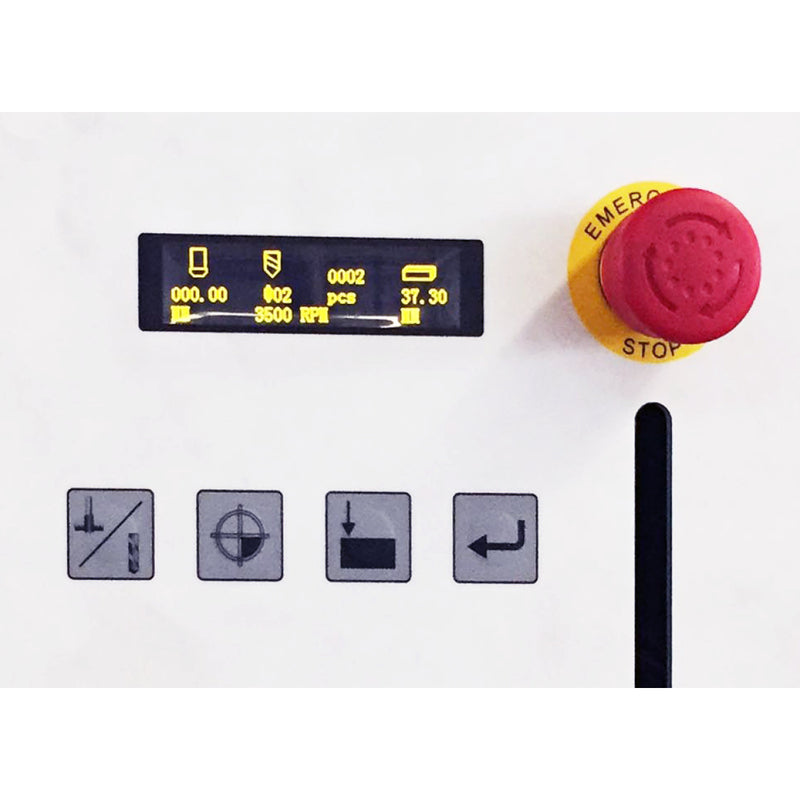

• Dirt- and water-resistant, easy-to-clean membrane keypad
• 24V DC electronics
• Drilling depth stop
• Automatic gear lubrication via oil pump
• Thread cutting device
• Machine light integrated in the drill head
• Main switch
• Large, height-adjustable safety screen with safety switch for maximum user protection Large, solid drill table, precisely machined with parallel T-slots and continuous cooling water channel, height-adjustable safety screen with safety switch for maximum user protection
• Large, solid drill table, precisely machined with parallel T-slots and circumferential cooling water channel, heavily ribbed at the rear, can be tilted sideways by ± 90°
• Coolant device and external coolant tank can be removed for easy and complete emptying
• Extremely stable, thick-walled cast column for high force absorption
• Solid base plate with parallel T-slots, precisely surface-finished
• Optional foot switch for switching between clockwise and counter-clockwise rotation and for thread cutting (item no. 3050032) available

Technical data

Dimensions and weights

• Length (product) approx.: 880 mm
• Column diameter: 150 mm
• Width/depth (product) approx.: 595 mm
• Height (product) approx.: 2445 mm
• Net weight approx.: 550 kg

Drilling performance

• Drilling performance steel (S235JR): 40 mm
• Continuous drilling performance steel (S235JR): 35 mm
• Thread tapping steel (S235JR): M 30

Drilling table

• Drilling table workspace length: 530 mm
• Drilling table workspace width: 530 mm
• Drilling table T-groove size: 18 mm
• Drilling table T-groove number: 3
• Drilling table T-groove spacing: 125 mm
• Drilling table rotation: 360 °
• Drilling table angle: 90 °
• Drilling table load bearing capacity: 250 kg
• Max. distance spindle - drilling table: 740 mm
• Min. distance spindle - drilling table: 130 mm

Speed range

• Speed range: 30 - 2430 min¯¹
• Number of gears: 4 Steps
• Speed control: Electronical

Electrical Data

• Drive motor output: 2,2 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1210 mm
• Machine base workspace length: 435 mm
• Machine base workspace width: 445 mm
• Machine base T-groove size: 18 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 150 mm

Spindle

• Quill stroke: 170 mm
• Spindle chuck: MT 4
• Reach: 350 mm
• Quill feed: automatic
• Quill feed speed: 0,1 - 0,2 mm/rev
• Quill feed gears: 3 Steps

Motor(s)

• Coolant pump drive motor output: 100 W

Product information EU 2023/2854

• Type of the generated data: Usage data
• Format of the generated data: Common, machine-readable formats such as JSON
• Amount of data: Up to 5 MB
• Continuous data generation in real time: Yes
• Data storage location: On the device
• Data access: Via wireless interfaces
• Further information: In the operating instructions or at info@stuermer-maschinen.de

Delivery content

• Keyless chuck 1 - 16 mm
• Morse cone MK 4-B16
• Transmission oil

Transport info

• EAN: 4030635056147
• Customs number: 84592900
• Length: 2540 mm
• Height: 1110 mm
• Width: 700 mm
• Gross weight: 680 kg
• Net weight: 550 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Cutting oil spray 400 ml
