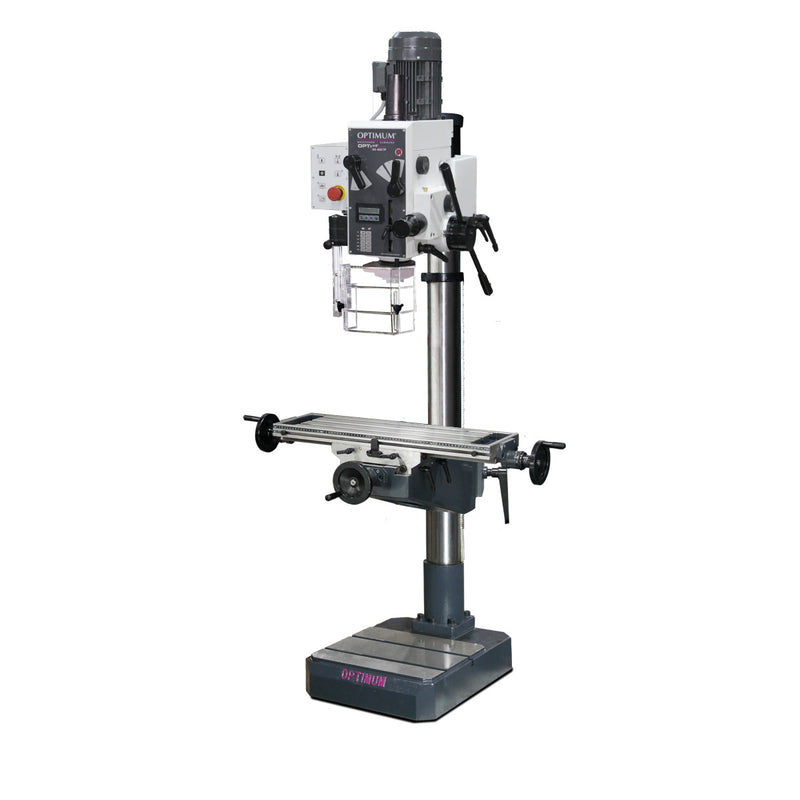

Optimum (3035362) Gear Drilling Machine OPTIdrill DH 40CTP
SKU 3035362
Iva incluído
Comercializamos peças de reparação/substituição (info@flexomaq.com)
Technical data
Dimensions and weights
- Length (product) approx.: 1060 mm
- Width/depth (product) approx.: 745 mm
- Height (product) approx.: 2090 mm
- Net weight approx.: 370 kg
Drilling performance
- Drilling performance steel (S235JR): 32 mm
- Continuous drilling performance steel (S235JR): 28 mm
- Thread tapping steel (S235JR): M 16
Drilling table
- Drilling table workspace length: 730 mm
- Drilling table workspace width: 210 mm
- Drilling table T-groove size: 14 mm
Speed range
- Speed range: 95 - 3200 min¯¹
- Number of gears: 2x6 Steps
Electrical Data
- Drive motor output: 1.1 / 1.5 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Spindle
- Quill stroke: 120 mm
- Spindle chuck: MT 4
- Reach: 280 mm
- Quill feed: automatic
- Quill feed speed: 0.1 - 0.26 mm/U
Travel
- Travelxaxis manual: 480 mm
- Travel Y axis manual: 180 mm
- Travel Z axis manual: 560 mm
Transport info
- EAN: 4030635056642
- Customs number: 84592900
- Height: 1890 mm
- Width: 760 mm
- Gross weight: 410 kg
- Net weight: 340 kg
