Optimum (3511232) CNC Milling Machine OPTImill F 310HSC

Description

• Siemens Sinumerik 828D control with 15.6" touch display
• Heavy design
• High productivity
• High reliability

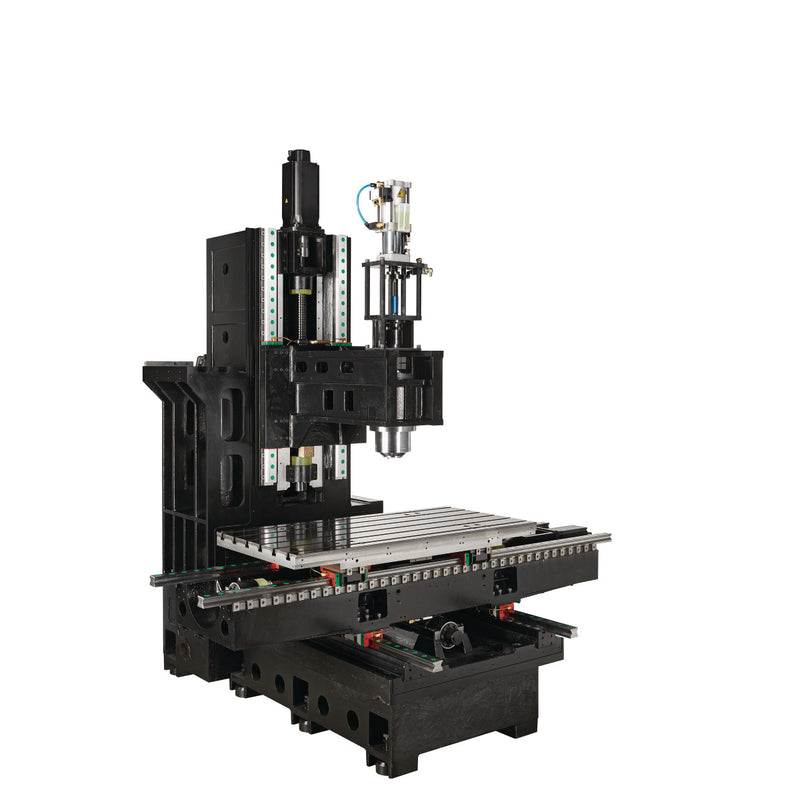

• Strongly ribbed, torsion-free machine base
• Profile rail with roller circulation in all axes for high loads
• High-torque servo drives, directly on the ball screw in all three axes
• Precision ground, Preloaded high-performance recirculating ball screw (Ø 40 mmxP16xC3) for high rapid traverse speeds in all axes
• Telescopic guideway cover on all three axes
• Main spindle SK40 up to 10,000 rpm with belt drive or up to 12,000 rpm with inline spindle
• Solid, precise milling table with four T-slots, large dimensions and precision ground
• The portable, electronic handwheel with enabling button and emergency stop button makes it much easier to run programs
• Tool changer double arm gripper with 30 tool places
• Coolant device with 520 liter coolant tank with chip flushing system and cleaning gun
• Chip conveyor in belt design ensures efficient chip removal
• Chip trolley
• RJ45 plug connection, USB and 230 V power connection
• Closed switch cabinet with integrated heat exchanger ensures the optimum temperature and prevents the penetration of dirt particles
• Oil separator
• Machine light in the work area

Technical data

Dimensions and weights

• Length (product) approx.: 3060 mm
• Width/depth (product) approx.: 2286 mm
• Height (product) approx.: 2928 mm
• Net weight approx.: 7000 kg
• Max. length (product) ca.: 4319 mm

Drilling/milling output

• Max. size milling head: 63 mm
• Max. size shaft milling cutter: 32 mm

Fast motion speed

• Fast motion speedxaxis: 30000 mm/min
• Fast motion speed Y axis: 30000 mm/min
• Fast motion speed Z axis: 30000 mm/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Milling table horizontal

• Horizontal milling table length: 1200 mm
• Horizontal milling table width: 600 mm
• Min. clearance vertical spindle - horizontal milling table: 100 mm
• Max. clearance vertical spindle - horizontal milling table: 750 mm
• Horizontal milling table T-groove size: 16 mm
• Horizontal milling table T-groove number: 6
• Horizontal milling table T-groove spacing: 100 mm
• Horizontal milling table max. load bearing capacity: 800 kg

Precision

• Repetition accuracy: ± 0.005 mm
• Positioning accuracy: ± 0.005 mm

Cooling lubricant system

• Number of coolant pumps: 3
• Coolant pump(s) drive power: 930 / 850 (1 pump) W
• Cooling lubricant system tank capacity: 520 l
• Cooling lubricant system flow rate: 155 l/min

Pneumatic connection

• Pneumatic connection operating pressure: 6 bar

Travel

• Travelxaxis automatic: 1050 mm
• Travel Y axis automatic: 600 mm
• Travel Z axis automatic: 600 mm

Vertical spindle

• Vertical spindle spindle chuck: SK 40 DIN 69871
• Vertical spindle speed range: 10000 min¯¹
• Explanation vertical spindle speed range: Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
• Vertical spindle drive motor output continuous operation S1: 11 kW
• Verticle spindle drive motor output S6-30 % operation: 31,4 kW
• Verticle spindle torque drive motor S6-30 % operation: 200 Nm
• Vertical spindle drive motor torque: 70 Nm

Feed force

• Feed force X-axis: 6,7 kN
• Feed force Y-axis: 6,7 kN
• Feed force Z-axis: 10 kN

Feed motor torque

• Feed motor torquexaxis continuous operation S1: 18 Nm
• Feed motor torque Y axis continuous operation S1: 18 Nm
• Feed motor torque Z axis continuous operation S1: 27 Nm

Turret

• Tool changer design: Double arm gripper
• Number of tool slots: 30 Tools
• Max. tool diameter adjacent slots free: 125 mm
• Max. tool diameter: 80 mm
• Max. tool length: 300 mm
• Max. tool weight: 8 kg
• Tool change time chip to chip (C to C): 8.66 s

Electrical connections

• Total rated value: 40 kVA
• Total rated value for optional Inline spindle: 56 kVA

Control

• Control type: Sinumerik 828D
• System software: SW 28x
• CNC memory: 8 MB
• Set change time: 1 ms
• Look Ahead: 150
• Number of tools: 512

Inline spindle

• Inline spindle speeds: 12000 min¯¹
• Inline spindle output drive motor continuous operation S1: 20 kW
• Inline spindle torque drive motor continuous operation S1: 96 Nm
• Inline spindle output drive motor 30% operation S6: 50.3 kW
• Inline spindle torque drive motor 30% operation S6: 240 Nm

Transport info

• EAN: 4030635036385
• Customs number: 84596190
• Length: 6680 mm
• Height: 2570 mm
• Width: 2300 mm
• Gross weight: 7450 kg
• Net weight: 7000 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• 3D printing interface
• Software DXF reader for SIEMENS SINUMERIK control systems
• Software Top surface for SIEMENS SINUMERIK control
• Starter kit SK40 / DIN 69871

Equipment options

• Automatic side door F 310HSC
• 3-D probe Blum ZX-Speed
• 4-axis rotary dividing table OPTImill F150-F410HSC
• 5-axes rotary-/swivel table for OPTImill F 310HSC / F 410HSC
• 5-axes rotary-/swivel table for OPTImill F 310HSC/F410HSC#
• 5-axes rotary-/swivel table Preparation
• Air conditioning for OPTImill F 210HSC / F 310HSC / F 410 HSC
• Axles license 4th and 5th axis
• Internal spindle cooling CTS External power unit, 70 bar
• Internal spindle cooling CTS External unit, 20 bar
• Internal spindle cooling CTS External unit, 20 bar
• Laser system for tool measurements Renishaw OMP 60
• Laser system for tool measurements Renishaw TS 27R
• Laser system Renishaw NC 4
• Machine preparation - Fourth axis para OPTImill F 150HSC
• Power Transformer
• Universal measuring probe Blum TC52IR
