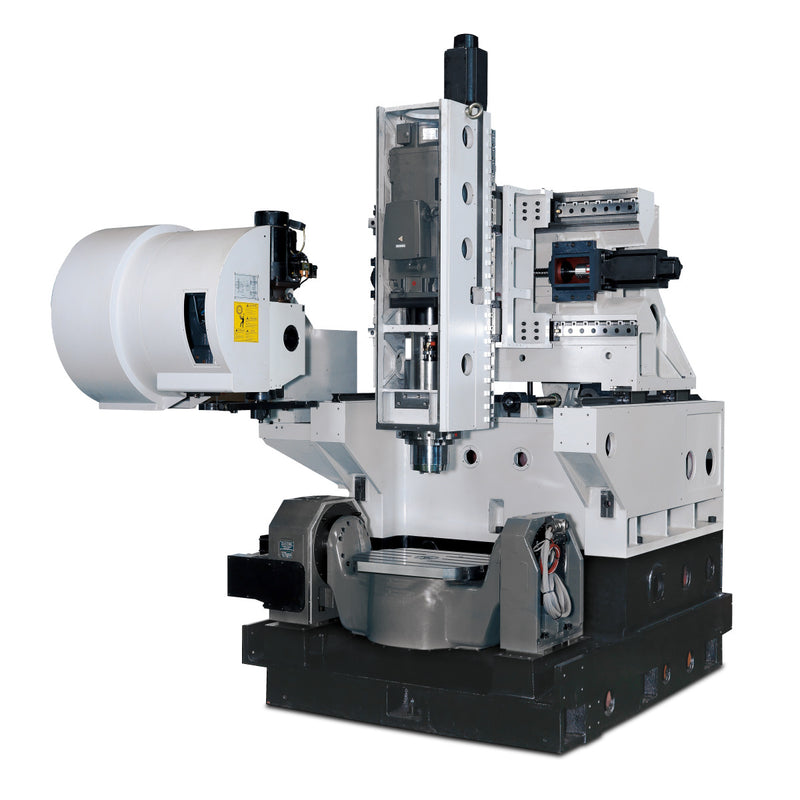

Optimum (3511375) CNC Milling Machine OPTImill FU 5/3+2

Description

• Robust design
• High productivity
• Telescopic guideway cover
• Hardened and precision-ground ball screws for high rapid traverse speeds
• Spindle in P5 precision bearings mounted and permanently lubricated
• High-torque servo drives in all five axes
• Precision linear guide
• Glass scales
• High rapid traverse speed of up to 36 m/min
• C-axis with torque motor for maximum speed and lifetime accuracy
• A-axis with worm gear for high torque when tilting
• The portable, electronic handwheel with enabling button and emergency stop impact switch makes it much easier to run programs
• Tool changer double-arm gripper with 32 tool places in the standard scope of delivery (optionally available with 48 or 60 tool places)
• Coolant device with 380 liter coolant tank with chip flushing system and cleaning gun
• Automatic central lubrication
• RJ45 plug connection, USB and power connection 230 V
• Additional USB interface in the control panel
• Water circuit cooling unit for the main spindle and main spindle motor
• Chip conveyor in belt design ensures efficient chip removal
• Chip trolley
• EMC (electromagnetic compatibility)

Technical data

Dimensions and weights

• Length (product) approx.: 3015 mm
• Width/depth (product) approx.: 4440 mm
• Height (product) approx.: 3000 mm
• Net weight approx.: 9150 kg

Fast motion speed

• Fast motion speedxaxis: 36000 mm/min
• Fast motion speed Y axis: 36000 mm/min
• Fast motion speed Z axis: 36000 mm/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Milling table horizontal

• Horizontal milling table length: 500 mm
• Horizontal milling table width: 420 mm
• Horizontal milling table T-groove size: 14 mm
• Horizontal milling table T-groove number: 7
• Horizontal milling table T-groove spacing: 75 mm
• Horizontal milling table max. load bearing capacity: 600 kg

Precision

• Repetition accuracy: ± 0.004 mm
• Positioning accuracy: ± 0.008 mm

Cooling lubricant system

• Cooling lubricant system tank capacity: 380 l
• Tank capacity external CTS unit: 165 l

Pneumatic connection

• Pneumatic connection operating pressure: 6 bar

Travel

• Travelxaxis automatic: 600 mm
• Travel Y axis automatic: 600 mm
• Travel Z axis automatic: 500 mm

Vertical spindle

• Vertical spindle spindle chuck: SK 40 DIN 69871
• Vertical spindle speed range: 15000 min¯¹
• Vertical spindle drive motor output continuous operation S1: 25 kW
• Verticle spindle drive motor output S6-30 % operation: 40 kW
• Vertical spindle torque drive motor continuous operation S1: 105 Nm
• Verticle spindle torque drive motor S6-30 % operation: 261 Nm

Feed speed

• Acceleration X, Y, Z axis: 7 m/s²

Feed force

• Feed force X-axis: 10 kN
• Feed force Y-axis: 10 kN
• Feed force Z-axis: 10 kN

Feed motor torque

• Feed motor torquexaxis continuous operation S1: 20 Nm
• Feed motor torque Y axis continuous operation S1: 20 Nm
• Feed motor torque Z axis continuous operation S1: 20 Nm

Turret

• Tool changer design: Double arm gripper
• Number of tool slots: 32 Tools
• Max. tool diameter adjacent slots free: 120 mm
• Max. tool diameter: 78 mm
• Max. tool length: 300 mm
• Max. tool weight: 7 kg
• Tool change time chip to chip (C to C): 9.33 s

Rotary axis

• Rotary axis max. permissible torque (S1): 393 Nm
• Rotary axis max. permissible torque (S6): 707 Nm
• Rotary axis swivel axis: ±120 °
• Rotary axis rotation axis: 360 °
• Rotary axis Max. speed A axis: 16,6 min¯¹
• Rotary axis Max. speed C axis: 90 min¯¹

Electrical connections

• Total rated value: 70 kVA

Pump

• Pump motor chip flushing: 0,85 kW
• Pump motor chip flushing conveying rate: 150 l/min
• Pump motor front/left chip flushing: 1.08 kW
• Pump motor front/left chip flushing delivery rate: 150 l/min
• Pump motor cleaning gun: 0.53 kW
• Pump motor cleaning gun delivery rate: 58 l/min

Tilting and rotating table

• Hydraulic clamping torque swivel axis C (at 50 bar hydraulic pressure): 1200 Nm
• Hydraulic clamping torque swivel axis A (at 50 bar hydraulic pressure): 2900 Nm

Transport info

• EAN: 4030635044563
• Customs number: 84596190
• Net weight: 0 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Grease cartridge LHL - X100-7
• Software DXF reader for SIEMENS SINUMERIK control systems
• Software Top surface for SIEMENS SINUMERIK control
• Starter kit SK40 / DIN 69871

Equipment options

• Laser measurement system BLUM NT 2A
• 3D probe Renishaw OMP 60
• Collision Avoidance ECO for 828D V4.8
• Double-arm gripper tool changer 48 tool slots
• Double-arm gripper tool changer 60 tool slots
• Internal spindle cooling CTS 20 bar Grundfos high pressure
• Internal spindle cooling CTS 70 bar external
• Internal spindle cooling CTS 70 bar Grundfos high pressure
• Laser system for tool measurements Renishaw TS 27R
• Laser system Renishaw NC 4
• Measuring system Blum TC52
• Roof for engine room
