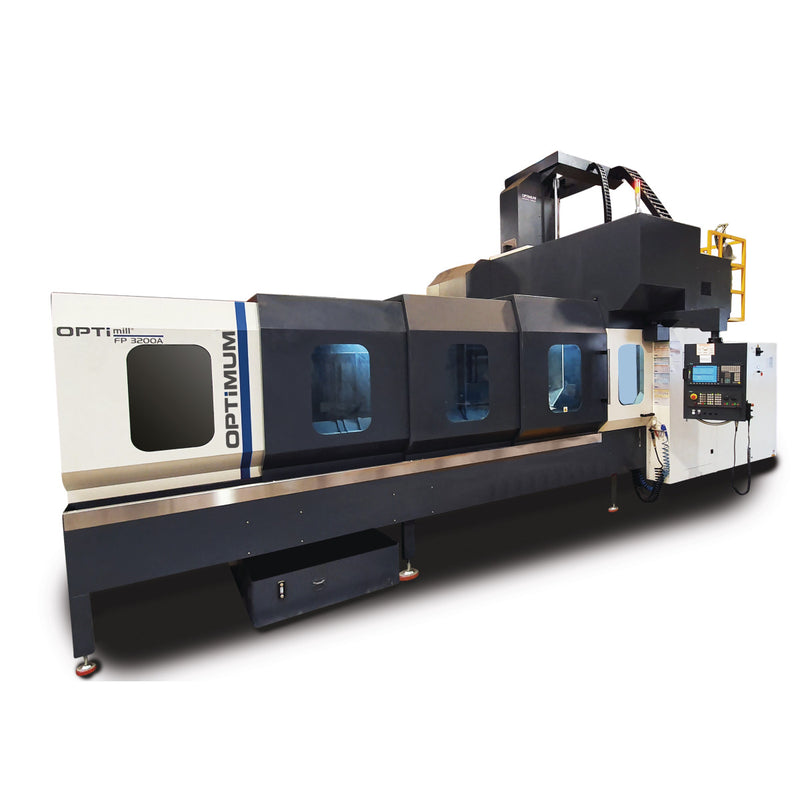

Optimum (3511630) CNC portal Milling Machine OPTImill FP 3200

Description

• Perfect structures and robust construction guarantee maximum rigidity and stability.
• All main components - bed, work table, column, crossbeam, saddle and headstock are made of high-quality MEEHANITE® quality castings
• Generously dimensioned guides in the X, Y and Z axes
• All guideways are hardened and ground (HRC50 -HRC55).
• Thexand Y axes are equipped with with roller linear guide. As a result, the axes move with the highest precision even at high speed.
• Greatest machining accuracy and high damping thanks to wide, adjustable flat guides of the Z-axis for high drilling and milling performance with high spindle output torque
• Hardened and precision ground recirculating ball spindles mounted in high-precision bearings in all three axes for high rapid traverse speeds
• Cooling of the main spindle gear (gears, bearings, spindle) through an oil circulation system. Reduction of thermal expansion
• Operating status display (end of work light)
• Axle covers
• Work lamp
• Air pistol/water pistol
• Heat exchanger
• Spindle holder SK50 with a maximum spindle speed of 8,000 rpm with 2-stage gear for high precision
• Pneumatic counterbalance of the Z-axis ensures very high reliability and stability while multiple axes work at the same time. The SCBS system does not require an additional power supply or drive. This balance system achieves high speed and high processing precision
• Complete machine cladding with wide opening doors for ergonomic workpiece handling
• Automatic lubrication system with pressure control system
• Separation system for lubricating oil and coolant
• Installation elements

Technical data

Dimensions and weights

• Length (product) approx.: 8130 mm
• Width/depth (product) approx.: 4500 mm
• Net weight approx.: 21000 kg

Fast motion speed

• Fast motion speedxaxis: 16000 mm/min
• Fast motion speed Y axis: 20000 mm/min
• Fast motion speed Z axis: 20000 mm/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Milling table horizontal

• Horizontal milling table length: 3200 mm
• Horizontal milling table width: 1200 mm
• Min. clearance vertical spindle - horizontal milling table: 50 mm
• Max. clearance vertical spindle - horizontal milling table: 900 mm
• Horizontal milling table T-groove size: 22 mm
• Horizontal milling table T-groove number: 7
• Horizontal milling table T-groove spacing: 150 mm
• Horizontal milling table max. load bearing capacity: 8000 kg
• Distance between columns: 1400 mm

Precision

• Repetition accuracy: ± 0.008 mm
• Positioning accuracy: ± 0.008 mm

Cooling lubricant system

• Cooling lubricant system tank capacity: 900 l

Pneumatic connection

• Pneumatic connection operating pressure: 6 bar

Travel

• Travelxaxis automatic: 3200 mm
• Travel Y axis automatic: 1400 mm
• Travel Z axis automatic: 850 mm
• Max. distance spindle to column: 404 mm

Vertical spindle

• Vertical spindle spindle chuck: SK 50 DIN 69871
• Vertical spindle speed range: 8000 min¯¹
• Explanation vertical spindle speed range: Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
• Vertical spindle drive motor output continuous operation S1: 15 kW
• Verticle spindle drive motor output S6-30 % operation: 22,5 kW
• Vertical spindle torque drive motor continuous operation S1: 126 Nm
• Verticle spindle torque drive motor S6-30 % operation: 380 Nm

Feed force

• Feed force X-axis: 14,4 kN
• Feed force Y-axis: 28,9 kN
• Feed force Z-axis: 28,9 kN

Feed motor torque

• Feed motor torquexaxis continuous operation S1: 48 Nm
• Feed motor torque Y axis continuous operation S1: 48 Nm
• Feed motor torque Z axis continuous operation S1: 48 Nm

Turret

• Tool changer design: Double arm gripper
• Number of tool slots: 32 Tools
• Max. tool diameter adjacent slots free: 250 mm
• Max. tool diameter: 160 mm
• Max. tool length: 350 mm
• Max. tool weight: 15 kg

Electrical connections

• Total rated value: 50 kVA

Control

• Control type: Sinumerik 828D
• System software: SW 26x
• CNC memory: 5 MB
• Set change time: 2 ms
• Look Ahead: 100
• Number of tools: 256

Transport info

• EAN: 4030635044595
• Customs number: 84596190
• Net weight: 0 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• 3D printing interface
• Starter kit SK50/DIN 69871

Equipment options

• 3-D probe Blum ZX-Speed
• 90° angular milling head
• Air conditioning
• Internal spindle cooling CTS - 20 bar external
• Internal spindle cooling CTS - 20 bar power unit internal
• Internal spindle cooling CTS - 70 bar external
• Laser system for tool measurements Renishaw OMP 60
• Laser system for tool measurements Renishaw TS 27R
• Laser system for tool measurements Renishaw TS 27R
• Linear guide
• Milling head Automatic indexing B and C axis
• Roof for engine room FP 3200
• Roof for engine room FP 4200
• Tool changer 40 tool slots
• Tool changer 60 tool slots
• Universal measuring probe Blum TC62
